Hydraulic High Pressure Directional Valve Wheel Conveyors Valve 3 Ways Manual Control

China Hydraulic High Pressure Directional Valve Wheel Conveyors Valve 3 Ways Manual Control supplier
Hydraulic High Pressure Directional Valve Wheel Conveyors Valve 3 Ways Manual Control supplier Hydraulic High Pressure Directional Valve Wheel Conveyors Valve 3 Ways Manual Control supplier Hydraulic High Pressure Directional Valve Wheel Conveyors Valve 3 Ways Manual Control supplier Hydraulic High Pressure Directional Valve Wheel Conveyors Valve 3 Ways Manual Control supplier

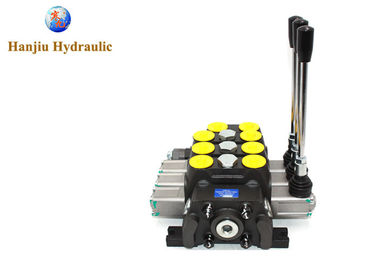

Large Image :  Hydraulic High Pressure Directional Valve Wheel Conveyors Valve 3 Ways Manual Control

Product Details:

Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: DCV100

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T
Supply Ability: 300000 sets per year
Contact Now
Detailed Product Description
Model No.: 3p100 Warranty: 12-18 Months
Spool: 1, 2, 3, 4, 5, 6, ... Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Spool Function: O/Y/A Oil Ports: G1/2,G1,G3/8

hydraulic manufacturing high pressure directional valve wheel conveyors valve 100l/min 3ways manual control





DCV directional control valve have the features of high pressure, compact construct, stable over load valve
performance and high universality.It is widely used on construction machine,sanitation vehicle, drilling machine, special purpose vehicle, etc.

Like mobile crushers,mobile screens,crusher screen ,track pugmill mobile cement silo, track blender , track conveyors,wheel conveyors, feed hoppers,conveyor systerms, truck mounted cranes,hoists, grab bucket cranes....

  • Auxiliary valve:over load valve, anti-cavitation valve,combined valves, etc.
  • Spool function:A, O, Y, P, etc.
  • Control type:manual, pneumatic, electro-hydraulic, electro-pneumatic, etc.
  • Circuit type:parallel,series-parallel
  • C port(oil bridge) as hydraulic source for other parts
  • Structure:Sectional



Specificatioins



Norminal Flow
 100L/min
Max Flow
 100L/min
Max Pressure
35mpa
Control Type
manual, pneumatic, hydraulic, electro-hydraulic
Allowed back pressure
≤1 mpa
Oil port size
customizable
operating range 15-75mm2/s
viscosity min 12mm2/s, max 400mm2/s
ambient temperature range -40-80°C
structure sectional 1-12sections


oil ports

BSP Thread Metric thread US standard UNF thread US standard NTP thread
code Thread size code Thread size code Thread size code Thread size
G04 G1/4 M16 M16X1.5 U08 1/2-20UNF N04 NPT1/4
G06 G3/8 M18 M18X1.5 U10 5/8-12UNF N06 NPT3/8
G08 G1/2 M20 M20X1.5 U12 3/4-16UNF N08 NPT1/2
G12 G3/4 M22 M22X1.5 U16 1-12UNF N12 NPT3/4
G16 G1 M27 M27X2 U22 11/8-12UNF N16 NPT1
    M33 M33X2



spool functional

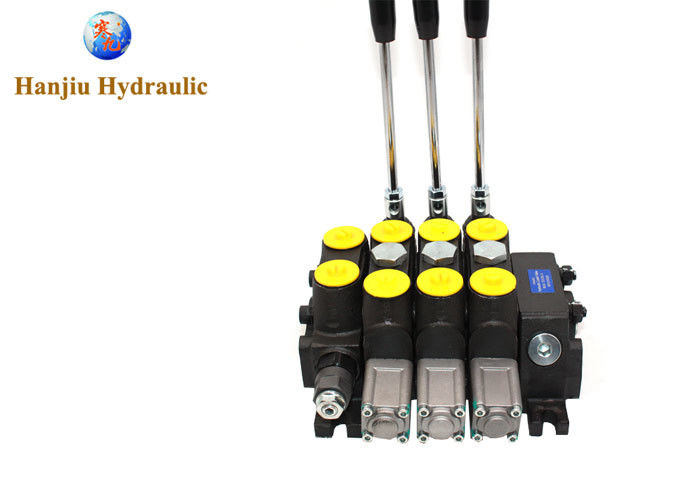

Hydraulic High Pressure Directional Valve Wheel Conveyors Valve 3 Ways Manual Control

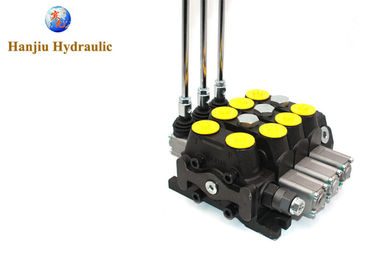

Hydraulic High Pressure Directional Valve Wheel Conveyors Valve 3 Ways Manual Control

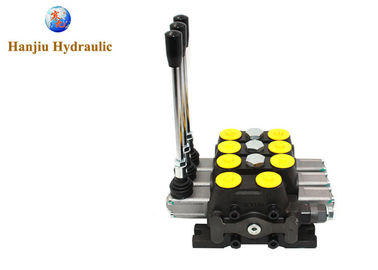

Hydraulic High Pressure Directional Valve Wheel Conveyors Valve 3 Ways Manual ControlHydraulic High Pressure Directional Valve Wheel Conveyors Valve 3 Ways Manual Control



Hanjiu:  a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.

We are proud of being your solution partner in hydraulics.



Strong at alternative , Eaton Char-lynn, Parker, M+S, industiral, mobile, agri, marine parts,

able to support your business with more & better hydraulic solutions



Hydraulic High Pressure Directional Valve Wheel Conveyors Valve 3 Ways Manual Control
