Parker Torqmotor Gerotor Pump Motor TG Series TG0785MS050AAAA Spline Shaft

China Parker Torqmotor Gerotor Pump Motor TG Series TG0785MS050AAAA Spline Shaft supplier
Parker Torqmotor Gerotor Pump Motor TG Series TG0785MS050AAAA Spline Shaft supplier Parker Torqmotor Gerotor Pump Motor TG Series TG0785MS050AAAA Spline Shaft supplier Parker Torqmotor Gerotor Pump Motor TG Series TG0785MS050AAAA Spline Shaft supplier

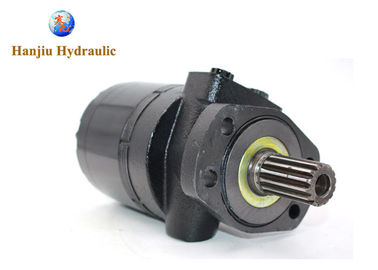

Large Image :  Parker Torqmotor Gerotor Pump Motor TG Series TG0785MS050AAAA Spline Shaft

Product Details:

Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: BMER-2-750

Payment & Shipping Terms:

Minimum Order Quantity: 30 Sets
Price: Negotiable
Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T
Supply Ability: 300000 sets per year
Contact Now
Detailed Product Description
Type: Hydraulic Orbital Wheel Motor Speed: 100rpm-120rpm
OEM: Available Displacement: 750cc
Warranty: 12-18 Months Application: Construction Machines, Heavey Machines, Rollers Etc.
Torque: 1050N.M-1180N.M Output: 8kw-10.0kw
Pressure: 12mpa-14mpa

Parker Torqmotor Gerotor Pump Motor TG Series TG0785MS050AAAA spline shaft

Hanjiu High Torque BMER-750 Replaces American Parker Conical Cycloidal Hydraulic Oil Motor
BMER series motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed , and can keep high volume efficiency. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.

Main Specifications:

Type

BMER

125

BMER

160

BMER

200

BMER

230

BMER

250

BMER

300

BMER

350

BMER

375

BMER

475

BMER

540

BMER

750

Geometric displacement

(cm3 /rev.)

118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N*m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90





1, model number BMER-2-750
2, displacement  750ml/r
3, flange magneto Mount
4, shaft 1.25'' (31.75) mm splined key
5, oil port 7/8-14 o-ring
6, drain case ---
7, rotation Standard
8, paint Black
9, replace Parker TE TG TF


Parker Torqmotor Gerotor Pump Motor TG Series TG0785MS050AAAA Spline ShaftParker Torqmotor Gerotor Pump Motor TG Series TG0785MS050AAAA Spline ShaftParker Torqmotor Gerotor Pump Motor TG Series TG0785MS050AAAA Spline Shaft

Parker Torqmotor Gerotor Pump Motor TG Series TG0785MS050AAAA Spline Shaft


Applications:

HANJIU  Motor Orbital type is one type of high torque low speed hydraulic motors, with high efficiency and long life. Which can be widely used for kinds of Rollers, Heavey Machines, Construction Machines etc. To know more details, like technical data or drawing, pls directly contact us or to download from our main website.

My factory take the good faith first, quality first for the purpose, from the employee on-boarding, raw materials into the factory, from parts processing, assembly proposal until products, has a relatively perfect system of product quality. And through CE certification. Our factory is dedicated to the establishment of an internationally renowned brand, looking forward to the long-term cooperation with more demand of hydraulic products.

Hanjiu: Hydraulic components for any hydraulic system, our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.
