Product Details:
Payment & Shipping Terms:
|
| Type: | DCV Hydrauic Valve | Structure: | Sectional |
|---|---|---|---|
| Nominal Flow: | 20 Liters To 200 Liters | Max Pressure: | 350 Bar |
| Operating Range: | 100 - 315 Bar | Temperature Range: | -40 °C ~ 80 °C |
| Control: | Pneumatic | ||
| High Light: | hydraulic monoblock valves,hydraulic directional valve |
||

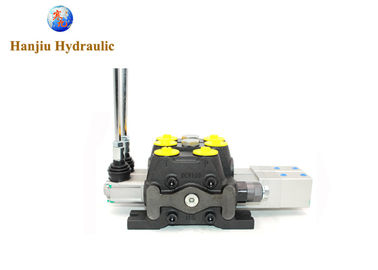

High pressure pneumatic operated DCV hydraulic directional control valve/valves for excavator, forklift, truck, crane
Quick details of DCV100-2
| Nominal flow rate | 100 l/min |
| Max. pressure | 350 bar 5076 psi |
| Operating range | 15 - 75 mm2/s |
| Ambient temperature range | -40 °C ~ 80 °C |
| Structure | Sectional (1-12 sections) |
Directional control valves (DCVs) are one of the most fundamental parts of hydraulic and pneumatic systems. DCVs allow fluid flow (hydraulic oil or air) into different paths from one or more sources. DCVs will usually consist of a spool inside a cylinder which is mechanically or electrically actuated. The position of the spool restricts or permits flow, thus it controls the fluid flow
Charactor of DCV valves:
DCV directional control valve have the features of high pressure, compact construct, stable over load valve performance and high universality.
Optional valve:relief valve, over load valve, anti-cavitation valve.
Spool function:A, O, Y, P, etc.
Control type:manual, pneumatic, electro-hydraulic, electro-pneumatic, dual control, etc.
Circuit type:parallel ,series-parallel
C port (oil bridge) as hydraulic source for other parts
Sectional structure
Hanjiu customizes and designs products for different kinds of companies: Hydraulic Resellers, Hydraulic Distributors, Hydraulic Machines Manufacturers, Hydraulic Training, Hydraulic Fluid Tech Research, Hydraulic Repairing, Fluid Power Manufacturers, Hydraulic Systems Solutions, Fluid Power Solutions etc.
Available manual, pneumatic control, electric and pneumatic control ,hydraulic and electric control.
PARAMETERS
| Nom. Pressure (MPa) | Max.Pressure (MPa) | Nom. Flow rate (L/min) | Back Pressure(MPa) | hydraulic oil | ||
| Tem.rang (ºC) | Visc.rang (mm2/S) | filtrating accuracy (μm) | ||||
| 35 | 31.5 | 200 | ≤1 | -40~+80 | 10~400 | ≤10 |
| Flow rate | 100l/min |
| Spool function | Cylinder, motor spool, single acting |
| Thread | G1/2 |
| Control way | Spring Control |
| Max pressure | 315bar. |
| Spool diameter | 16mm |
| DCV valve | Flow | Nom. Pressure | Spool |
| DCV 20 | 20L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 40 | 40L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 45 | 45L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 60 | 60L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 100 | 100L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 140 | 140L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 200 | 200L/Min | 100 ~315 BAR | 1-12 sections |
Application:
This product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.
