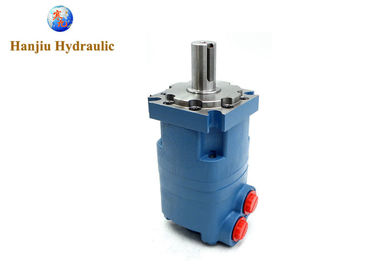

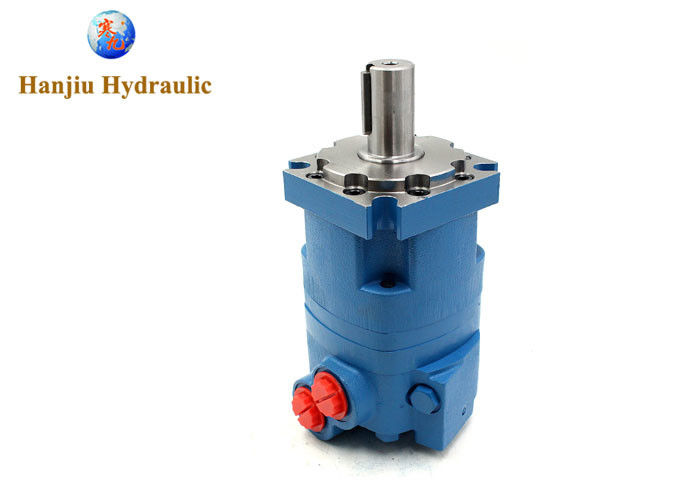

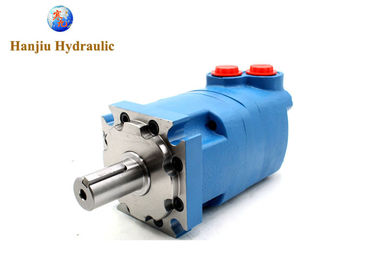

Aftermarket Char-Lynn (Eaton) 109-1100-006 4000 Series Standard Flange

Aftermarket Char-Lynn (Eaton) 109-1100-006 4000 Series Standard Flange
Aftermarket Char-Lynn (Eaton) 109-1100-006 4000 Series Standard Flange Aftermarket Char-Lynn (Eaton) 109-1100-006 4000 Series Standard Flange Aftermarket Char-Lynn (Eaton) 109-1100-006 4000 Series Standard Flange

Large Image :  Aftermarket Char-Lynn (Eaton) 109-1100-006 4000 Series Standard Flange

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: 109-1100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: Contact seller to ask
Packaging Details: Box, Pallet
Delivery Time: 35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 pieces per year
Detailed Product Description
Item: Hydraulic Motor Type: Disc Valve
OEM #: 109-1100 Aftermarket #: 109-1100
Series: 4000 Flange: 4 BOLT SAE B MOUNT
Displacement: 6.7 IN3 Max GPM: 20
High Light:

Hydraulic Disc Valve Motor

,

20 gpm Hydraulic Motor



New Aftermarket Char-lynn (Eaton) 109-1100-006 4000 series standard flange







Overview:



  • This is a replacement for Eaton 109-1100
  • Form, fit, and function the same, at a substantial savings
  • All units are double tested when shipment, warranty service is also provided based on following conditions:
    • 12 months from the date of commission OR
    • 13 months from the date of delivery to the purchaser OR
    • 1000 operating hours





Specifications:



Char-lynn Number Cubic Inch Disp. Shaft Keyway Max GPM Max RPM Max PSI Torque (lb-in) at Max PSI Rotation
109-1100 6.7 1-1/4" 5/16" 20 697 3000 2850 Left and Right









More Eaton aftermarket motor available



EATON 104-3358-006
EATON 104-1029-006
EATON 104-1035-006
EATON 104-1422-006
EATON 104-3001-006
EATON 104-3130-006
EATON 105-1308-006
EATON 105-1411-006
EATON 101-1028
EATON 101-1030
EATON 101-1032
EATON 104-1027
EATON 104-1028
EATON 104-1228
EATON 104-1068
EATON 104-1015
EATON 104-1017
EATON 112-1068
EATON 119-1030
EATON 119-1031







Eaton similar type motors are available we belows:



  • J (129-)
  • H (101-)
  • S (103-)
  • T (158-)
  • W (162-)
  • 2000 (104-, 105-, 106-, 193-)
  • 4000 (109-, 110-, 111-)
  • 6000 (112-, 113-, 114-)
  • 10000 (119-)







Most complete range of Eaton 2000 , 4000, 6000, 10000 series aftermarket motors

Applications: Mowing, snow removal, sprayer, trencher and wood products

sometimes Item is in stock, sometimes not, when there is no a stock it needs 25 days to produce new
