151B3100 - Orbital Motor OMV 315 - Cylindrical 50mm - Standard - G1 - G1/4

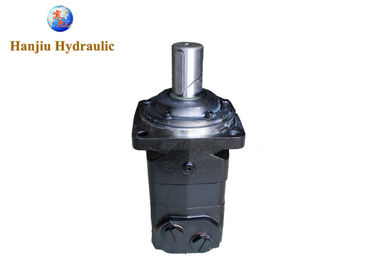

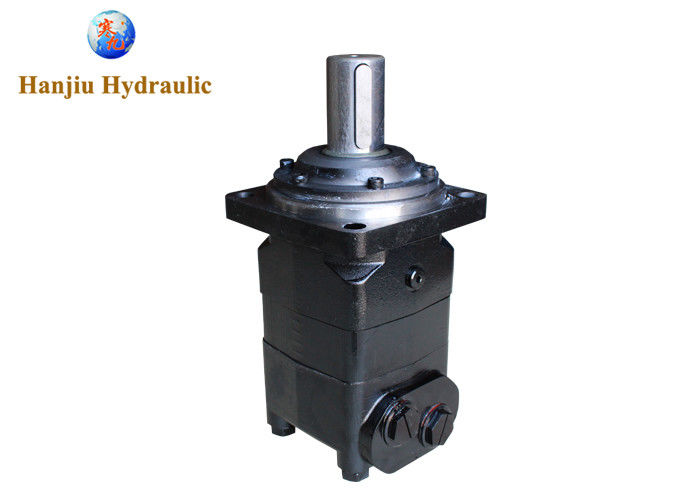

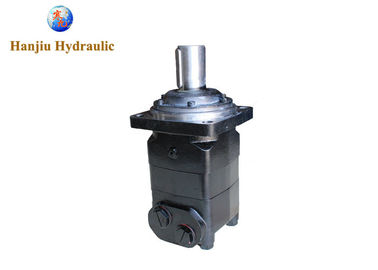

Large Image : 151B3100 - Orbital Motor OMV 315 - Cylindrical 50mm - Standard - G1 - G1/4

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMV-315-4AD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Ask the seller
Packaging Details:	1pc/carton/51x25x25cm.
Delivery Time:	19 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000 sets per year

Contact Now

Detailed Product Description

Product:	Orbital Motor	Type:	Oil Motor
Feature:	Danfoss Equivalent	OEM:	151B3100
Displacement:	315 Ml/r	Flange:	4 Hole
Ports:	G1 - G1/4	Shaft:	Cylindrical 50mm
High Light:	4 hole Orbital Motor , 315 ml / r Orbital Motor

151B3100 - Orbital Motor OMV 315 - Cylindrical 50mm - Standard - G1 - G1/4

Overview:

This is a replacement for Danfoss 151B3100
Form, fit, and function the same, at a substantial savings
All units are double tested when shipment, warranty service is also provided based on following conditions:
- 12 months from the date of commission OR
- 13 months from the date of delivery to the purchaser OR
- 1000 operating hours

Specifications:

Danfoss Number	Disp.	Shaft	Keyway	Port	Drain
151B3100	315	50mm	A14X9X70	G1	G1/4

Main Specifications:

Type		BMV 315	BMV 400	BMV 500	BMV 630	BMV 800	BMV 1000
Geometric displacement (cm3 /rev.)		333	419	518	666	801	990
Max. speed (rpm)	cont.	510	500	400	320	250	200
Max. speed (rpm)	int.	630	600	480	380	300	240
Max. torque (N·m)	cont.	920	1180	1460	1660	1880	2015
	int.	1110	1410	1760	1940	2110	2280
	peak	1290	1640	2050	2210	2470	2400
Max. output (kW)	cont.	38	47	47	40	33	28.6
Max. output (kW)	int.	46	56	56	56	44	40
Max. pressure drop (MPa)	cont.	20	20	20	18	16	14
	int.	24	24	24	21	18	16
	peak	28	28	28	24	21	18
Max. flow (L/min)	cont.	160	200	200	200	200	200
Max. flow (L/min)	int.	200	240	240	240	240	240
Weight (kg)		31.8	32.6	33.5	34.9	36.5	38.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Danfoss similar type motors are available we belows:

DANFOSS Hydraulic Motors
