| Features: | Eaton Replacement | Item: | LSHT Motors |
|---|---|---|---|
| Type: | Orbital | Series: | 109-1106-006 |
| Displacement: | 393.29 CM3/R | Manufactuerer: | Hanjiu |
| Origin: | China | Replacement Series: | BMK4 |
| High Light: | eaton char lynn hydraulic motor,393.29CM3/R char lynn hydraulic motor,BMK4 char lynn hydraulic motor |
||
Details

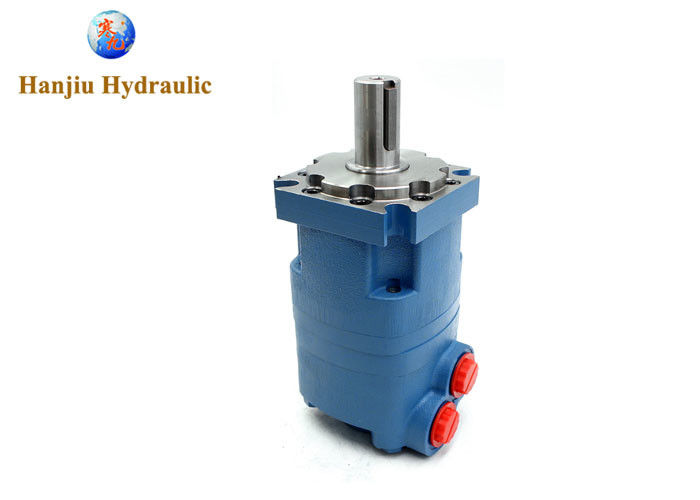

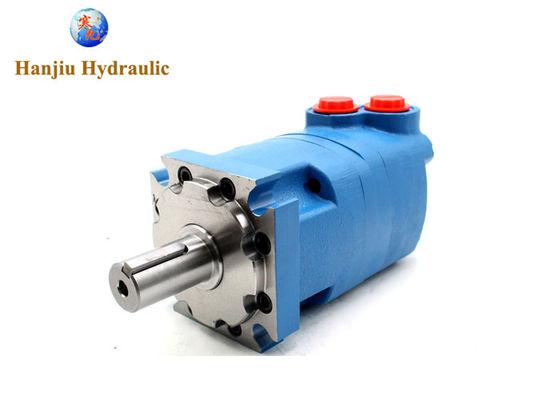

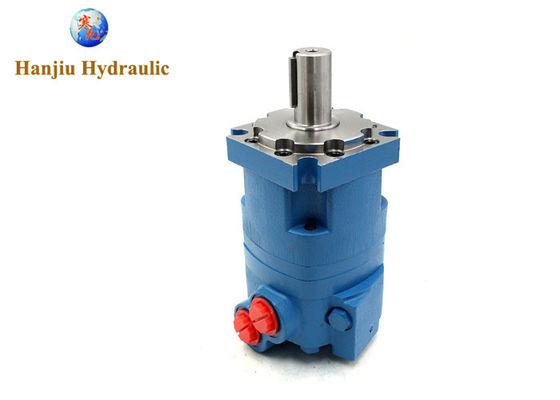

Hydraulic Motor EATON HYDRAULIC MOTOR 393.29CM3/R 109-1 106-006, with advantage: Disc valve. Design for high performance, double roll tapered roller bearings for high side load, Up to 8600 INC Lb output torque
| Product Name | HYDRAULIC MOTOR 393.29CM3/R 109-1106-006 |
| Manufacturerer | Hanjiu Technology made alternative |
| Net Weight | 16.6 KG |
| Dimension Unit | 25.6X 13.2X 11.8 CM |
| Type | Orbital |
| Features | Disc valve design for high performance |
| Specification | Mount Type: 4 bolt, SAE-B Displacement: 24 INC3/r Shaft Size: 1 1/4 X 5/16 INC Port Size & Location: #12- SAE side Max. Pressure: 2750 Psi Max. Speed: 239 Rpm Max. Torque: 8240 INC Lb Max. Flow: 25 Gpm |
| Item | Hydraulic motors |
We offers replacement hydraulic motor of 109 4000 SERIES. All units are backed with an industry leading 1-year warranty. Resellers and manufactures make sure to contact us for extended discounts. By email Alyssa@sjzhjsm.com or whatsapp 0086 13831101542
