| Features: | Danfoss, White, Eaton Replacement | Item: | LSHT Motors |
|---|---|---|---|
| Type: | Orbital | Series: | OMT |
| Displacement: | 230 Cm3/r | Manufactuerer: | Hanjiu |
| Origin: | China | Replacement Series: | BMTJ |
| High Light: | bearingless motor With Reducer,Heavy Conveyor bearingless motor,Crushing bearingless motor |
||

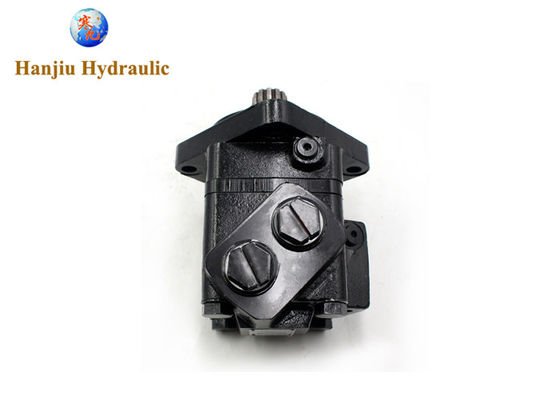

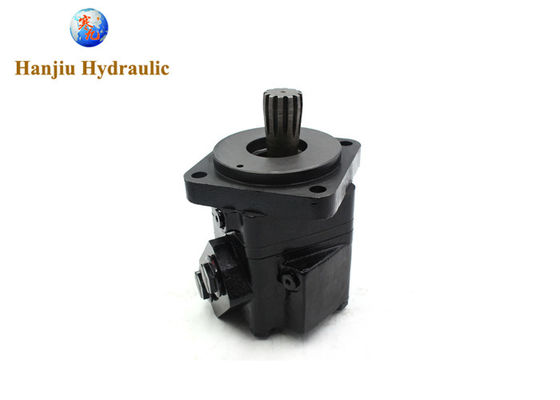

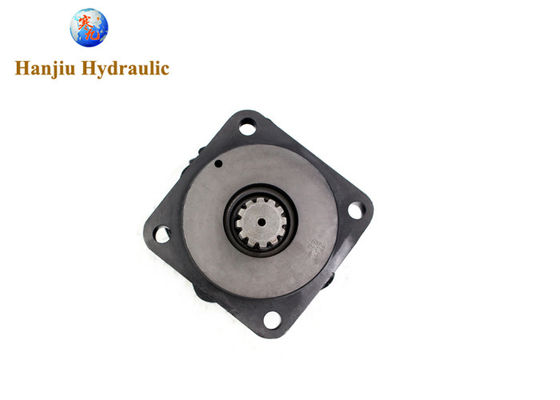

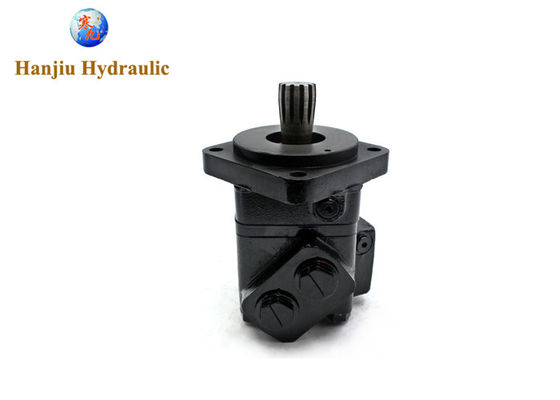

This bearingless motor has the same drive components as the standard and wheel motors (with the exception that the motor is assembled without the output shaft, bearings and bearing housing). The bearingless motor is especially suited for applications such as gear boxes, winch drives, reel and roll drives. Bearingless motor applications must be designed with a bearing supported internal spline to mate with the bearingless motor drive. Product designs using these hydraulic motors provide considerable cost savings.
The following is the introduction of the product:
| Model number: | BMTJ-230-JSF5 |
|
Geometric
displacement (cm3 /rev.)
|
232.5
|
|
Max. speed (rpm)
|
cont. 536
int. 643
|
|
Max. torque (N•m)
|
cont. 670
int. 821
peak 958
|
|
Max. flow (L/min)
|
cont. 125
int. 150
|
Most popular brands currently are Danfoss, Char lynn, Parker, Brevini, Hanjiu, M+S, Walvoil, Rexroth, Cassapa, etc., each with its own merits. Market's becoming ever more competitive, many people tend to look for quality and better price both. Why more and more choose HANJIU is because it has obvious advantages over other brands in terms of delivery, service, quality and profit rate
Hanjiu, your hydraulic motor expert, for any hydraulic motor demand please contact us
