| Product Name: | High Efficiency Hydraulic Pump | Pressure Level: | 25MPa |
|---|---|---|---|
| Displacement (ml/r): | 6,8.4,10.8,14.4,16.8,19.2,22.8,25.2 | Applications: | Hydraulic Power,construction Machines,plastic Machines |
| Direction Of Rotation: | Left , Right | Ports: | 7/8 - 14UNF-2B, 1 1/16 - 12UN - 2B |
| High Light: | 25MPa turolla gear pump,high pressure turolla gear pump,25MPa turolla pump |
||

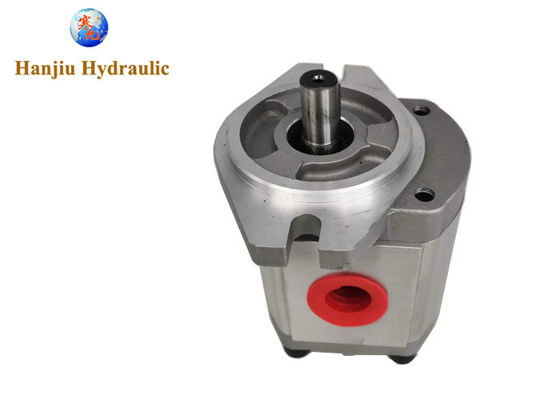

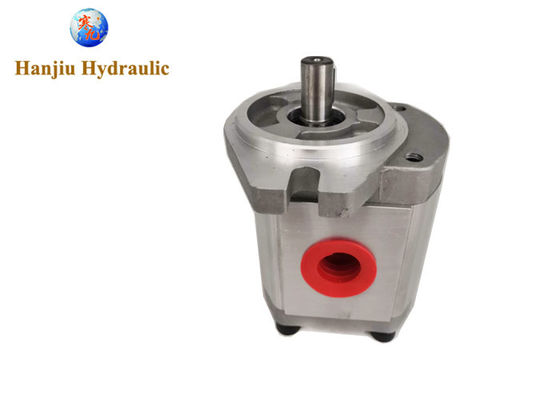

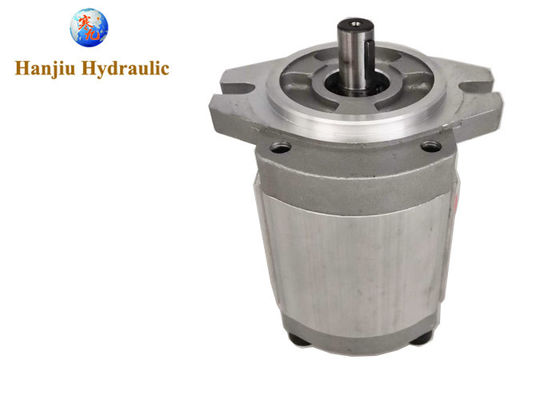

High Pressure Turolla Group 2 Gear Motor SNM 2 key shaft 0.51In3,3600psi Gear pump
The hydraulic gear pump produced by Hanjiu is widely used in various kinds of machinery, such as tractors, excavators, forklifts and other projects as well as agricultural machinery, and is professionally designed for well-known brands of imported machinery, such as Ford, Kubota, Lovol and others.
Main Specifications:
| TYPE | DISPLACEMENT | flow at 1500rev/min | max pressure | ||
| P1 | P2 | P3 | |||
| GHM2A-D-6 | 4.5 | 6.4 | 280 | 290 | 310 |
| GHM2A-D-9 | 6.4 | 9.1 | 280 | 290 | 310 |
| GHM2A-D-10 | 7 | 10 | 280 | 290 | 310 |
| GHM2A-D-13 | 9.6 | 13.7 | 280 | 290 | 310 |
| GHM2A-D-16 | 11.5 | 16.4 | 280 | 290 | 310 |
| GHM2A-D-20 | 14.1 | 20.1 | 260 | 270 | 290 |
| GHM2A-D-22 | 16 | 22.8 | 260 | 270 | 290 |
| GHM2A-D-25 | 17.9 | 25.5 | 260 | 270 | 290 |
| GHM2A-D-30 | 21.1 | 30.1 | 230 | 240 | 260 |
| GHM2A-D-34 | 23.7 | 33.7 | 230 | 240 | 260 |
| GHM2A-D-40 | 28.2 | 40.1 | 200 | 210 | 230 |
How to order?
| GHM2 | TYPE | ROTATION | SIZE | SHAFT | PORTS |  |
| omit | 6 | |||||
| A | D COLCKWISE | 9 | ||||
| A3 | S COUNTER CLOCKWISE | 10 | ||||
| BK1 | R REVERSIBLE | 13 | ||||
| BK2 | 16 | |||||
| BK4 | 20 | |||||
| BK7 | 22 | |||||
| 25 | ||||||
| 30 | ||||||
| 34 | ||||||
| 40 |
