Disc Valve Motor 24 Cu In/Rev, 104-1229-006 High Seal Kits 1 1/4 Inch - 14 T Splined Shaft

Disc Valve Motor 24 Cu In/Rev, 104-1229-006 High Seal Kits 1 1/4  Inch - 14 T Splined Shaft
Disc Valve Motor 24 Cu In/Rev, 104-1229-006 High Seal Kits 1 1/4  Inch - 14 T Splined Shaft Disc Valve Motor 24 Cu In/Rev, 104-1229-006 High Seal Kits 1 1/4  Inch - 14 T Splined Shaft Disc Valve Motor 24 Cu In/Rev, 104-1229-006 High Seal Kits 1 1/4  Inch - 14 T Splined Shaft

Large Image :  Disc Valve Motor 24 Cu In/Rev, 104-1229-006 High Seal Kits 1 1/4 Inch - 14 T Splined Shaft

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: BMK2 MOTOR
Payment & Shipping Terms:
Minimum Order Quantity: 10pieces
Price: Negotiable
Packaging Details: 2PCS IN ONE CARTON,800PCS IN 20'FCL
Delivery Time: 25-30DAYS
Payment Terms: T/T, D/P, D/A, L/C
Supply Ability: 300000PCS PER YEAR
Detailed Product Description
Features: Match /M+S/Eaton/Char_lynn Application: Harvesting Equipment,sweeper Machines
Displacement: 400cc Max.speed(rpm): Cont.191rpm/int.287rpm
Max.torque(N.m): Cont.775N.m/int.925N.m Max.pressure Drop: Cont.15.5Mpa/int.17Mpa
Oil Temperature: Normal-35℃-80℃ Viscosity: 42-74mm2/s
High Light:

400cc disc valve motor

,

disc valve motor 400cc

,

sweeper machines disc valve motor

Disc Valve Motor 24 Cu In/Rev, 104-1229-006 high seal kits 1 1/4 Inch - 14 T Splined shaft


Brand HANJIU
Displacement 400cc
Product Type Simple product
Features Blue Paint
Mount  2Bolt Standard shaft
Ports 7/8-14 St.Thd. O-Ring
Supplier Part Number 104-1229-006
Product Weight 24.00 lbs




Main specification



TYPE

BMK2
125CC

BMK2

160CC

BMK2
200CC

BMK2
250CC

BMK2
315CC

BMK2
400CC

BMK2

475CC

Displacement(ml/r) 129.8 156.8 193.4 242.5 304.3 390.8 485

Max.Pressure.Drop(Mpa)
cont. 21 20.5 20.5 20.5 21 15.5 12
int. 31 26 26 26 24 17 14
peak. 31 31 31 31 31 20.5 17
Max.Torque(N.m) cont. 385 455 540 660 765 775 845
int. 560 570 665 820 885 925 930
Speed.Range(r/min) cont. 576 477 385 308 246 191 153
int. 720 713 577 462 365 287 230
Max.Flow(cont.)(L/min) cont. 75 75 75 75 75 75 75
int. 95 115 115 115 115 115 115
Weight(kg) 10 10.2 10.5 11 11.5 12 12.4

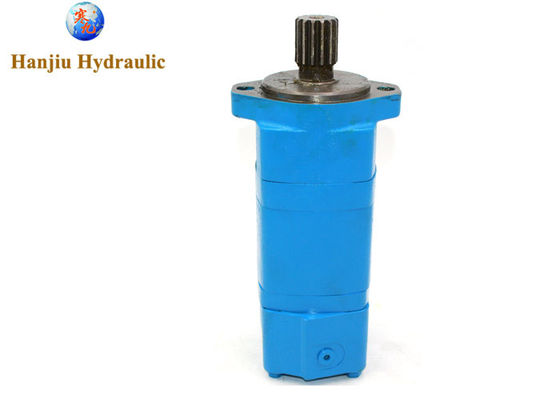

Disc Valve Motor 24 Cu In/Rev, 104-1229-006 High Seal Kits 1 1/4  Inch - 14 T Splined Shaft 0

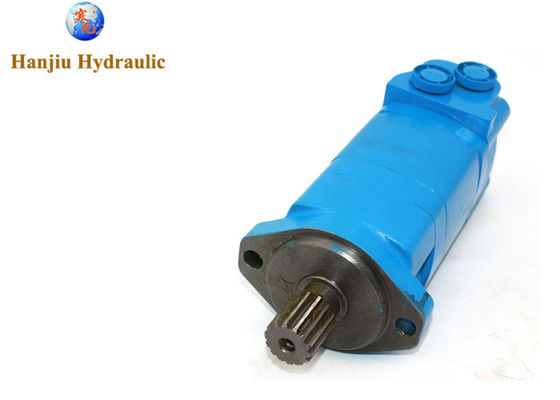

Disc Valve Motor 24 Cu In/Rev, 104-1229-006 High Seal Kits 1 1/4  Inch - 14 T Splined Shaft 1



Completely interchangeable charlynn 2000
104-1001
104-1002
104-1003
104-1004
104-1005
104-1006
104-1007
104-1143
104-1022
104-1023
104-1024
104-1025
104-1026
104-1027
104-1028
104-1228
104-1420


Applications
• Swing motor

• Brush Cutters & mowers

• Harvesting equipment

• Directional boring

• Turf equipment

• Skid Steer loaders

• Fairway mowers

• Harvesters

• Mowing

• Snow removal

• Sprayers

• Trencher

• Wood products

• Grinders and mixers

• Forestry equipment

• Irrigation reels

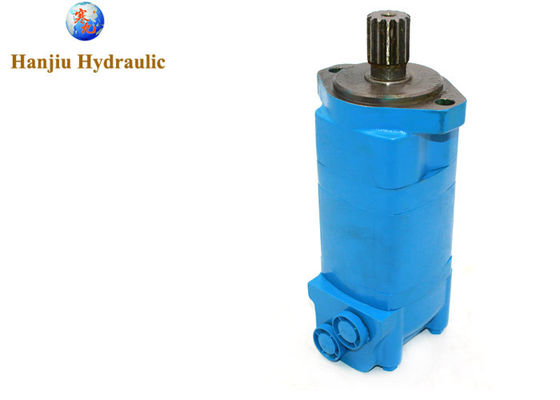

Disc Valve Motor 24 Cu In/Rev, 104-1229-006 High Seal Kits 1 1/4  Inch - 14 T Splined Shaft 2



The hydraulic motor is an actuator of the hydraulic system that converts the liquid pressure energy provided by the hydraulic pump into the mechanical energy (torque and speed) of its output shaft. Liquid is the medium that transmits force and motion. Hydraulic motors are mainly used in injection molding machinery, ships, hoists, construction machinery, construction machinery, coal mining machinery, mining machinery, metallurgical machinery, marine machinery, petrochemical, port machinery, etc.


Hydraulic motors are classified according to their type of construction and can be classified into gear type, vane type, plunger type and other types. According to the rated speed of the hydraulic motor, it is divided into two categories: high speed and low speed. A high-speed hydraulic motor with a rated speed higher than 500r/min is a low-speed hydraulic motor with a rated speed lower than 500r/min.


The basic types of high-speed hydraulic motors are gear, screw, vane and axial piston. Their main features are high speed, low moment of inertia, easy start and brake, and high sensitivity for adjustment (speed regulation and commutation). Usually high-speed hydraulic motor output torque is not large, so it is also called high-speed small torque hydraulic motor.
