| Item: | Motor Geroler | Model: | 6000 Series |
|---|---|---|---|
| Direction Of Rotation: | Reversible | Fastening: | 4 Bolts. |
| Maximum System Temperature: | 82ºC | Minimum Oil Viscosity: | 70 SUS |
| High Light: | char lynn geroler motor,6000 series geroler hydraulic motor,CE char lynn geroler motor |
||

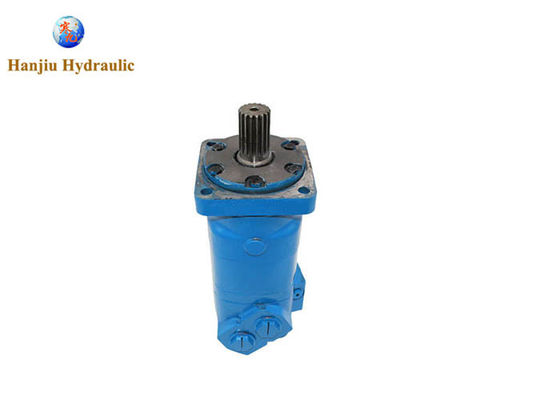

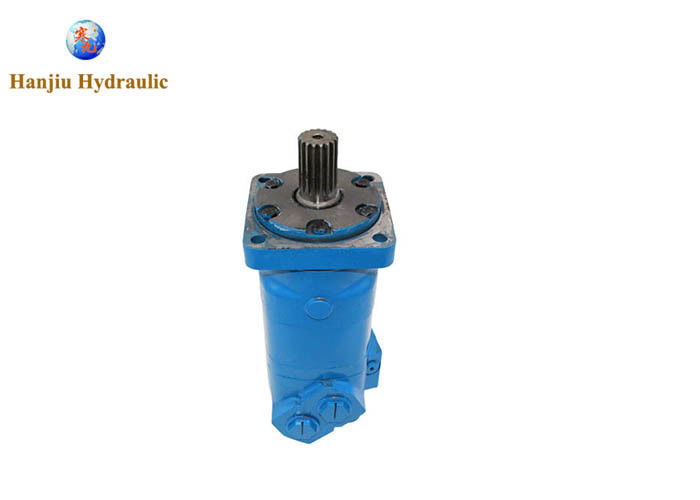

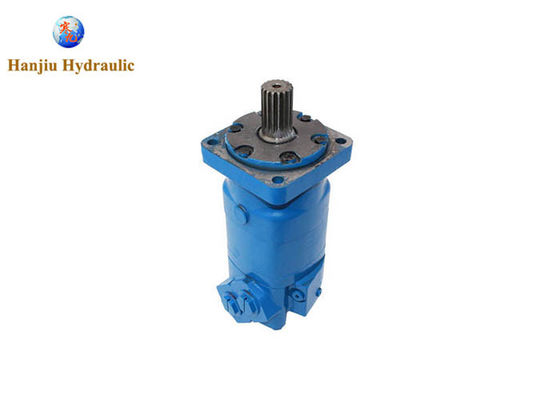

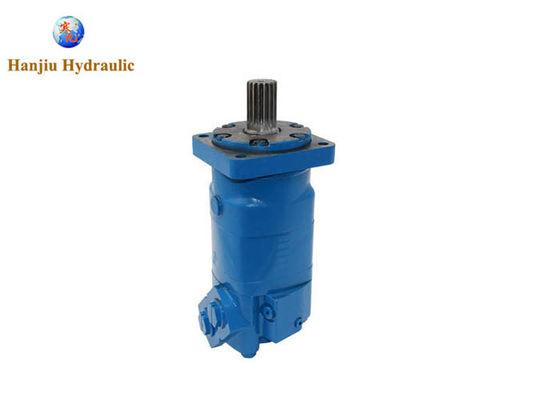

Char-Lynn disc Geroler motors 6000 series like for industrial machinery
6000 series motor
These motors are actuators widely used in industrial production lines in multiple areas and also in hydraulic applications and industrial machinery.
Geroler gear set designed with disc distribition flow and high pressure.
Canbe supplied the individual variant in operating multifunction in accordance with requirement of applications.
Description:
Reversible direction of rotation.
High radial loads on the axle, allow direct mounting of wheels or other elements.
Maximum system temperature 82ºC.
Minimum oil viscosity: 70 SUS.
Use 10 micron oil filters.
6000 series Motor Geroler
| Displ. cm3/r | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 |
| Max Speed rpm | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 |
| Flow l/min | 150/170 | 150/205 | 150/225 | 150/225 | 150/225 | 150/225 | 150/225 | 150/225 |
| Torque Nm | 565/840 | 710/1080 | 920/1325 | 1160/1625 | 1445/1880 | 1480/1890 | 1580/1880 | 1675/1860 |
| Discrption | ||
| Series 2.000 | ||
| Model | Displacement | Speed |
| Max. cont. | ||
| 104-1002 | 6,2 | 742 |
| 104-1023 | 6,2 | 742 |
| 104-1003 | 8,0 | 579 |
| 104-1024 | 8 | 576 |
| 104-1004 | 9,6 | 477 |
| 104-1025 | 9,6 | 477 |
| 104-1027 | 14,9 | 308 |
| 104-1026 | 11,9 | 385 |
| 104-1006 | 14,9 | 308 |
| 104-1027 | 14,9 | 308 |
| 104-1028 | 18,7 | 246 |
| 104-1007 | 305 | 246 |
| 104-1229 | 395 | 191 |
| Series 10.000 | ||
| Model | Displacement | Speed |
| Max. cont. | ||
| 119-1028 | 345 | 501 |
| 119-1029 | 480 | 354 |
| 119-1030 | 665 | 254 |
| 121-1013 | 665 | 254 |
| 119-1031 | 940 | 179 |
| 120-1027 | 665 | 254 |
| 120-1015 | 665 | 254 |
| Series H | ||
| Model | Displacement | Speed |
| Max. cont. | ||
| 101-1700 | 36 | 1021 |
| 101-1025 | 46 | 969 |
| 101-1705 | 59 | 953 |
| 101-1026 | 74 | 760 |
| 101-1035 | 97 | 585 |
| 101-1706 | 120 | 469 |
| 101-1028 | 159 | 353 |
| 101-1029 | 185 | 304 |
| 101-1030 | 231 | 243 |
| 101-1039 | 293 | 192 |
| 101-1031 | 293 | 192 |
| 101-1040 | 370 | 152 |
| 101-1032 | 370 | 152 |
A compact, highly efficient hydraulic motor is a key component of a hydraulic drive system. Hanjiu offers a wide variety of motors with unique performance characteristics which are designed for superior, efficient system performance. Contact us today to discuss your questions or application needs with our team.
