| Item: | Motor Geroler | Model: | 10000 Series |
|---|---|---|---|
| Fastening: | STANDARD | Port: | Staggered Ports |
| Shaft: | Straight | Pilot: | 127.0 |
| High Light: | 119-1028 geroler motor,Char Lynn 1000 Series geroler motor,Char Lynn geroler hydraulic motor |
||

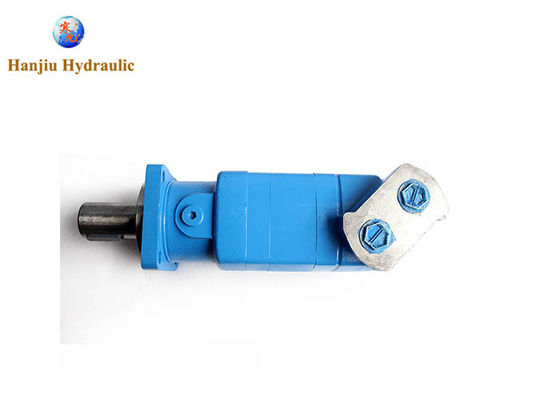

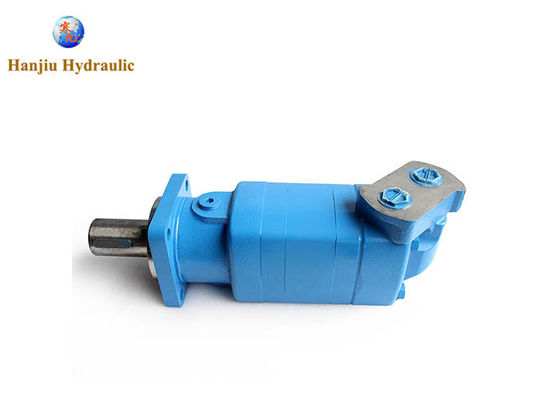

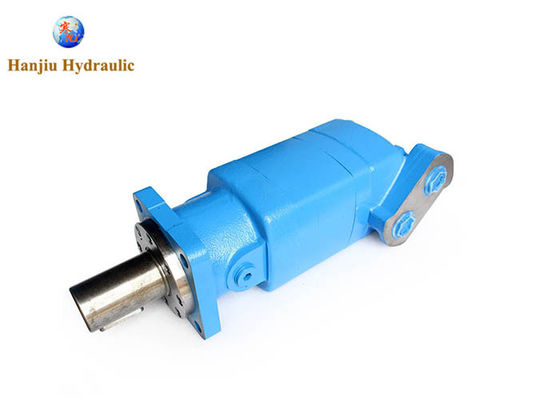

119-1028, Char-Lynn 10,00 Series Standard 4 bolt 57.15 Straight Shaft, SAE O-Ring Port
Description
This is the biggest disc valve motor of our line with up to 45 GPM and 24,000 in-lb of torque in continuous mode, this motor is powerful and yet provides good efficiency
| Specifications | |
| Geroler Element | 4 Displacements |
| Flow l/min [GPM] | 170 [45] Continuous** |
| 265 [70] Intermittent* | |
| Speed RPM | 501 Cont.** |
| 784 Inter.* | |
| Pressure bar [PSI] | 200 [3000] Cont.** |
| 270 [4000] Inter.* | |
| Torque Nm [lb-in] | 2700 [23910] Cont.** |
| 3440 [30460] Inter.* | |
Features
• High torque and flow
• Low pressure loss even in higher flows
Benefits
• High power density for demanding mobile and industrial applications
• Many options to draw from
Applications
• Boring
• Industrial
• Metal Forming
• Port Equipment
• Saw Mill
| Series 10.000 | ||
| Model | Displacement | Speed |
| Max. cont. | ||
| 119-1028 | 345 | 501 |
| 119-1029 | 480 | 354 |
| 119-1030 | 665 | 254 |
| 121-1013 | 665 | 254 |
| 119-1031 | 940 | 179 |
| 120-1027 | 665 | 254 |
| 120-1015 | 665 | 254 |
A compact, highly efficient hydraulic motor is a key component of a hydraulic drive system. Hanjiu offers a wide variety of motors with unique performance characteristics which are designed for superior, efficient system performance. Contact us today to discuss your questions or application needs with our team.
