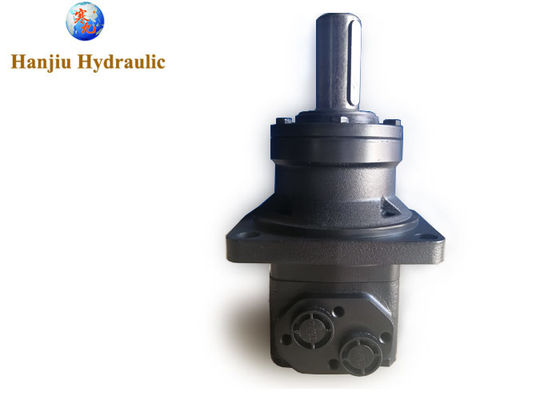

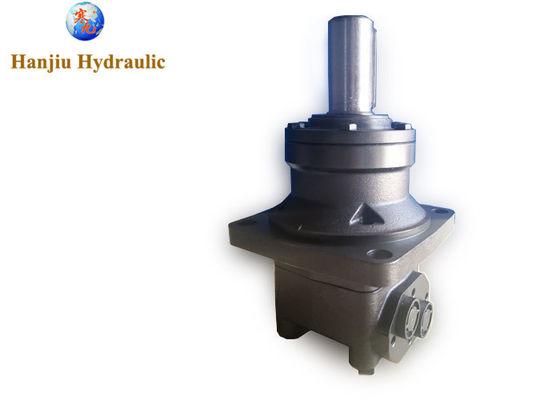

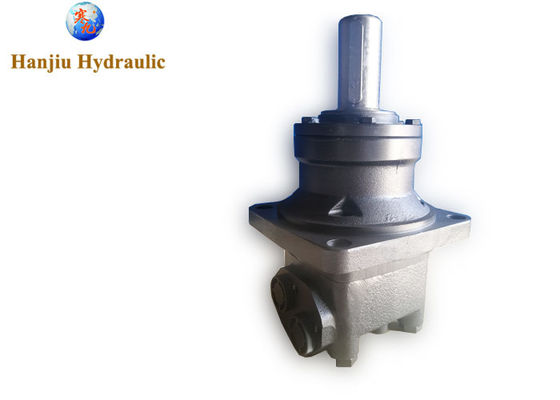

Shaft 40mm OMTW315 151B3033 high torque hydraulic motor For Forestry Engines

Shaft 40mm OMTW315 151B3033 high torque hydraulic motor For Forestry Engines
Shaft 40mm OMTW315 151B3033 high torque hydraulic motor For Forestry Engines Shaft 40mm OMTW315 151B3033 high torque hydraulic motor For Forestry Engines Shaft 40mm OMTW315 151B3033 high torque hydraulic motor For Forestry Engines

Large Image :  Shaft 40mm OMTW315 151B3033 high torque hydraulic motor For Forestry Engines

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: BMTW MOTOR
Payment & Shipping Terms:
Minimum Order Quantity: 10pieces
Price: Negotiable
Packaging Details: 2PCS IN ONE CARTON,800PCS IN 20'FCL
Delivery Time: 25-30DAYS
Payment Terms: T/T, D/P, D/A, L/C
Supply Ability: 300000PCS PER YEAR
Detailed Product Description
Material: Cast Iron /Steel Application: Construction Machines, Mine Machines
Displacement: 315cc Max.speed(rpm): Cont.380rpm/int.460rpm
Max.torque(N.m): Cont.950N.m/int.1140N.m Max.pressure Drop: Cont.20mpa/int.24Mpa
Oil Temperature: Normal-35℃-80℃ Viscosity: 42-74mm2/s
High Light:

Shaft 40mm high torque hydraulic motor

,

Forestry Engines high torque hydraulic motor

,

Forestry Engines low speed hydraulic motor

Danfoss Hydraulic motor OMTW 315 Wheel motors, 40 mm shaft

Product details

  • Output volume (cc/rev): 326,3
  • Shaft Ø (mm): 40
  • max r.p.m.: 380
  • Torque max. (Nm): 950
  • Power max. (kW): 33,5
  • Pressure difference (bar): 200
  • Inlet pressure (bar): 210
  • Volume flow max. (l/min): 125
  • Engine version: with non-return valves
  • Connection: G 3/4"
  • Leakage oil connection: G 1/4"



Main Specification:





Type BMT 160 BMT 200 BMT 230 BMT 250 BMT 315 BMT 400 BMT 500 BMT 630 BMT 800
Geometric displacement
(cm3 /rev.)
161.1 201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8
Max. speed (rpm) cont. 625 625 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185
Max. torque (N·m) cont. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665
Max. output (kW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8
Max. pressure drop
(MPa)
cont. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max. flow (L/min) cont. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150
Max. inlet pressure
(MPa)
cont. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30 30
Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25



* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.







Shaft 40mm OMTW315 151B3033 high torque hydraulic motor For Forestry Engines 0







Shaft 40mm OMTW315 151B3033 high torque hydraulic motor For Forestry Engines 1





Shaft 40mm OMTW315 151B3033 high torque hydraulic motor For Forestry Engines 2



Shaft 40mm OMTW315 151B3033 high torque hydraulic motor For Forestry Engines 3







CHARACTERISTIC FEATURES:

  • Constant operating torque over a wide speed range
  • Smooth running over the entire speed range
  • High starting torque
  • High efficiency
  • High return pressure without the use of drain line (High pressure shaft seal)
  • Long life under extreme operating conditions
  • High radial and axial bearing capacity
  • Robust and compact design
  • Suitable for a wide varie



Applications:

  • Agricultural Machinery
  • Forestry Equipment
  • Fishing Equipment
  • Plastics Industry
  • Construction Industry
  • Mining



DANFOSS Hydraulic Motors
  • OMM
  • OMP
  • OMR
  • OMS
  • OMH
  • OMT
  • OMV

M+S Hydraulic Motors
  • MM/MLHM
  • MP/MLHP
  • MR/MLHR
  • MH/MLHH
  • MS/MLHS
  • MT/MLHT
  • MV/MLHV






Shaft 40mm OMTW315 151B3033 high torque hydraulic motor For Forestry Engines 4
