Brush Mower Hydraulic Lsht Motor Char Lynn 2000 Series Replacement

Brush Mower Hydraulic Lsht Motor Char Lynn 2000 Series Replacement
Brush Mower Hydraulic Lsht Motor Char Lynn 2000 Series Replacement Brush Mower Hydraulic Lsht Motor Char Lynn 2000 Series Replacement Brush Mower Hydraulic Lsht Motor Char Lynn 2000 Series Replacement

Large Image :  Brush Mower Hydraulic Lsht Motor Char Lynn 2000 Series Replacement

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: BMSY series
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sets
Price: Start from 95 usd
Packaging Details: Carton, Box, Pallets
Delivery Time: 35 - 45 work days
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 300000 sets per year
Detailed Product Description
Item: LSHT Motors Model: BMSY
Fastening: 6 Bolt Port: Staggered Ports
Shaft: Straight And Splined Pilot: 82.5mm
High Light:

hydraulic lsht motor

,

brush mower lsht motor

,

char lynn 2000 series lsht motor





 Brush Mower LSHT Hydraulic motors, Char-Lynn 2000 series replacement







Fast review of this LSHT motor:

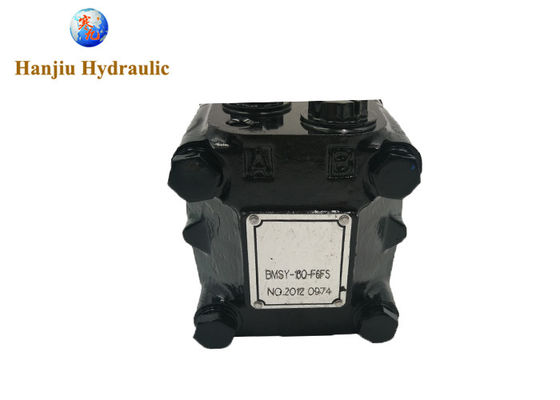

Model No. BMSY-160
Displacement 160 ml/r
Mounting 6-13.5 rhomb flange, 106.4mm, pilot 82.5x2.6mm
Output shaft 31.75mm splined tooth 14-DP12/24
Weight 11 kgs
Manufacturer Hanjiu









Main Specifications:
Type BMSY
BMSE
80
BMSY
BMSE
100
BMSY
BMSE
125
BMSY
BMSE
160
BMSY
BMSE
200
BMSY
BMSE
250
BMSY
BMSE
315
BMSY
BMSE
375
Geometric displacement
(cm3 /rev.)
80.6 100.8 125 157.2 200 252 314.5 370
Max. speed (rpm) cont. 800 748 600 470 375 300 240 200
int. 988 900 720 560 450 360 280 240
Max. torque (N·m) cont. 190 240 310 316 400 450 560 536
int. 240 300 370 430 466 540 658 645
peak 260 320 400 472 650 690 740 751
Max. output (kW) cont. 15.9 18.8 19.5 15.6 15.7 14.1 14.1 11.8
int. 20.1 23.5 23.2 21.2 18.3 17 18.9 17
Max. pressure drop (MPa) cont. 17.5 17.5 17.5 15 14 12.5 12 10
int. 21 21 21 21 16 16 14 12
peak 22.5 22.5 22.5 22.5 22.5 20 18.5 14
Max. flow (L/min) cont. 65 75 75 75 75 75 75 75
int. 80 90 90 90 90 90 90 90
Max. inlet pressure (MPa) cont. 25 25 25 25 25 25 25 25
int. 30 30 30 30 30 30 30 30
Weight (kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.









Some of these applications include the following: Car Washes, Fishing Winches, Marine Bow Thrusters, Railroad Maintenance, Industrial Snow Blowers, Chute Rotators, Industrial Sweepers, Saw Mill Works, Food Processing, Agricultural Conveyors, Skid-steer Attachments, Swing Motors, Seeders, Directional Boring, Winches, Salt Spreaders, Scissors Lifts, Irrigation Reels, Grinders, and Mixers.




These motors reach high levels of excellence. With such a vast field of demand for compact, high quality motors, Hanjiu provides the perfect solution. From conveyors to wheel motors, Hanjiu offers many different mounts, displacements, and shaft styles. These motors are built to last on your equipment, so whether you are manufacturing equipment or just want to replace an existing motor contact Hanjiu's sales team for more information.



Brush Mower Hydraulic Lsht Motor Char Lynn 2000 Series Replacement 0











At Hanjiu Hydraulics we offer Charlynn's replacement motors for Low Speed High Torque (LSHT) applications. These motors consist of the Geroler and Geroter style motors. With Valve-In-Star, Disc Valve, and Spool Valve motors almost every application is covered.





The Disc valve motors come in several different series, the 2000, 4000, 6000, & 10000 series replacement. These motors which are commonly found on brush mowers, harvesting equipment, trenchers, forestry equipment, and turf equipment. Disc valve motors are used where there is high side load as well as having low pressure drops. With all series having many different displacements selecting a motor for your specific application is simple.



The Spool valve motor is a high quality motor for small general applications. The series includes the J, H, S, T, and W series replacement. Spool valve motors are commonly found on augurs, conveyors, machine tools, food processing equipment etc. These motors are ideal for low-flow and low-speed applications. With a vast spectrum of applications with varying requirements Hanjiu Hydraulics is poised to supply Charlynn replacement motors to meet these demands.





Brush Mower Hydraulic Lsht Motor Char Lynn 2000 Series Replacement 1
