Bobcat 443 Skid Steer Hydraulic Char Lynn 2000 Series Motor Replacement Bmk2 Series

Bobcat 443 Skid Steer Hydraulic Char Lynn 2000 Series Motor Replacement Bmk2 Series
Bobcat 443 Skid Steer Hydraulic Char Lynn 2000 Series Motor Replacement Bmk2 Series Bobcat 443 Skid Steer Hydraulic Char Lynn 2000 Series Motor Replacement Bmk2 Series Bobcat 443 Skid Steer Hydraulic Char Lynn 2000 Series Motor Replacement Bmk2 Series Bobcat 443 Skid Steer Hydraulic Char Lynn 2000 Series Motor Replacement Bmk2 Series

Large Image :  Bobcat 443 Skid Steer Hydraulic Char Lynn 2000 Series Motor Replacement Bmk2 Series

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: BMK2 series
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sets
Price: Start from 95 usd
Packaging Details: Carton, Box, Pallets
Delivery Time: 35 - 45 work days
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 300000 sets per year
Detailed Product Description
Item: LSHT Motors Model: BMK2
Fastening: 4 Bolt Port: Staggered Ports
Shaft: Splined Flange: Square
High Light:

hydraulic char lynn 2000 series motor

,

bmk2 char lynn 2000 series motor

,

bmk2 2000 series char lynn motor





 Bobcat 443 Skid steer Hydraulic Motor Char-Lynn 2000 series replacement BMK2 series

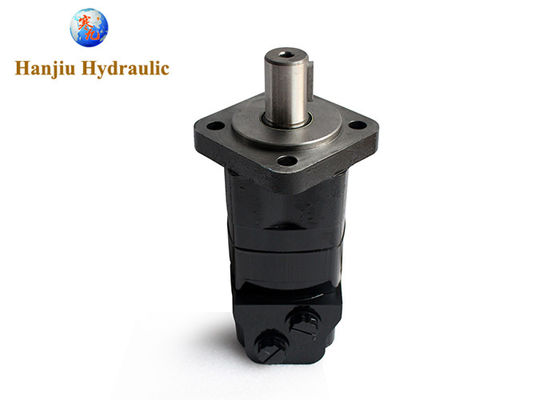

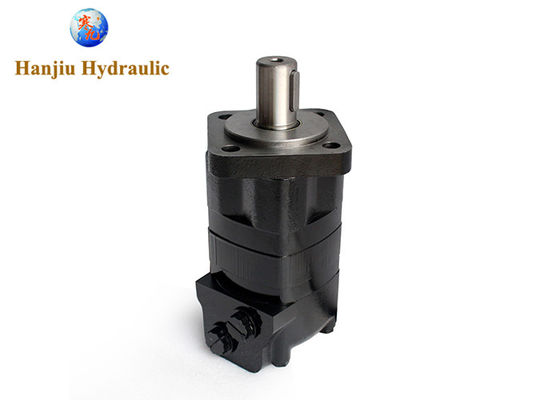

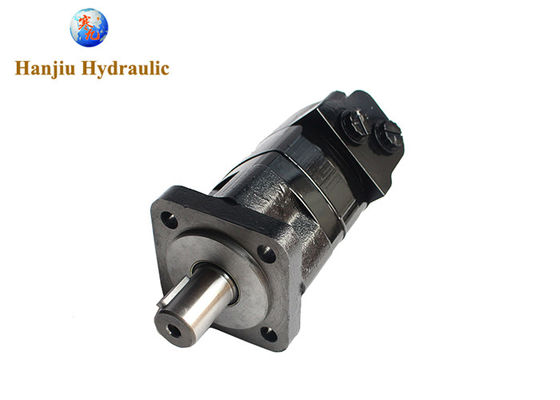

Hanjiu Hydraulic offers this Hydraulic Motor for Bobcat 443 Skidsteer. Photo for your reference only.

This is an original/direct replacement item unless otherwise noted in the details.

If you have any questions weather your hydraulic pump or motor is at fault please don't hesitate to call us, we would love to help.

Custom rebuilds are also available depending on design. Lead time varies and they are always quoted individually. Call for details.
14 spline -1.25 '' X 10.5" Bolt holes 4.125"

Replaces Part Number 6632177
OEM numbers 6630506, 6632177



Main Specifications:
Type BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2
65 80 100 125 160 200 250 315 400 475
Geometric displacement
(cm3 /rev.)
65 80 100.9 129.8 156.8 193.4 242.5 304.3 390.8 485
Max. speed (rpm) cont. 835 800 742 576 477 385 308 246 191 153
int. 990 980 924 720 713 577 462 365 287 230
Max. torque (N·m) cont. 185 235 295 385 455 540 660 765 775 845
int. 245 345 445 560 570 665 820 885 925 930
Max. pressure drop (MPa) cont. 20.5 21 21 21 20.5 20.5 20.5 21 15.5 12
int. 27.5 31 31 31 26 26 26 24 17 14
peak 31 31 31 31 31 31 31 31 20.5 17
Max. flow (L/min) cont. 55 65 75 75 75 75 75 75 75 75
int. 65 80 95 95 115 115 115 115 115 115
Weight (kg) 9.2 9.4 9.7 10 10.2 10.5 11 11.5 12 12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.



Bobcat 443 Skid Steer Hydraulic Char Lynn 2000 Series Motor Replacement Bmk2 Series 0









At Hanjiu Hydraulics we offer Charlynn's replacement motors for Low Speed High Torque (LSHT) applications. These motors consist of the Geroler and Geroter style motors. With Valve-In-Star, Disc Valve, and Spool Valve motors almost every application is covered.





The Disc valve motors come in several different series, the 2000, 4000, 6000, & 10000 series replacement. These motors which are commonly found on brush mowers, harvesting equipment, trenchers, forestry equipment, and turf equipment. Disc valve motors are used where there is high side load as well as having low pressure drops. With all series having many different displacements selecting a motor for your specific application is simple.



The Spool valve motor is a high quality motor for small general applications. The series includes the J, H, S, T, and W series replacement. Spool valve motors are commonly found on augurs, conveyors, machine tools, food processing equipment etc. These motors are ideal for low-flow and low-speed applications. With a vast spectrum of applications with varying requirements Hanjiu Hydraulics is poised to supply Charlynn replacement motors to meet these demands.





Bobcat 443 Skid Steer Hydraulic Char Lynn 2000 Series Motor Replacement Bmk2 Series 1
