Haulotte Drive 2505003890 Gerotor Hydraulic Motor Construction Equipment Spare Parts

China Shijiazhuang Hanjiu Technology Co.,Ltd certification
China Shijiazhuang Hanjiu Technology Co.,Ltd certification
Hello, Hanhan, my dear friend! Keep in touch with you by whatsapp.

—— Ricky Naidoo

Hello, Dear Alysa, you looks like a tall and lovely girl. Thank you for your catalogues, I will reply you soon.

—— Bhavin Gandhi

Dear Emily, you are a sweet girl. Keep in touch.

—— Roy Quemada

Dear Shirley, thank you for your patient. I will be back soon.

—— Sam

Dear Simon, sample is received. I will detect it asap.

—— JACK LORSHBOUGH

Dear Albert, good job, we can be good partner.

—— larry timmons

I'm Online Chat Now

Haulotte Drive 2505003890 Gerotor Hydraulic Motor Construction Equipment Spare Parts

Haulotte Drive 2505003890 Gerotor Hydraulic Motor Construction Equipment Spare Parts
Haulotte Drive 2505003890 Gerotor Hydraulic Motor Construction Equipment Spare Parts Haulotte Drive 2505003890 Gerotor Hydraulic Motor Construction Equipment Spare Parts Haulotte Drive 2505003890 Gerotor Hydraulic Motor Construction Equipment Spare Parts

Large Image :  Haulotte Drive 2505003890 Gerotor Hydraulic Motor Construction Equipment Spare Parts

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE/ISO
Model Number: BMM
Payment & Shipping Terms:
Minimum Order Quantity: 30 Pieces
Price: Negotiable
Packaging Details: 1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Delivery Time: 10 - 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability: 70000 pieces per year
Detailed Product Description
Type: Spool Valve Max Torque: Cont.40n.m/int57n.m
Max Speed: Cont630rpm/int.800rpm Max Flow: Cont.20l/min Int.25l/min
Max.output: Cont.2.4kw/int.3.2kw Application: Platform Spare Parts
High Light:

haulotte drive gerotor hydraulic motor

,

2505003890 gerotor hydraulic motor

,

2505003890 gerotor motor

Haulotte Drive Motor 2505003890 Hydraulic Motor For Construction Equipment Spare Parts

Hydraulic moto Haulotte 2505003890 fits HA12IP, HA16SPX, HA16TPX, H23TPX



HA-4000005510

HA-4000006190

HA-4000022840

HA-2505003890



Main Specifications:



type BMM8 BMM12 BMM20 BMM32 BMM40 BMM50
displacement 8.2 12.9 19.9 31.6 39.8 50.3
Max speed(rpm) rated 1537 1256 814 513 452 358
Cont. 1950 1550 1000 630 500 400
int. 2450 1940 1250 800 630 500
Max Torque
(N*M)
rated 8 13 19 31 37 33
Cont. 11 16 25 40 45 46
int. 15 23 35 57 70 88
peak 21 33 51 64 82 100
Max speed
(kw)
rated 1.3 1.7 1.7 1.7 1.7 1.2
Cont. 1.8 2.4 2.4 2.4 2.2 1.8
int. 2.6 3.2 3.2 3.2 3.2 3.2
Max pressure
drop(MPa)
rated 9 9 9 9 8.5 6
Cont. 10 10 10 10 9 7
int. 14 14 14 14 14 14
peak 20 20 20 16 16 16
Max flow(L/min) rated 14 18 18 18 20 20
Cont. 18 20 20 20 20 20
int. 20 25 25 25 25 25
Weight(kg) 1.9 2 2.1 2.2 2.3 2.4



Type   Max.inlet pressure
BMM8-50 Cont. 17.5
(Mpa) Int. 22.5

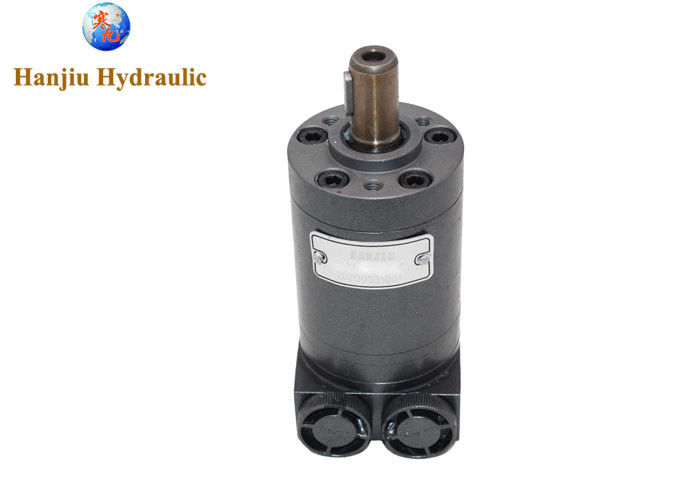

Haulotte Drive 2505003890 Gerotor Hydraulic Motor Construction Equipment Spare Parts 0

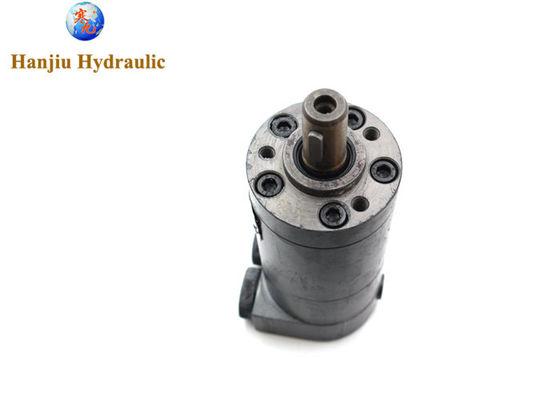

Haulotte Drive 2505003890 Gerotor Hydraulic Motor Construction Equipment Spare Parts 1

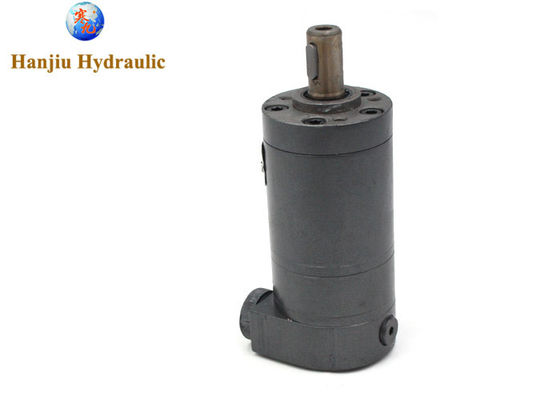

Haulotte Drive 2505003890 Gerotor Hydraulic Motor Construction Equipment Spare Parts 2

Haulotte Drive 2505003890 Gerotor Hydraulic Motor Construction Equipment Spare Parts 3
