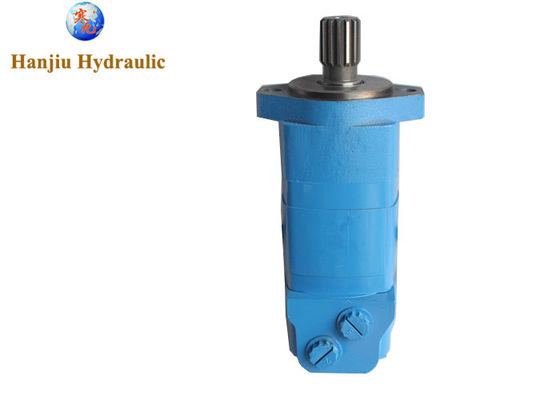

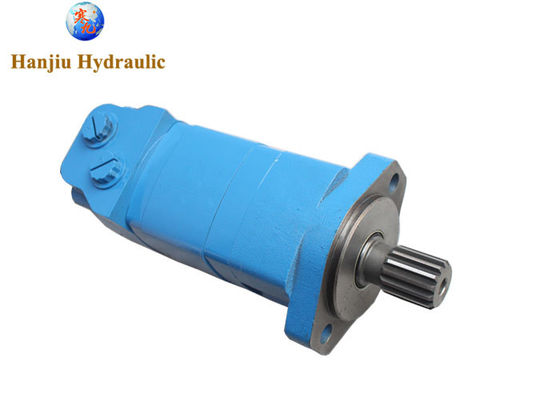

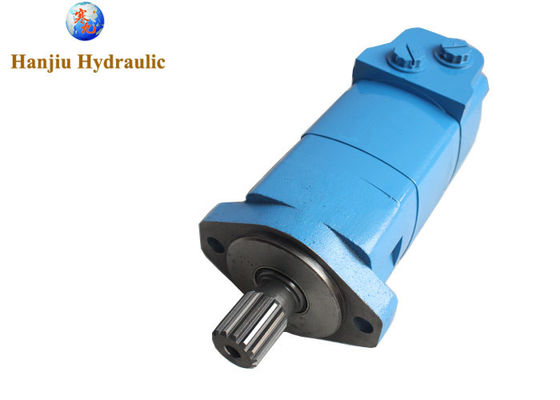

Char Lynn 2000 Series Skid Steer Hydraulic Motor 1-1/4" Spline Shaft

Char Lynn 2000 Series Skid Steer Hydraulic Motor 1-1/4" Spline Shaft
Char Lynn 2000 Series Skid Steer Hydraulic Motor 1-1/4" Spline Shaft Char Lynn 2000 Series Skid Steer Hydraulic Motor 1-1/4" Spline Shaft Char Lynn 2000 Series Skid Steer Hydraulic Motor 1-1/4" Spline Shaft

Large Image :  Char Lynn 2000 Series Skid Steer Hydraulic Motor 1-1/4" Spline Shaft

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: BMK2 MOTOR
Payment & Shipping Terms:
Minimum Order Quantity: 10pieces
Price: Negotiable
Packaging Details: 2PCS IN ONE CARTON,800PCS IN 20'FCL
Delivery Time: 25-30DAYS
Payment Terms: T/T, D/P, D/A, L/C
Supply Ability: 300000PCS PER YEAR
Detailed Product Description
Features: Match /M+S/Eaton/Char_lynn Application: Harvesting Equipment,sweeper Machines
Displacement: 315cc Max.speed(rpm): Cont.246rpm/int.365rpm
Max.torque(N.m): Cont.765N.m/int.885N.m Max.pressure Drop: Cont.21Mpa/int.24Mpa
Oil Temperature: Normal-35℃-80℃ Viscosity: 42-74mm2/s
High Light:

char lynn skid steer hydraulic motor

,

charlynn 2000 skid steer hydraulic motor

,

hydraulic drive motor for skid steer

Hydraulic Drive Motor For Skid Steer Char Lynn 2000 Series Hydrostatic Motor 1-1/4" Spline Shaft




Brand HANJIU
Displacement 315cc
Product Type Simple product
Features Blue Paint
Mount  2Bolt Standard shaft
Ports 7/8-14 St.Thd. O-Ring
Supplier Part Number 104-1035-006
Product Weight 24.00 lbs



this kind of hydraulic motors can be used on sugar harvester, like JOHN DEERE,



CB11480557



CB11480558



CB11480559



CB11423252




Main specification



TYPE

BMK2
125CC

BMK2

160CC

BMK2
200CC

BMK2
250CC

BMK2
315CC

BMK2
400CC

BMK2

475CC

Displacement(ml/r) 129.8 156.8 193.4 242.5 304.3 390.8 485

Max.Pressure.Drop(Mpa)
cont. 21 20.5 20.5 20.5 21 15.5 12
int. 31 26 26 26 24 17 14
peak. 31 31 31 31 31 20.5 17
Max.Torque(N.m) cont. 385 455 540 660 765 775 845
int. 560 570 665 820 885 925 930
Speed.Range(r/min) cont. 576 477 385 308 246 191 153
int. 720 713 577 462 365 287 230
Max.Flow(cont.)(L/min) cont. 75 75 75 75 75 75 75
int. 95 115 115 115 115 115 115
Weight(kg) 10 10.2 10.5 11 11.5 12 12.4




Char Lynn 2000 Series Skid Steer Hydraulic Motor 1-1/4" Spline Shaft 0



Part Number Displacement cm/rev (in/rev)
104-1029-006 80 (4.9)
104-1030-006 100 (6.2)
104-1031-006 130 (8.0)
104-1032-006 160 (9.6)
104-1033-006 195 (11.9)
104-1034-006 245 (14.9)
104-1035-006 305 (18.7)
104-1229-006 395 (24.0)
104-1422-006 490 (29.8)
104-4480-006 305(18.7)
104-4481-006 395(24.0)

For a single hydraulic motor, there are charlynn motors, charlynn 2000 series, Eaton disc valve motors, and disc valve hydraulics. Motors, charlynn hydraulic motors, orbital hydraulic motors, spool valve motors, Charing spool valve motors, Eaton spool valve motors and many other motors.

Disc valve hydraulic motors, as a special kind, are designed to adapt to machines with relatively low chassis. In actual applications, for example, metallurgical machinery uses a low mechanical chassis. If a rail hydraulic motor is used, it is easy to be soaked by wet soil. As a result, the motor rusts. If a relatively flat disc valve pressure motor is used, it can avoid this problem and save space to a certain extent.

Disc valve hydraulic motor of HANJIU TECHNOLOGY. Made of alloy materials, the volume is relatively small, and the weight is relatively light. It can avoid the problem of large torsional power loss. The disc distribution hydraulic motor is an end-distribution hydraulic motor, which plays an advanced role. The column-inlaid stator and rotor parameter design has the advantages of high working efficiency, high working pressure, low starting pressure, stable operation, and the same output torque can be obtained in both directions.

The disc valve hydraulic motor can maximize the kinetic energy output under the condition of relatively low operating speed and high torque. Although small in size, in addition to providing the typical high-pressure energy of modern hydraulic components, this hydraulic motor is the most compact and most space-saving, and it is also conducive to the designer's design work. Due to its compact size, this motor is highly adjustable, allowing the designer to place the kinetic energy at any desired position, but its output power is large, thus reducing the problems caused by installation, not only because of this This kind of motor can be installed on the driving equipment far away from the original energy, reducing other mechanical transmission and connection



Char Lynn 2000 Series Skid Steer Hydraulic Motor 1-1/4" Spline Shaft 1
