| Item: | Hydraulic Motor | OEM #: | BK2 |
|---|---|---|---|
| Manufacturer: | Hanjiu | Static Torque: | 32 Da Nm |
| Max Pressure: | 300 Bar | Application: | Locking For Engine BMP, BMR, BMS |
| High Light: | omp danfoss hydraulic motor,omr danfoss hydraulic motor,300 bar danfoss oms motor |
||

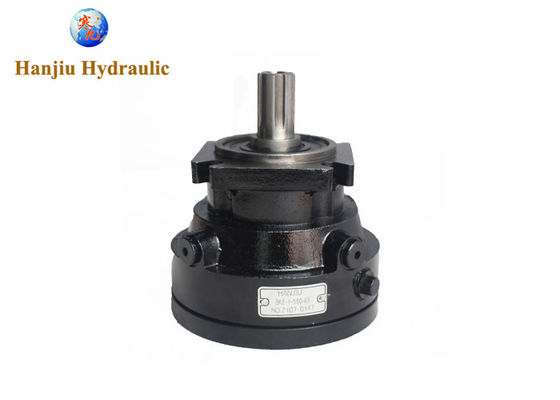

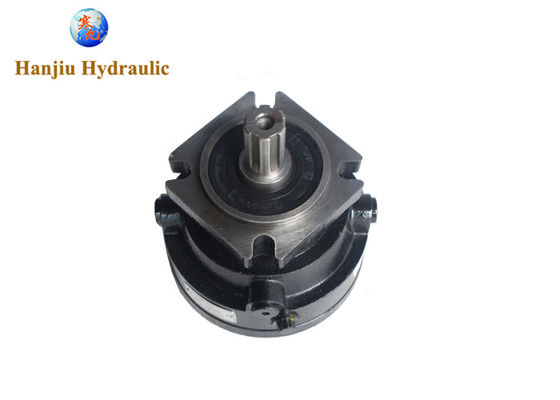

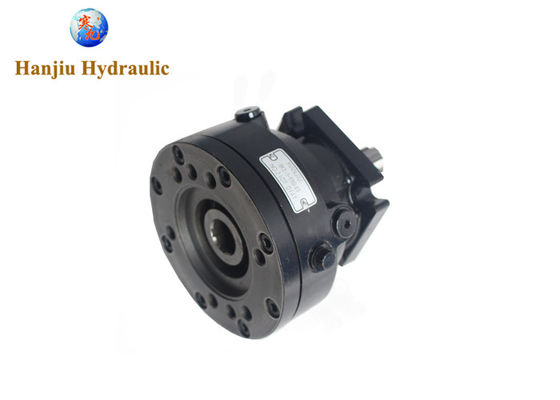

This is an Danfoss similar motor brake, it's not made by Danfoss, it's made by Hanjiu. BK2 series brake is one kind of hydraulic wet disc brake. The brake force is caused by the spring, and hydraulic pressure releases the brake force. This brake is only used in static parking brake. Dynamic braking is not recommended.
Locking for engine Danfoss OMP, OMR, OMS, Static torque 32 da Nm, Maximum pressure 300 bar
Features as follows:
* BK2 series adopts the special friction disc and high strength spring design: long
life endurance, low noise, high braking reliability.
* with 4 Drain port design , the brake can be used in different applications.
* compact structure, easy mounting.
* it can be used preferentially together with BMP, BMR, BMS series hydraulic motor.
Technical information
| Item | BK2-1 | BK2-2 |
| Min. static torque Nm | 200 - 230 | 410-450 |
| Min. opening pressure MPa | 1.7～2.3 | |
| Max. opening pressure MPa | 30 | |
| Min. oil quantity for brake releasing cm3 | 7～8 | |
| Oil volume cm3 | 50～120 | |
| Max. pressure in drain space MPa | 0.05 | |
| Weight kg | 9 | 9.5 |
A variety of mounting flange types, a variety of output shaft types, and a variety of displacements can meet all your installation and use requirements. For BMM, BMP, BMR, BMH, BMS, BMSY, BMT, BMV, BMK2, BMK4, BMK6, BMK10 hydraulic motors, call our sales team
