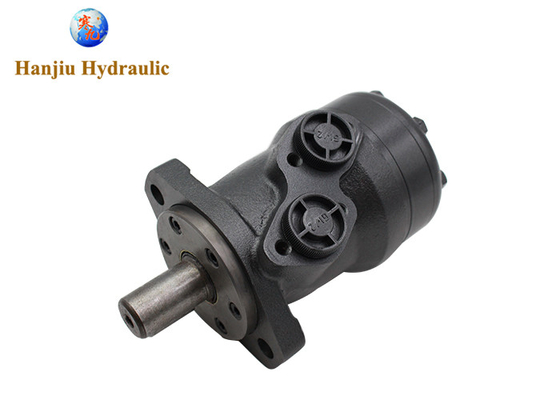

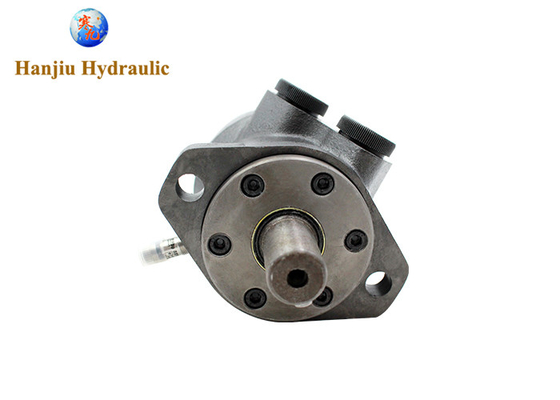

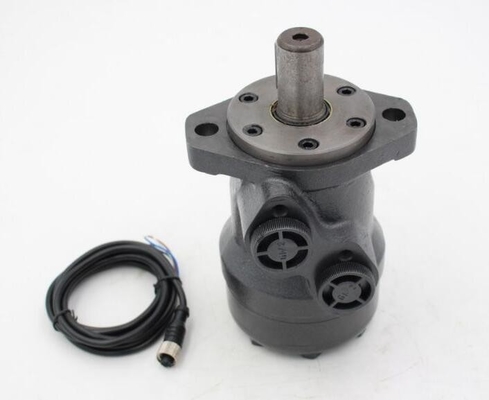

100 Cm3 Shaft 25mm Orbit Hydro Motor Bmr Bms With Speed Sensor

100 Cm3 Shaft 25mm Orbit Hydro Motor Bmr Bms With Speed Sensor
100 Cm3 Shaft 25mm Orbit Hydro Motor Bmr Bms With Speed Sensor 100 Cm3 Shaft 25mm Orbit Hydro Motor Bmr Bms With Speed Sensor 100 Cm3 Shaft 25mm Orbit Hydro Motor Bmr Bms With Speed Sensor

Large Image :  100 Cm3 Shaft 25mm Orbit Hydro Motor Bmr Bms With Speed Sensor

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: BMR 100
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: 70 - 90 usd
Packaging Details: 1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Delivery Time: 10 - 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability: 70000 pieces per year
Detailed Product Description
Type: Geroler And Gerotor Motor Brand: HANJIU
Hanjiu Modell: BMR100 Feature: With Speed Sensor
Shaft: 25mm Speed: 9 - 615 Rpm
High Light:

100 cm3 orbit hydro motor

,

shaft 25mm orbit hydro motor

,

bms danfoss hydraulic motor





Orbital Motors with Speed Sensor 100 CM3 SHAFT25mm BMP, BMR, BMS







We has developed a speed sensor specially designed for LSHT motors. The electric output signal is a standard voltage signal that can be used for regulating the speed motor. The speed is measured by a sensor in accordance with the Hall principle. Signal processing and amplification are performed in the sensor housing. A connection is provided in the housing for a Binder Series 713 plug or a plug with 5 metres of cable (available from Danfoss). The sensor can also be supplied with 2 metres molded in cable.



This kind of engine is compact with a classic gear rim. It is suitable for long periods of operation under moderated pressure or intermittent periods of operation under high pressure. Speed : 9 to 615 RPM according to the engine. Cubic capacity : 25 to 400 cm³/rev.





  Speed (rpm) Torque (Nm)
Displacement (cm) max continuous min max continuous start min max continuous power (kW) max continuous pressure drop (bar) max continuous oil flow (l/mn) Sauer Danfoss reference
25 1600 20 33 30 4,5 100 40 151-0640
32 1560 15 43 40 5,8 100 50 151-0641
40 1500 10 52 45 7 100 60 151-0642
48,6 1230 10 93 80 10 140 60 151-0610
77,8 770 10 150 135 10 140 60 151-0611
97,3 615 9 190 170 11 140 60 151-0612
125 480 9 240 210 10 140 60 151-0613
155,7 385 8 300 280 10 140 60 151-0614
194,6 310 7 300 270 8 115 60 151-0615
242,3 250 5 300 280 6 90 60 151-0616
306,1 195 5 300 280 5 75 60 151-0617
389,2 155 5 300 280 4 60 60 151-0618




Typical Applications

  •  Speed indication
  •  Setting tightening speed in machine tools
  •  Extend/retract positioning of work platforms
  •  Granulate metering on injection moulding machines
  •  Conveyor speed regulation
  •  Metering on salt spreaders



100 Cm3 Shaft 25mm Orbit Hydro Motor Bmr Bms With Speed Sensor 0
