Product Details:
Payment & Shipping Terms:
|
| Item: | Torqmotor | OEM #: | OMT |
|---|---|---|---|
| Manufacturer: | Hanjiu | Displacement: | 100 - 500 Ml/r |
| Mounting Flange: | 4-hole | Shaft Type: | Keyed |
| High Light: | omt orbit hydraulic motor,heavy applications orbit hydraulic motor,omt motor orbit hydraulic |
||

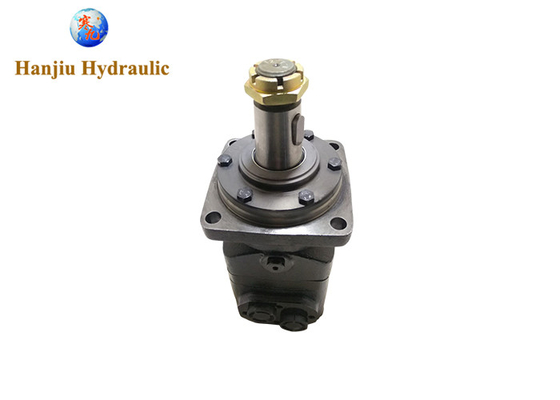

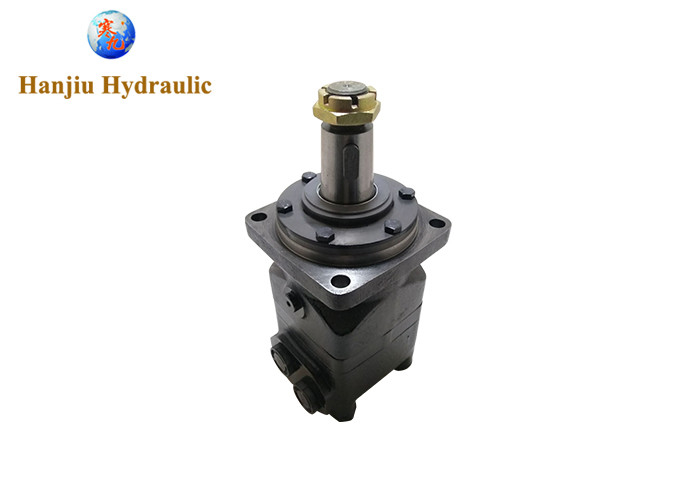

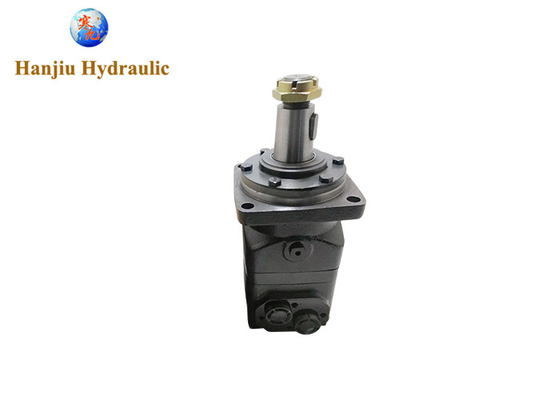

Quick review: LSHT Torqmotors Orbital motor for heavy applications.Shaft with taper roller bearings ensures high static and dynamic bearing capacity.Orbit kit with rollers, separate integrated valve.High volumetric and mechanical efficiency. Long durability at high pressure. OMT has internal flush valves. BMT is compatible with OMT. We provide hydraulic system solutions for heavy applications. Options available: * Continuous pressure :Max. value of operating motor continuously. More applications, we serve: Soil compaction equipment hydraulic system, hydraulic motor Self propelled scissor lifting hydraulic system, hydraulic motor Hydraulic system and hydraulic motor of self-propelled scrap truck Hydraulic system and hydraulic motor of hydraulic traveling transport vehicle Snow sweeper hydraulic system, hydraulic motor Garbage truck hydraulic system, hydraulic motor Reed cutting and garbage collection ship hydraulic system, hydraulic motor Winch and rescue boat hydraulic system, hydraulic motor Barrier safety hydraulic system, hydraulic motor Combine hydraulic system, hydraulic motor OMT Orbital motor for heavy applications, shaft with taper roller bearings
Manufacturer: Hanjiu
Welcome to contact us for consultation.
Flange
4
4-Ø14 Square-flangeØ160,pilotØ125×9
BMT
K6
4-Ø14.5Square-flangeØ162,pilotØ127×9
W
4-Ø18 Wheel-flangeØ200,pilotØ160×7
D
4-Ø14 Circle-flange Ø160,pilot Ø125×8
BMTS
E
4-Ø14.5 Square-flange Ø162, pilot Ø127×10
Output Shaft
M
Shaft Ø40,parallel key 12×8×70
BMT
G
Shaft Ø38.1,parallel key 9.52×9.52×57.15
F
Shaft Ø38.1,splined tooth 17-DP12/24
FD
Shaft Ø38.1,splined tooth 17-DP12/24
T
Cone-shaft 1:10 Ø45,parallel key B12×8×28
T1
Cone-shaft 1:8 Ø45,parallel key 11.13×11.13×31.75
SL
shaft Ø34.85,Splined key,Splined key 6-34.85×28.14×8.64
G1
shaftØ31.75,parallel key 7.96×7.96×40
F1
Shaft Ø31.75,splined tooth 14-DP12/24
Omit
Short shaft 16-DP12/24
BMTS
Port and Drain Port
D
G3/4 Manifold Mount,4-M10 , G1/4
M
M27×2 Manifold Mount,4-M10, M14×1.5
S
1-1/16-12UN O-ring, 9/16-18UNF
S1
1-1/16-12UN O-ring, 7/16-20UNF
G
G3/4,G1/4
M3
M27×2,M14×1.5
Technical Specs.:
Main Specifications:
Type
BMT 160
BMT 200
BMT 230
BMT 250
BMT 315
BMT 400
BMT 500
BMT 630
BMT 800
Geometric displacement
(cm3 /rev.)161.1
201.4
232.5
251.8
326.3
410.9
523.6
629.1
801.8
Max. speed (rpm)
cont.
625
625
536
500
380
305
240
196
154
int.
780
750
643
600
460
365
285
233
185
Max. torque (N·m)
cont.
470
590
670
730
950
1080
1220
1318
1464
int.
560
710
821
880
1140
1260
1370
1498
1520
peak
669
838
958
1036
1346.3
1450.3
1643.8
1618.8
1665
Max. output (kW)
cont.
27.7
34.9
34.7
34.5
34.9
31.2
28.8
25.3
22.2
int.
32
40
40
40
40
35
35
27.5
26.8
Max. pressure drop
(MPa)cont.
20
20
20
20
20
18
16
14
12.5
int.
24
24
24
24
24
21
18
16
13
peak
28
28
28
28
28
24
21
19
16
Max. flow (L/min)
cont.
100
125
125
125
125
125
125
125
125
int.
125
150
150
150
150
150
150
150
150
Max. inlet pressure
(MPa)cont.
21
21
21
21
21
21
21
21
21
int.
25
25
25
25
25
25
25
25
25
peak
30
30
30
30
30
30
30
30
30
Weight (kg)
19.5
20
20.4
20.5
21
22
23
24
25
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
