Product Details:
Payment & Shipping Terms:
|
| Product: | Hydraulic Geroler Motor | Displacement: | 400CC |
|---|---|---|---|
| Max.Speed(rpm): | Cont.183rpm/int.220rpm | Max.Torque(N.m): | Cont.850N.m/int.990N.m |
| Max. Pressure Drop: | Cont.15.5MPa/int.19MPa | Max.flow(L/min): | Cont.75L/min~int.90L/min |
| High Light: | well drilling omh 400 hydraulic motor,danfoss omh 400 hydraulic motor,danfoss hydraulic motor omh 400 |
||

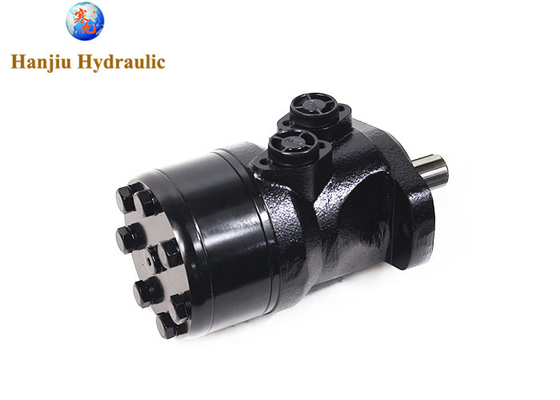

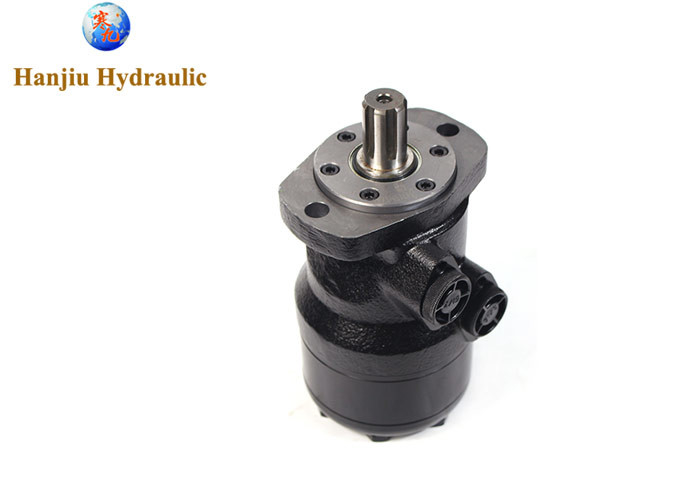

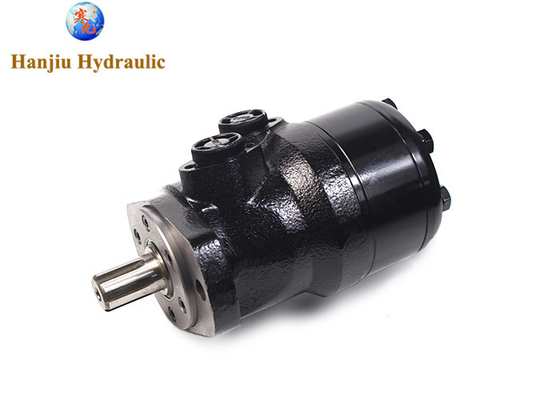

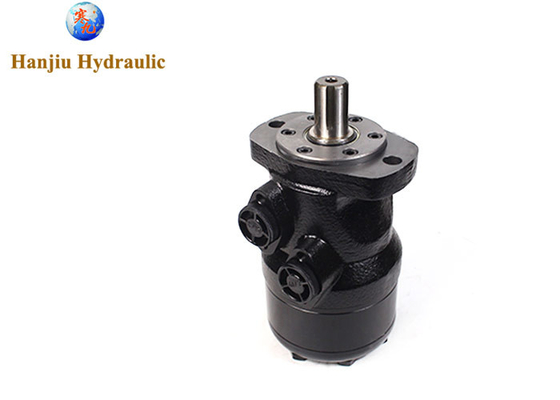

OMH 400 hydraulic motor 151H1084 danfoss hydro well drilling motor
OMH series motor is an important series of products of Hanjiu Company. This series of products has high cost performance and is widely used in the well drilling system. In line with the production concept of quality first, every OMH series motor produced by Hanjiu has super high quality and has won praise from many customers. The Omh 400 motor is an excellent representative of the OMH series.
Product details:
displacement:400cc
flange:2 bolts flange
shaft:Splined 1 in (SAE 6B)
port size:7/8-14 UNF side ports
Main Specifications:
| Type |
BMH 200 |
BMH 250 |
BMH 315 |
BMH 400 |
BMH 500 |
|
|
Displacement (cc/rev) |
203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
|
Max torque (n.m) |
cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max pressure (mpa) |
cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
|
Max speed rate (rpm) |
cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max flow (L/min) |
cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
|
Weight(kg)
|
10.5 | 11 | 11.5 | 12.3 | 13.0 | |
The Omh 400 motor produced by Hanjiu Technology, whose shell is made of ductile iron with sufficient strength, is suitable for occasions with small load and intermittent operation, and is widely used in agriculture, forestry, plastic machine tools and microcomputers, such as mold height adjustment. Injection molding machines, cleaning machines, etc. Its output shaft adopts deep groove ball bearing, which can bear certain axial force and radial force. At the same time, due to the axial oil distribution structure, it is smaller in size and lighter in weight, and can be installed on a variety of instruments, which is light and convenient. In addition, this product has two internal check valves and no drain connection.
Finally, this product has a cycloid group with rollers, with low friction and high mechanical efficiency. Generally speaking, the Omh 400 motor produced by Hanjiu Technology has the characteristics of large motor and high torque.
Moreover, we always adopt the strictest production process, so this product has the top quality in China, you can rest assured on the quality.
In terms of product specifications, the maximum continuous flow of Omh 400 motor is 75 (L/min), the maximum output power (continued) is 10 (Kw), and the weight is uniformly 12.5 kg. This weight is also in the light category of hydraulic motors, and it is very convenient to install. If you want to know more detailed product parameters, visit our official website Hanjiu Technology. The product interface has a more detailed introduction.
We are proud of being your solution partner in hydraulics.
