| Item: | Orbit Hydraulic Motor | Model: | 104-3154-006 |
|---|---|---|---|
| Fastening: | 2 Bolt | Displacement: | 400 CM3/R |
| Shaft: | 14 TOOTH | Port: | Staggered Ports |
| High Light: | 104-3154-006 orbit hydraulic motor,geroler disc valve hydraulic motor,104-3154-006 disc valve hydraulic motor |
||

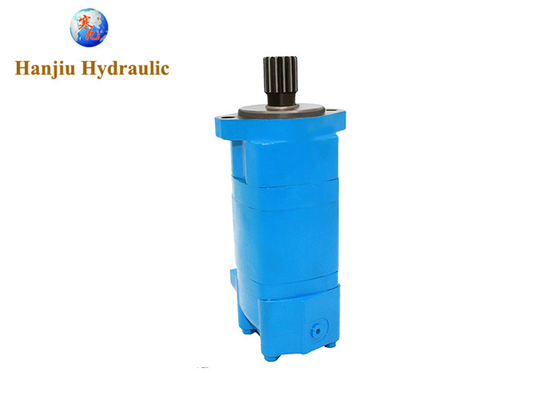

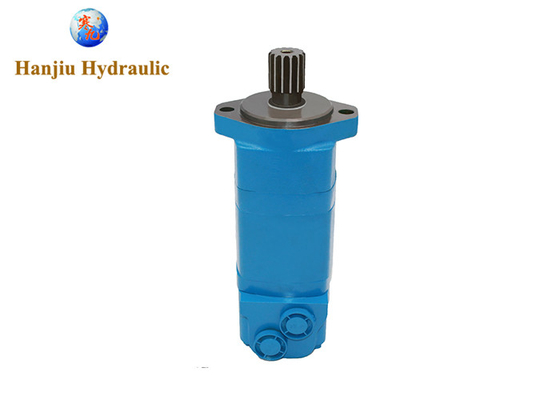

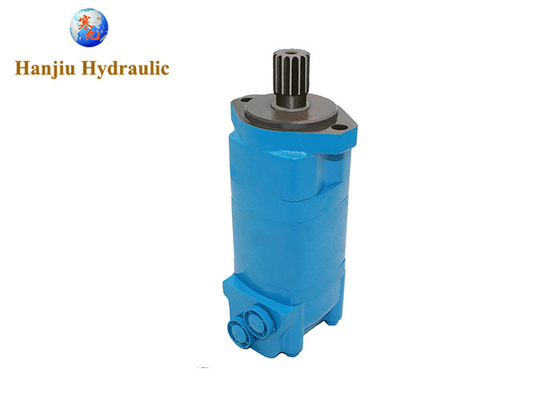

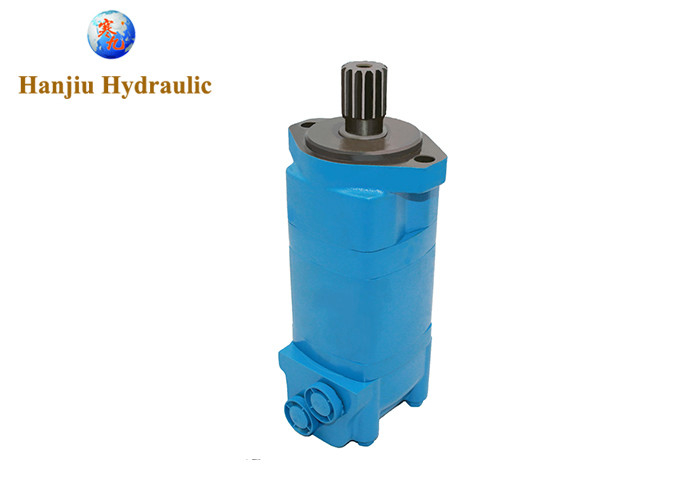

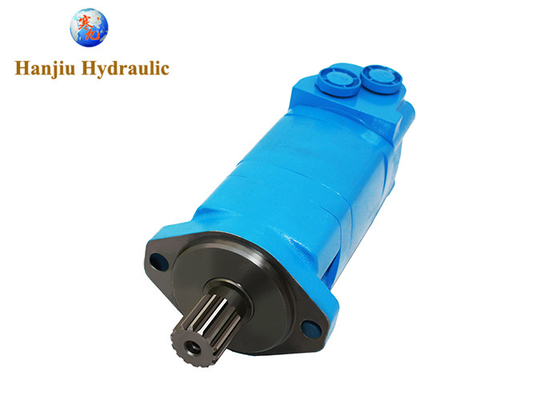

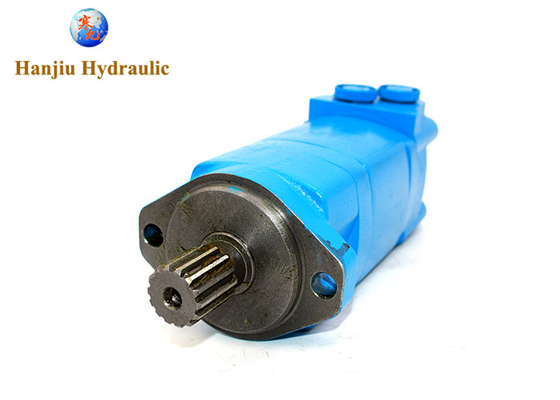

EATON / CHAR-LYNN 104-3154-006 Hydraulic Geroler Disc Valve Motor
Quick view:
This is a Eaton Char-lynn 104-3154-006 replacement motor with the same build and performance, fast delivery
We hope to help distributors make their business more competitive
We hope to help dealers make their business more stable
We hope to help OEMs make their equipment work excellent
Specification:
104-3154-006
M0215AC04AA010000000A0F
Disc Motor
Geroler
Disc Valve
SERIES | 2000 Series |
| PORT LOCATION | Side Port, Staggered |
| SHAFT TYPE | Splined |
| DRAIN | 0.4375-20 UNF-2B SAE O-Ring Port |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 308 rpm @ 20 gal/min |
| FLOW RATE | 20 gal/min |
| RPM [MAX] | 308 rpm |
| DUTY | Standard-Duty |
| GEROTER/GEROLER OPTIONS | Standard |
| MOUNTING HOLES | 0.535 in |
| SPLINES | 14 |
| PORT SIZE | SAE-10, 7/8-14 UNF |
| MOTOR TYPE | Disc Valve |
| MOUNT TYPE | 2 Bolt |
Aftermarket and, or alternative option may be available for these item, to verify please inquire
104-1989-006 :: M02187AJ02AG0200010000000ABAAF
104-1991-006 :: M02187AF03AA01000100000AAAAAAF
104-1992-006 :: M02119AC05AA0100010000000ABAAF
104-1993-006 :: M02149AC16AA0100010000000AAAAF
104-1995-006 :: M02119AH03AG0200014000000ABAAF
104-1997-006 :: M02062AC05AA0100010AA0000AAAAF
104-1998-006 :: M02149AC01AA0100010000000ABAAF
104-1999-006 :: M02119AC02AA0100010000000ABAAF
104-3005-006 :: M02062AC19AG0200010000000ABAAF
104-3006-006 :: M02149AH02AE0200010000300AAAAF
104-3008-006 :: M02149AC04AA0100010AD0000AAAAF
104-3009-006 :: M02062AH04AG0200010AA0000ABAAF
104-3010-006 :: M02049AH04AG0200010AA0000ABAAF
104-3021-006 :: M02096AF08AA0100010000000AAAAF
104-3022-006 :: M02149AJ16AG0200010000000ABAAF
104-3023-006 :: M02187AC04AA0100010000300AAAAF
104-3024-006 :: M02149AC01AB01000100000AAAAAAF
104-3026-006 :: M02240AC01AA0100011000000AAAAF
104-3028-006 :: M02119AC04AA0100011000000AAAAF
104-3034-006 :: M02240AJ02AA0100010AA0000AAAAF
104-3035-006 :: M02240AJ16AG0200010000000ABAAF
104-3036-006 :: M02187AC17AA0100010000000AAAAF
104-3038-006 :: M02119AC17AA0100010000000AAAAF
104-3039-006 :: M02049AH16AS0200010000000ABAAF
104-3041-006 :: M02080AH16AS0200010000000ABAAF
104-3042-006 :: M02096AH16AS0200010000000ABAAF
104-3043-006 :: M02119AH16AS0200010000000ABAAF
104-3044-006 :: M02149AH16AS0200010000000ABAAF
104-3045-006 :: M02187AH16AS0200010000000ABAAF
104-3046-006 :: M02240AH16AS0200010000000ABAAF
104-3048-006 :: M02240AH04AA0100010AE0000AAAAF
104-3051-006 :: M02187AC03AA0102410000000AAAAF
104-3052-006 :: M02298AF07AA0100010000000ABAAF
104-3053-006 :: M02049AC02AA0100010AA0000AAAAF
104-3054-006 :: M02062AC02AA0100010AA0000AAAAF
104-3055-006 :: M02080AC02AA0100010AA0000AAAAF
104-3056-006 :: M02119AC02AA0100010AA0000AAAAF
104-3057-006 :: M02149AC02AA0100010AA0000AAAAF
104-3058-006 :: M02187AC02AA0100010AA0000AAAAF
104-3060-006 :: M02298BA32AD0100010000000ABAAF
104-3061-006 :: M02096AH19AG0200010000000ABAAF
104-3062-006 :: M02062AC16AG0200010000000ABAAF
104-3063-006 :: M02080AC16AG0200010000000ABAAF
104-3064-006 :: M02062AF07AA0400010000000AAAAF
104-3065-006 :: M02119AC16AG0200010000000ABAAF
104-3066-006 :: M02149AC16AG0200010000000ABAAF
104-3067-006 :: M02187AC16AG0200010000000ABAAF
104-3068-006 :: M02298AC16AG0200010000000ABAAF
104-3069-006 :: M02240AC04AA0100011000000AAAAF
104-3070-006 :: M02119AC01AA0100010AD0000AAAAF
104-3071-006 :: M02187AH16AD0100010000000ABAAF
104-3074-006 :: M02149AJ01AG0200010000000ABAAF
104-3077-006 :: M02187AC04AA0100010AE0000AAAAF
104-3078-006 :: M02149AC01AB0100010000000AAAAF
104-3079-006 :: M02096AJ16AA0100010000000AAAAF
104-3082-006 :: M02240AJ02AG0200010000300ABAAF
104-3084-006 :: M02119AC02AA0100010AE0000AAAAF
104-3086-006 :: M02119AJ02AA0100010AA0000AAAAF
104-3087-006 :: M02062AH05AA0100010000000AAAAF
104-3088-006 :: M02298AF07AA0100010000000AAAAF
104-3089-006 :: M02096AC01AA0400010000000AAAAF
104-3092-006 :: M02080AC03AG0200010000000ABAAF
104-3093-006 :: M02119AC02AA0100014000000AAAAF
104-3094-006 :: M02149AC02AA0100014000000AAAAF
104-3095-006 :: M02240AC02AA0100014000000AAAAF
104-3097-006 :: M02096AC07AA0100010000000AAAAF
104-3099-006 :: M02119AC01AA0100011000000AAAAF
104-3103-006 :: M02119AC16AA0100010000000AAAAF
104-3104-006 :: M02119AC04AA0100010AE0000AAAAF
104-3105-006 :: M02149AC01AA0100014000000AAAAF
104-3107-006 :: M02187AH16AA0100010000000ABAAF
104-3109-006 :: M02187AC02AA0100014000000AAAAF
104-3110-006 :: M02187AJ04AA08000100000AAAEAAF
104-3111-006 :: M02187AC03AA0100014000000AAAAF
104-3112-006 :: M02096AH05AA0100010000000AAAAF
104-3113-006 :: M02119AJ05AD0100010000000AAAAF
104-3115-006 :: M02240AJ16AA0100011000000AAAAF
104-3117-006 :: M02049AH16AD0100010000000ABAAF
104-3125-006 :: M02298AC02AB01000100000ABABAAF
104-3127-006 :: M02096AJ16AN0200010000000ABAAF
104-3131-006 :: M02049AC01AA0100010000000ABAAF
104-3133-006 :: M02096AF04AA0100010AA0000AAAAF
104-3134-006 :: M02187BD04AA0100010AE0000AAAAF
104-3135-006 :: M02096AF02AA0100010AA0000AAAAF
104-3136-006 :: M02080AJ04AA0100010000000ABAAF
104-3137-006 :: M02062AC02AA0100020000000AAAAF
104-3138-006 :: M02298AH03AA0100014000000ABAAF
104-3142-006 :: M02096AH05AG0200010000000ABAAF
104-3143-006 :: M02149AH05AG0200010000000ABAAF
104-3146-006 :: M02080AH19AG0200010000000AAAAF
104-3149-006 :: M02149AJ04AA0100010000000ABAAF
104-3150-006 :: M02187AJ04AA0100010000000ABAAF
104-3152-006 :: M02149AC07AA0100010000000AAAAF
104-3153-006 :: M02049AF05AA0100010000000ABAAF
104-3154-006 :: M02149AC04AA0100010000000ABAAF
104-3155-006 :: M02119AC01AA0100010000000ABAAF
104-3158-006 :: M02187AC03AA0100010000000ABAAF
104-3159-006 :: M02080AH02AA0100011000000AAAAF
104-3162-006 :: M02240AJ05AA0100013000000AAAAF
104-3163-006 :: M02049AC01AA0100014000000AAAAF
More series EATON / CHAR-LYNN hydraulic motor available
| J (129-) | 2000 (104-, 105-, 106-, 193-) |
| H (101-) | 4000 (109-, 110-, 111-) |
| S (103-) | 6000 (112-, 113-, 114-) |
| T (158-) | 10000 ( 119-) |
| W (162-) |
