Product Details:
Payment & Shipping Terms:
|
| Item: | Disc Valve Motors | Model: | BMK10 |
|---|---|---|---|
| Displacement: | 665.3 CM3/R [40.60 IN3/R] | Flange: | 127.0 [5.00] PILOT DIA. |
| Shaft: | 16teeth SPLINE SHAFT | Port: | 1.3125-12 UN-2B SAE O-RING STAGGERED PORTS |
| High Light: | High Toque Hydraulic Motor 119-1103-003,Eaton Hydraulic Motor 119-1103-003,BMK10 Low Speed Hydraulic Motor |
||

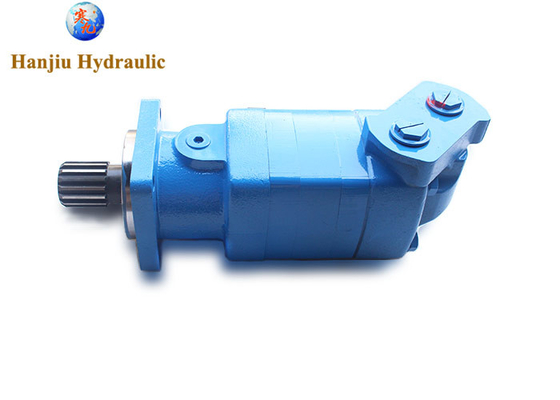

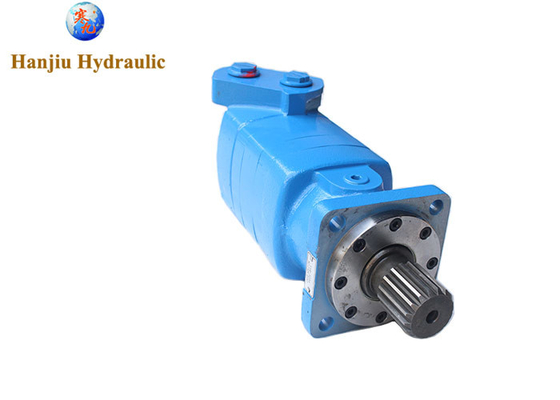

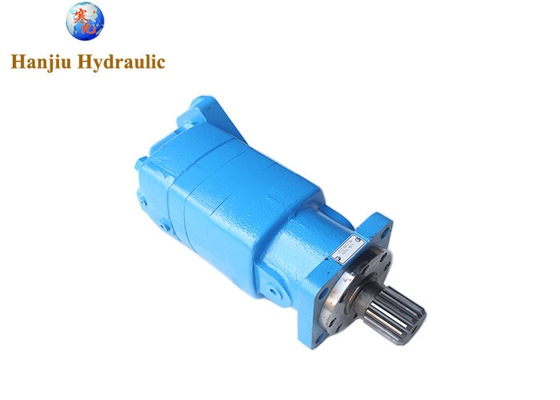

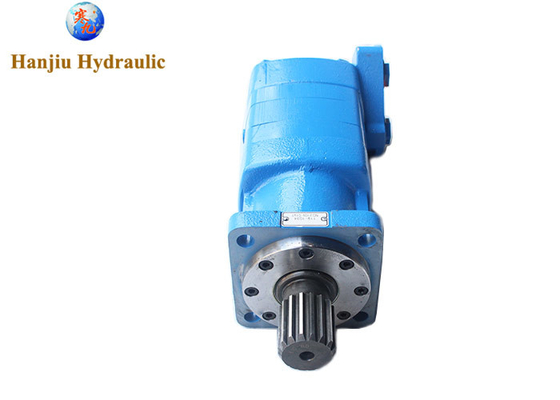

HANJIU BMK10 series hydraulic disc valve motors equivalent of charlynn 10000 series motor
the same flange, same shaft size and same port threads
used on HARVESTER CANE DRIVE MACHINES
| Series | 10000 - Standard type |
| Displacement | 665cm³/r |
| Mounting Type | STANDARD, 4 BOLT; 127.0 mm PILOT DIA |
| Shaft Type | 53.98 [2.125] DIA. FLAT ROOT |
| Maximum Operating Temperature | 180 °F |
| Output Shaft Size | Spline shaft |
| Overall Height | 5.79 in |
| Overall Length | 17.74 in |
| Overall Width | 5.91 in |
| Seal Type | Standard |
| Operation Mode | Continuous Rating - Motor May Be Run Continuously At These Ratings. / Intermittent Operation - 10 Percent Of Every Minute / Peak Operation - 1 Percent Of Every Minute |
| Drain Connection Size |
1 1/4 inch Split Flange
|
PARAMETERS
| Displacement | cc/rev | 345 | 480 | 665 | 940 |
| Max. Speed* | rpm | 501 | 354 | 254 | 179 |
| Flow | lpm | 170 | 170 | 170 | 170 |
| Torque* | Nm | 1040 | 1475 | 2085 | 2700 |
| Press. ∆bar** | bar | 205 | 205 | 205 | 190 |
Eaton similar type motors are available we belows:
HANJIU TECHNOLOGY sells all kinds of high-torque hydraulic motors. when you meet any problems during use, you can always contact HANJIU, our expert will give you help
