Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Orbital Motors | Displacement: | 36cc,50cc,80cc,100cc,125cc,160cc......500cc |
|---|---|---|---|
| Applications: | Sweepers, Road Sweepers | Replacement: | Hanjiu BMR = OMR, Eaton S,T Series , M+S MR Etc |
| Max.torque: | Peak 270 N.M | Max.flow: | Cont 60/int.75 L/min |
| High Light: | Hydraulic Drive Motor For Sweepers,Hydraulic Drive Motor Omr 200,Hydraulic Drive Motor Omr 250 |
||

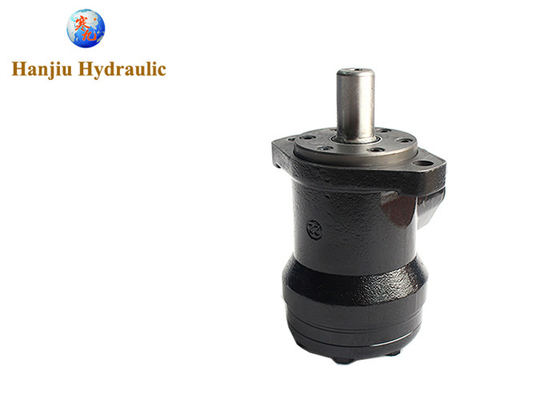

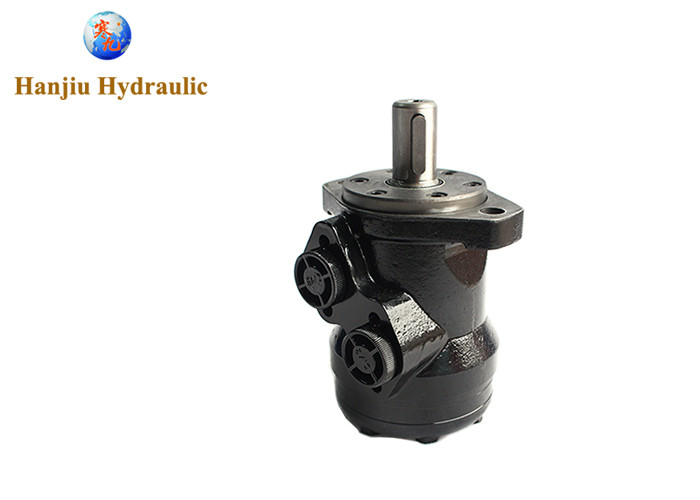

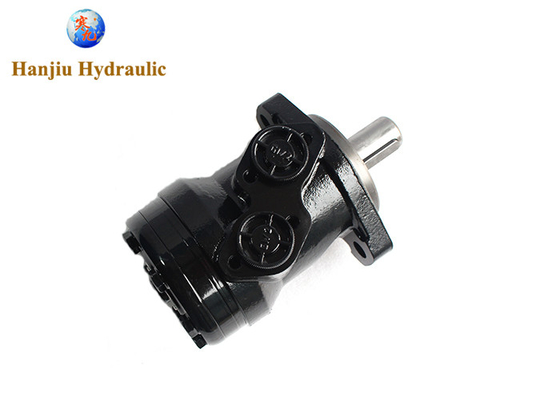

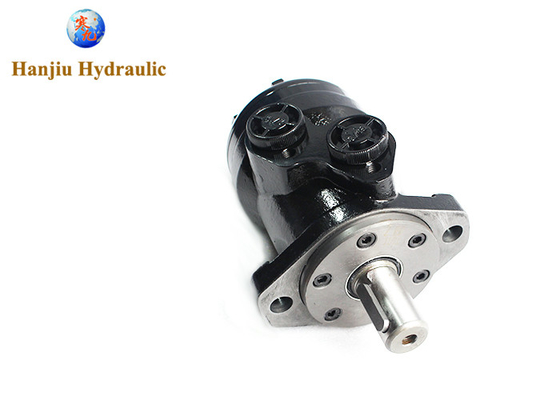

Side brush hydraulic drive motor omr 200/omr 250 for sweepers
Hanjiu Technology supply BMR series hydraulic orbit motors for sweepers, road sweepers, sweeper attachments
like the brand Bucher/Ravo/Johnston/Scarab/Schmidt/Brock/Hako/Azura
the oribt motors have low speed and high torque, perfect fit the machines' hydraulic systems
bring the new performance to the machines,and cut the equipments manufacturer costs.
Fit the OME CODE
| Bucher | 15050495-0 |
| 15054116-2 | |
| 75611314 | |
| Ravo | RAV4060020 |
| RAV5060590 - | |
| Johnston | 99972-1 |
| 72250-2 | |
| 40550-1 | |
| Scarab | SCA010566 |
| SCA010749 | |
| SCA013527 | |
| Schmidt | 5171178 |
| 1297601557 | |
| Brock | 0290400027 |
| Hako | 01081550 |
| 151-0452 | |
| Azura | MAT1003013 |
Product details:
| product type | BMR motors |
| displacement | 200cc,250cc |
| flange | 2-φ13.5Rhomb-flange pilot φ82.5x8 |
| shaft | 25.4mm key shaft |
| oil ports | G1/2 manifold mount 4-M8,G1/4 |
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR BMRS 36 |
BMR BMRS 50 |
BMR BMRS 80 |
BMR BMRS 100 |
BMR BMRS 125 |
BMR BMRS 160 |
BMR BMRS 200 |
BMR BMRS 250 |
BMR BMRS 315 |
BMR BMRS 375 |
|
| Geometric displacement (cm3/rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Hanjiu Technology supply the high-end hydraulic orbital motors, widly used on sweepers, tractor attachments, loader attachments,
we will do our best to supply the machines manufacuturers, to improve their machines hydraulic systems, cut their costs down
and provide the solutions once they meet some problmes .
