Danfoss RE 505/506 Series Medium Duty Hydraulic Motor 4 Hole Magneto Mount Aligned Ports

Name: Danfoss RE 505/506 Series Medium Duty Hydraulic Motor 4 Hole Magneto Mount Aligned Ports
Brand: HANJIU
SKU: BMER-2-230
Rating: 4.8 (169 reviews)

Large Image : Danfoss RE 505/506 Series Medium Duty Hydraulic Motor 4 Hole Magneto Mount Aligned Ports

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMER-2-230

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to get a quote
Packaging Details:	Box, Pallet
Delivery Time:	55 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Item:	Torqmotor	OEM #:	505230A3822AAAAA
Manufacturer:	Hanjiu	Displacement:	230 Ml/r
Mounting Flange:	4-Hole Front Aligned Ports 1/2” BSP.F	Shaft Type:	31.75mm,Tapered Shaft
High Light:	Danfoss RE 505 Hydraulic Motor , Medium Duty Hydraulic Motor 4 Hole , Danfoss RE 506 Hydraulic Motor

Danfoss RE 505/506 Series Medium Duty Hydraulic Motor 4-Hole, Magneto Mount, Aligned Ports

HANJIU supply the high Torqmotors BMER Series orbit motors matching white/danfoss/cross series motors, the same function,same specification, 100% interchangeable.

Details specifications

Series:	RE505230A3822AAAAA
Shaft:	31.75mm,tapered shaft
Rotation:	Standard
Displacement (cm3/rev):	230
Mounting:	4-Hole Magneto Aligned Ports 1/2” BSP.F
Geometric Displacement:	230cm3/rev (14.2 in3/rev)
Maximum Speed:	365 rev/min
Maximum Oil Flow (continuous / intermittent):	70lpm /85 lpm
Max. Differential Pressure (continuous / intermittent):	20.5mpa/ 24mpa
Maximum Torque - Continuous / Intermittent:	625cont. / 710int.
Maximum Performance:	19 KW

Main Specifications:

Type		BMER-2 125	BMER-2 160	BMER-2 200	BMER-2 230	BMER-2 250	BMER-2 300	BMER-2 350	BMER-2 375	BMER-2 475	BMER-2 540	BMER-2 750
Geometric displacement (cm3 /rev.)		118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm)	cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm)	int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N*m)	cont.	325	450	530	625	700	810	905	990	1085	980	1050
	int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
	peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW)	cont.	12.0	15	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW)	int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	15.0	10.0
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
	int.	24	24	24	24	24	24	24	24	19	17.5	12
	peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min)	cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min)	int.	60	75	85	85	90	95	95	90	90	90	90

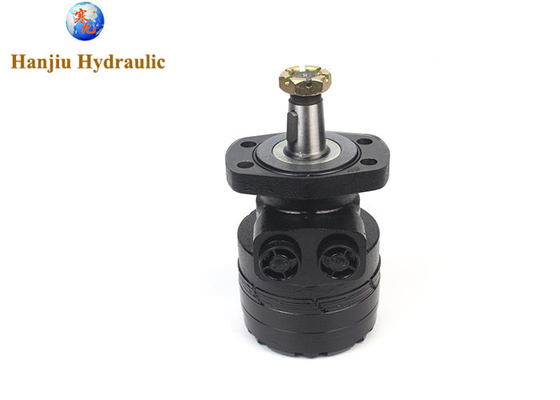

Danfoss RE 505/506 Series Medium Duty Hydraulic Motor 4 Hole Magneto Mount Aligned Ports 0

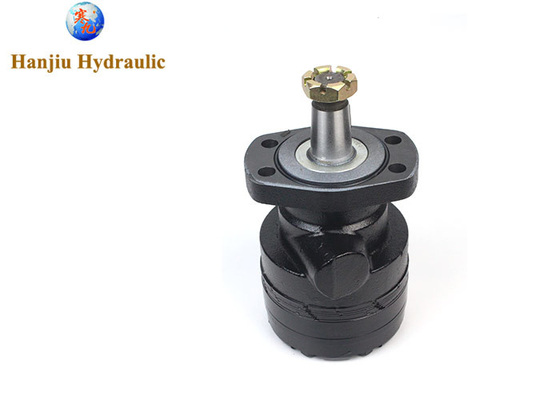

Danfoss RE 505/506 Series Medium Duty Hydraulic Motor 4 Hole Magneto Mount Aligned Ports 2

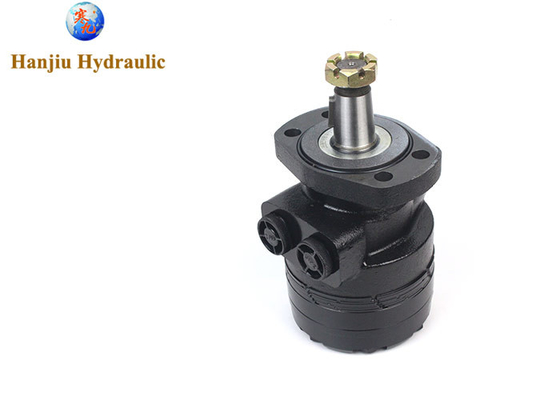

Danfoss RE 505/506 Series Medium Duty Hydraulic Motor 4 Hole Magneto Mount Aligned Ports 3

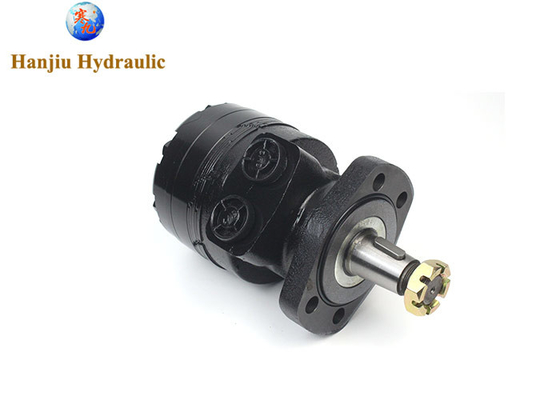

Danfoss RE 505/506 Series Medium Duty Hydraulic Motor 4 Hole Magneto Mount Aligned Ports 4

Typical application:

Medium-duty wheel drives, augers, mixers, winch drives,

swing drives, grapple heads, feed rollers, broom drives

and more
