Product Details:
Payment & Shipping Terms:
|
| Product: | Hydraulic Motor | Model No.: | BMER-2-250-WD-FD1-FY |
|---|---|---|---|
| Size: | 250 Ml/r | Flange: | Wheel Mount |
| Port: | G 1/2 | Shaft: | 31.75mm Spline Shaft 14T |
| Rotation: | Standard | Color: | Black |
| Feature: | With Valve Cavity | More Size: | 125 - 750 Ml/r Available |
| High Light: | Wheel Mount parker lsht motors,LSHT Motor BMER,Wheel Mount lsht hydraulic motor |
||

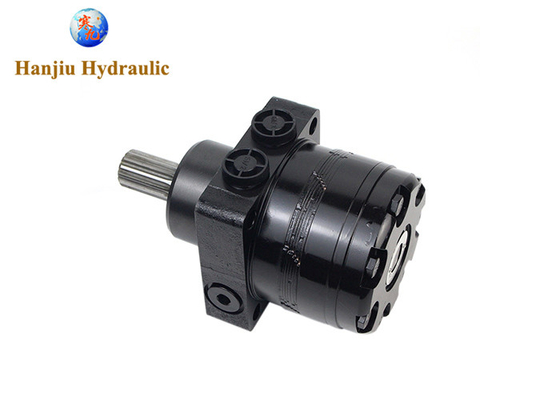

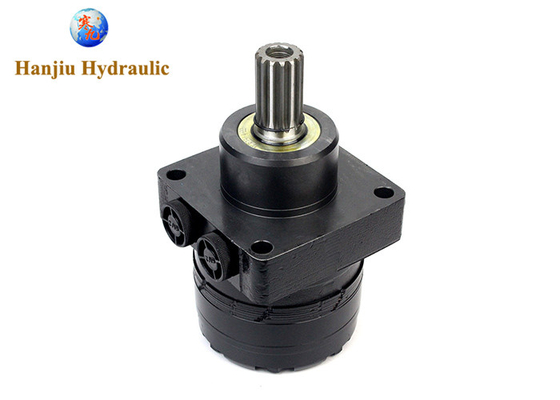

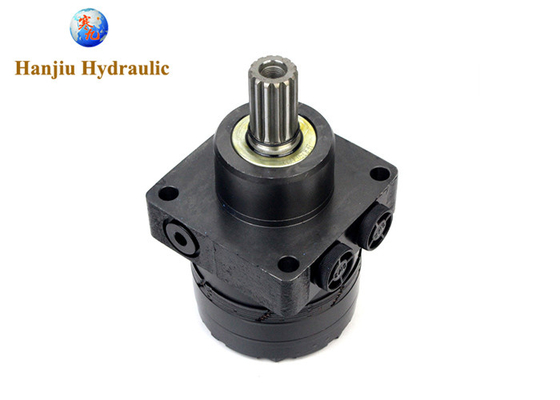

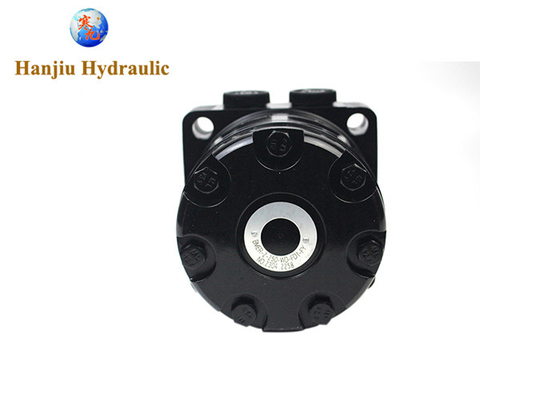

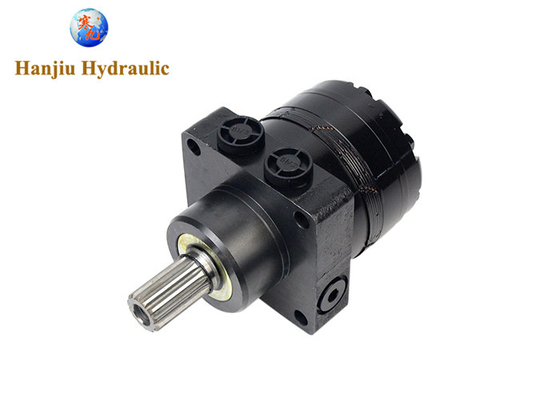

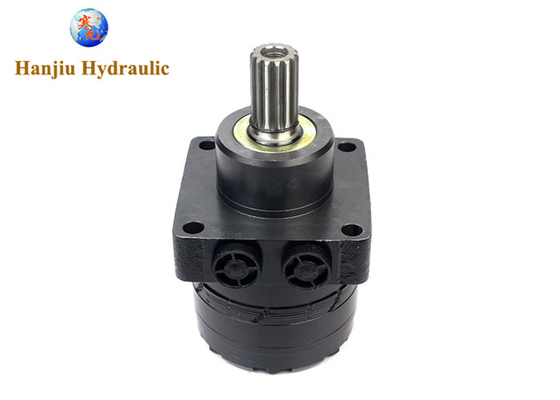

New Design Parker TF0250 wheel mount replacement LSHT motor BMER with Valve cavity
Quick review:
Hanjiu BMER = Parker TF
| Product | Hydraulic Motor |
| Model No. | BMER-2-250-WD-FD1-FY |
| Size | 250 ml/r |
| Flange | Wheel Mount |
| Port | G 1/2 |
| Shaft | 31.75mm spline shaft 14T |
| Rotation | Standard |
| Color | Black |
| More size |
125ml/r,160 ml/r, 200 ml/r, 230 ml/r, 250 ml/r, 300 ml/r, 350 ml/r, 375 ml/r 400 ml/r, 475 ml/r, 540 ml/r, 650 ml/r, 750 ml/r |
FEATURES:
Mounting Flange: SAE A 2-bolt; 4-bolt (Magneto); 4-bolt square flange; wheel mount.
Displacement Range (cm3/rev.): 125cc - 750cc
Max. Speed (RPM): 120-1500 Cont.
Max. Differential Pressure (PSID): 2030 PSI
Shafts Options: Parallel shaft (keyed), splined shaft and tapered shaft (see details)
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
Dimention:
More BMER series to match Parker TF series
More Parker replacement motor available:
More displacement, flange and shaft versions available:
Hanjiu technology is the leading hydraulic orbit motors manufacturer from China, we have experienced engineers who are engaged in this field on more than 20years, and knowing well of Danfoss/M+S/Charlynn/Parker motor...we have our own design and tech department, Hanjiu has a lot of advanced equipments, so We can continuously innovate, improve, expand product range and increase production capacity.
we are not supply the service to hydraulic products distributors, fluid power company, but also supplying for machines manufacturer. our products can be totally fitting your machines, the better price can be lower your costs and bring your products more competitive.we hope to build a long business relationship to solve your problems and make you become stronger.
