| Product: | Light Duty Gerotor Motor | Model No.: | BMJ-375 |
|---|---|---|---|
| Displacement: | 375cc | Flange: | Wheel Mount |
| Shaft: | 25.4mm SAE 6B | Port: | G 1/2 |
| Rotation: | Standard | Color: | Black |
| Manufacturer: | Hanjiu | Brand: | Hanjiu |
| High Light: | Turf Equipment Gerotor Hydraulic Motor,Light Duty Gerotor Hydraulic Motor,SAE 6B Gerotor Motor |
||

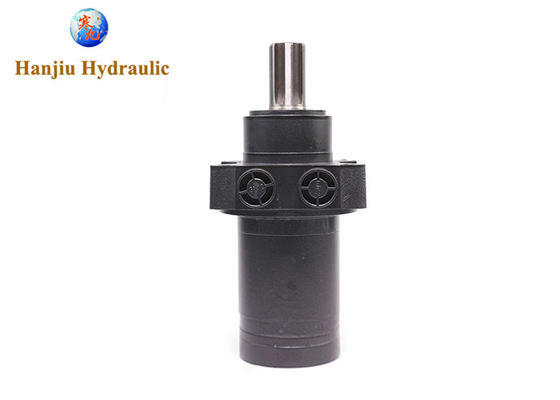

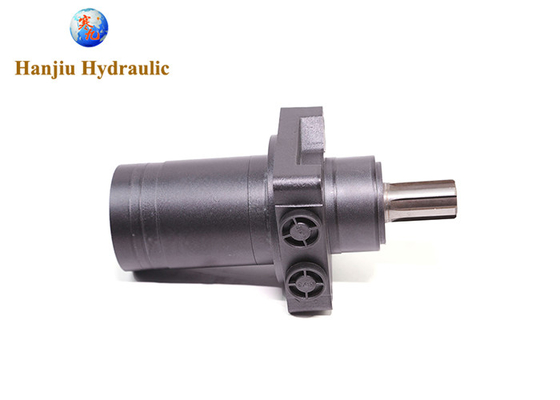

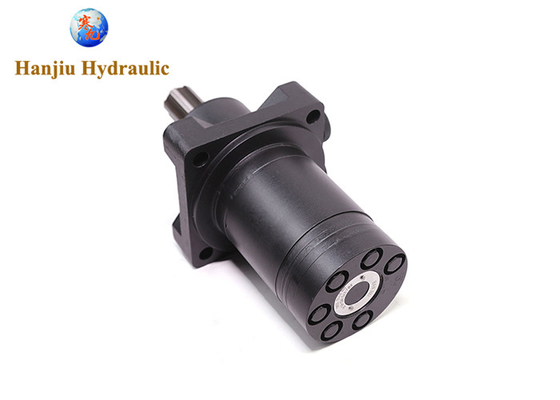

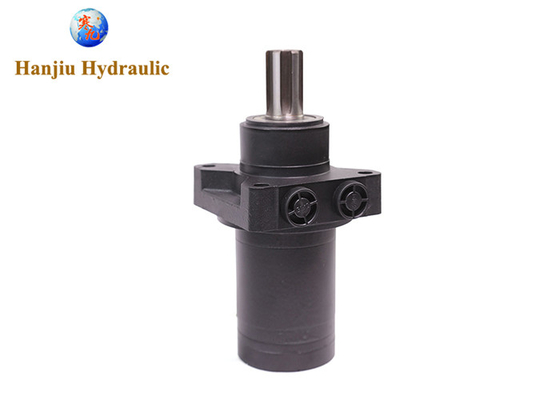

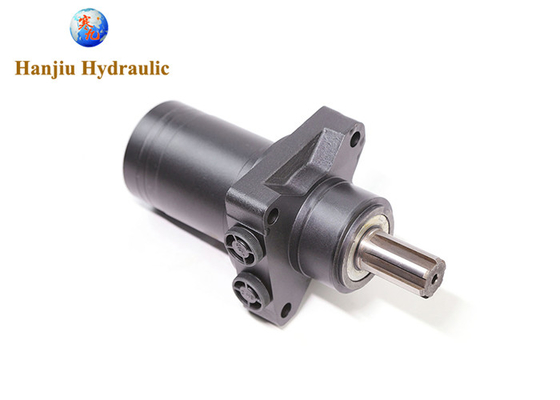

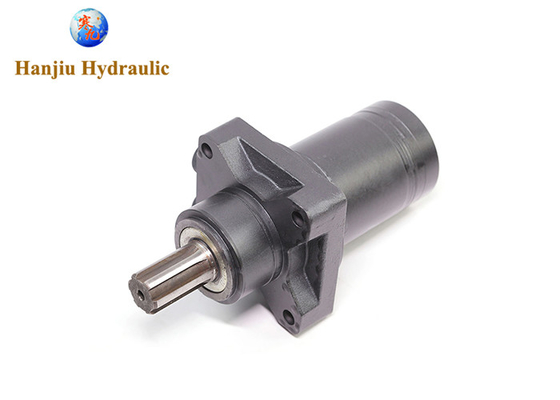

Turf equipment Light Duty Gerotor Motor, Wheel Motor 375 ml/r, SAE 6B
Quick review:
Hanjiu BMJ-375 apply to Turf equipment
Also BMJ series with more mounting and shaft apply to Scissors lifts, Boom lifts, mowers, Greens mowers, Sand trap rakes, Railroad maintenance equipment, Industrial sweepers and floor polishers, Skid steer attachments and many more.
Specification:
- Displacement: 375cc
- Flange :wheel Ø60.3*7mm
- Shaft: key 25.4 mm SAE 6B
- Ports: G 1/2
- Drain port: G 1/4
Specification:
| Type | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Displacement (cm3/rev.) | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N• m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max.pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 16.5 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 |
|
Dimentions:
