Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Orbital Motors | Displacement: | 160CC |
|---|---|---|---|
| Applications: | Sweepers, Road Sweepers | Replacement: | Hanjiu BMR = OMR, Eaton S,T Series , M+S MR Etc |
| Max.torque: | Peak 270 N.M | Max.flow: | Cont 60/int.75 L/min |
| High Light: | omr160 hydraulic orbit motor,2 bolts hydraulic orbit motor,g1/2 orbit motor |
||

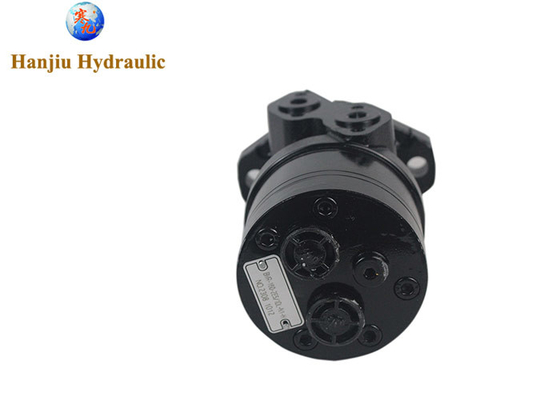

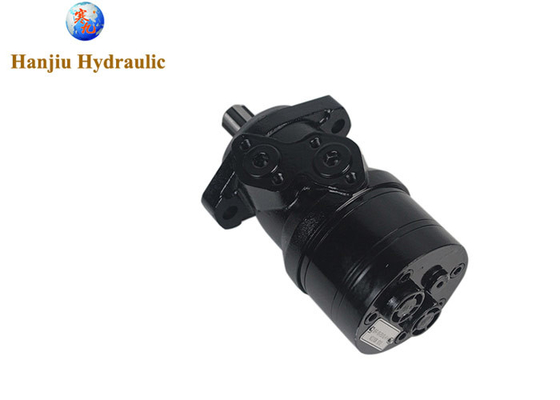

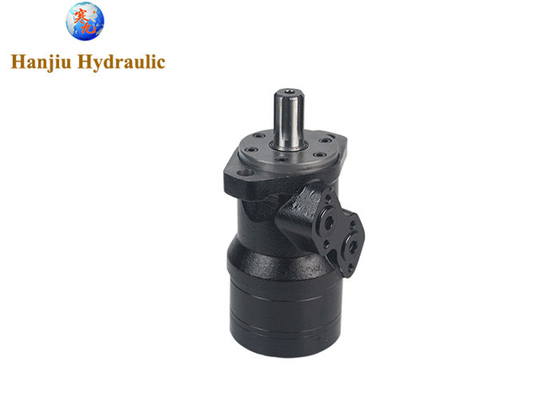

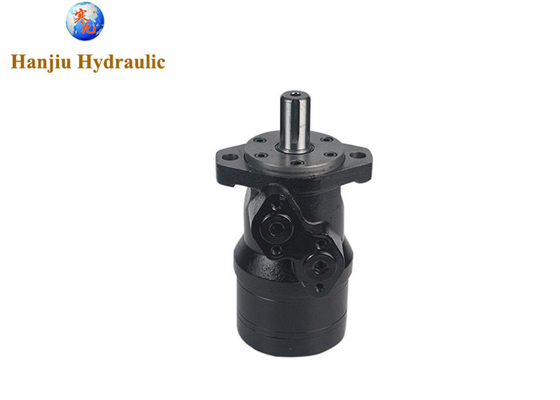

OMR160 Hydraulic orbit motor,2 bolts flange 25.4mm spline shaft, G1/2 BSPP rear ports
Product details:
| product type | BMR motors,OMR160,MR160 spool valve motor |
| displacement | 160cc |
| flange | 2-φ13.5 Rhomb-flange pilot φ82.5x8 |
| shaft | SAE 6B shaft |
| oil ports | G1/2 manifold mount 4-M8,G1/4 |
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3/rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Hanjiu Technology supply the high-end hydraulic orbital motors, widly used on sweepers, tractor attachments, loader attachments,
we will do our best to supply the machines manufacuturers, to improve their machines hydraulic systems, cut their costs down
and provide the solutions once they meet some problmes .
