| Type: | Hydraulic Bearingless Motor | Manufacturer: | HANJIU |
|---|---|---|---|
| Model No.: | Bmsys 100 | Replace: | DANFOSS OMSS,m+s=MSS |
| Shaft: | 12 Teeth Spline Shaft | Oil Port: | G1/4 |
| Drain: | G1/2 | Application: | Mining Machinery |
| High Light: | mss 160 hydraulic motor,mss 160 series hydraulic motor,mining machinery hydraulic motor |
||

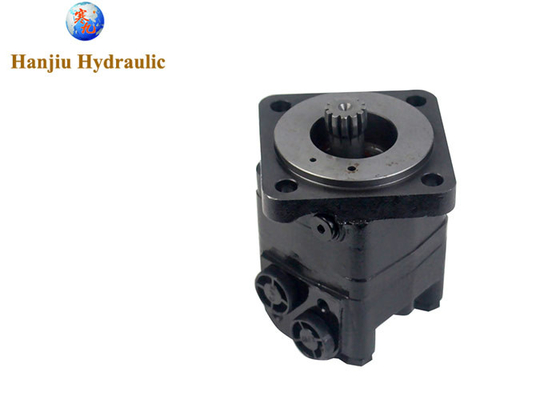

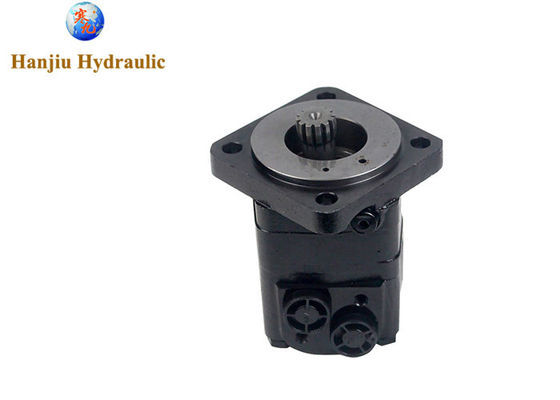

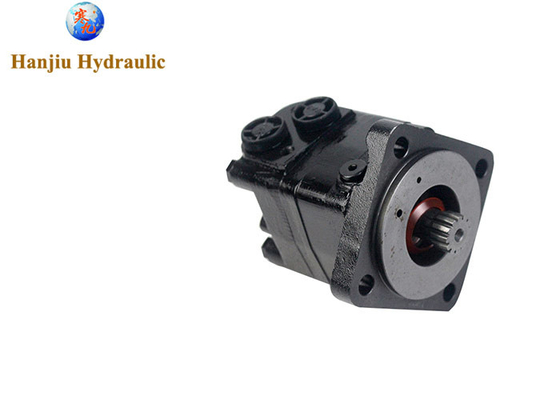

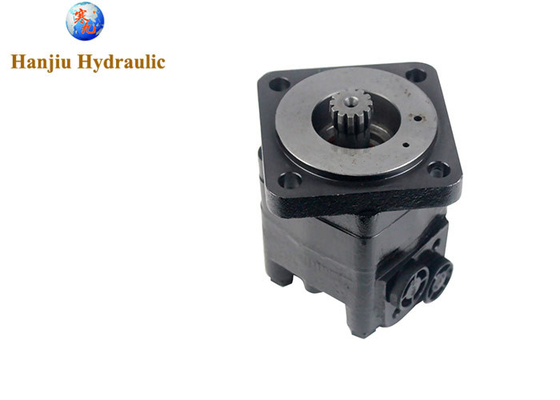

MSS 160 Series Hydro Motor MSS 160 Hydraulic Motor 159.7Cm³ Hydromotor for mining machinery
Splined shaft 12 spline 12/24 (Ø27.6mm)
Flange 4 bolt Ø127
Lateral port 1/2 BSP -
Drain port 1/4BSP
| Type | BMSYS 80 |
BMSYS 100 |
BMSYS 125 |
BMSYS 160 |
BMSYS 200 |
BMSYS 250 |
BMSYS 315 |
BMSYS 400 |
BMSYS 475 |
||
| Displacement (cc/rev) |
80.6 | 100.8 | 125 | 154 | 194 | 243 | 311 | 394 | 475 | ||
| Max speed rate (rpm) | cont | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 | |
| int | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | ||
| Max torque (N.m) |
cont | 225 | 290 | 365 | 485 | 586 | 708 | 880 | 880 | 910 | |
| int | 250 | 320 | 400 | 540 | 645 | 806 | 960 | 960 | 960 | ||
| Max output (KW) |
cont | 16 | 18 | 18 | 18.1 | 18.1 | 18 | 17 | 11 | 9 | |
| int | 20 | 22 | 23 | 24 | 24 | 23.8 | 20.2 | 12 | 11 | ||
| Max pressure Drop(Mpa) |
cont | 20.5 | 20.5 | 20.5 | 21 | 21 | 20 | 20 | 16 | 14 | |
| int | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 17.5 | 15 | ||
| Max.flow (L/min) |
cont | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| int | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | ||
| Weight(kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.2 | 14.3 | ||
Hydraulic motors are mechanical devices that convert hydraulic energy into mechanical energy. They are widely used in various industries such as construction, mining, agriculture and transportation.
There are different types of hydraulic motors, including piston motors, gear motors, and vane motors. Each type has specific characteristics and applications.
Hydraulic motors work using the principle of hydraulic pressure. Hydraulic fluid is pressurized and sent to the engine, where it pushes against moving parts, such as pistons or vanes, to create mechanical movement. The movement generated by the hydraulic motor can be used to drive machines and equipment, such as cranes, excavators, presses and many others.
One of the main advantages of hydraulic motors is their ability to provide high torque at low speeds. This makes them ideal for applications that require strength and precision, such as operating heavy cranes or moving large loads. Furthermore, hydraulic motors are compact and can be easily integrated into existing systems.
Another advantage of hydraulic motors is their ability to operate in extreme conditions, such as high temperatures, corrosive environments and high pressures. This makes them ideal for use in industries where working conditions are challenging.
However, hydraulic motors also have some disadvantages. They require a complex hydraulic system, which includes pumps, valves and piping. Additionally, hydraulic fluid needs to be filtered and kept clean to ensure the engine runs smoothly. This maintenance can be expensive and time-consuming.
In conclusion, hydraulic motors are essential devices in various industries. They provide high torque at low speeds and can operate in extreme conditions. However, they also require a complex hydraulic system and regular maintenance. As technology advances, hydraulic motors are expected to become more efficient and easier to maintain in the future.
HANJIU brand hydraulic motors, hydraulic valves and hydrostatic orbitrol are affordable and of good performance.
