Product Details:
Payment & Shipping Terms:
|
| Product: | Brake Hydraulic Motor | Replace: | Danfoss Brake Motors |
|---|---|---|---|
| Apply To: | Platforms,hydraulic Scissor Lift | Displacement: | 1150 TORQUE |
| Out Put Shaft: | Ø38.1 Cone-Shaft 1:8. | Replacement: | Danfoss Brake Motor |
| High Light: | 96257GT hydraulic drive motor,Scissor Lift Brake hydraulic drive motor |
||

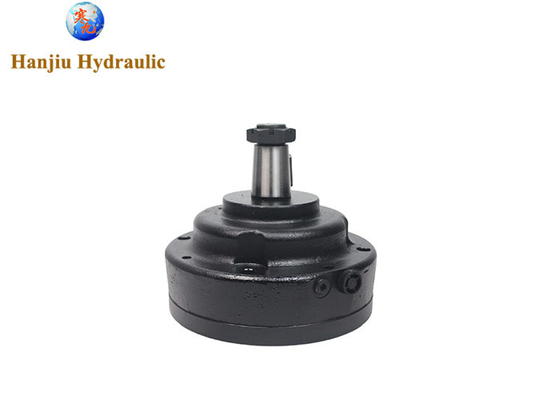

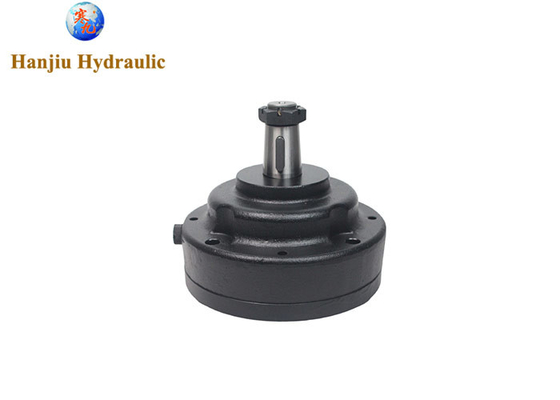

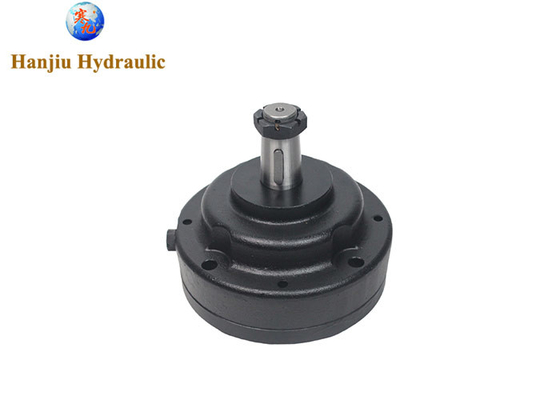

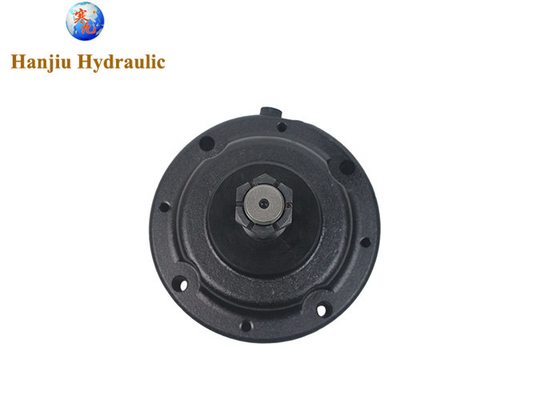

Hydraulic Drive Motor 96257GT for Genie Scissor Lift Brake GS2032 GS3232 GS2632
Hanjiu Technology supply the BK10 series hydraulic brake motor for Genie Scissor Lift
OEM quaity, fast leading time
Specifications/ Technical Data:
Holding Torque 10,000 in.lbs.
Release Pressure 400 PSI
Max Pressure 3,000 PSI
Release Volume 0.7 cu.in.
Speed 250 RPM max.
Shaft 1-3/8" tapered w/threaded end
Port SAE 4
Mount 4 holes on 7" B.C. w/4" pilot
Size 7-7/8" dia. x 2"
Shpg. 40 lbs. lbs.
Reliable and genuine hydraulic components for your construction equipment.
We offer various models from known brands as Haulotte, JLG, Skyjack, Genie, Snorkel, and many others.
| Item | BK10-1 | BK10-2 |
| Min. Static Torque [Nm] | 1150 | 1700 |
| Release Pressure [MPa] | 2.8 | 2.8 |
| Max. Release Pressure [MPa] | 21 | 21 |
| Max. Speed [rpm] | 300 | 300 |
| Release Volume [cm3 ] | 12 | 12 |
| Oil Volume [cm3 ] | 100-120 | 100-120 |
| Max. Pressure of Lubrication oil port [MPa] |
0.05 | 0.05 |
| Weight [kg] | 18 | 20 |
HANJIU is an expert in hydraulic motors.We have multipal hydraulic wheel motors for different types of Scissor Lift ,platforms.
HANJIU orbit motors have complete specifications, fast manufacturing, reasonable prices and fine quality.
HANJIU enthusiastically looks forward to working for all the hydraulic distributors and equipment manufacturers
