Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Motor | Model No.: | BMSY-160-E6-FE |
|---|---|---|---|
| Flange: | 6 Hole | Shaft: | Spline Shaft |
| Ports: | Rear Port | Speed: | 470 - 560 Rpm |
| Torque: | 316-472 Nm | Max Pressure Drop: | 15-21 MPa |
| Max Flow: | 75 - 90 Lpm | ||
| High Light: | 007320-60005 hydraulic orbit motor,hydraulic orbit motor 007320-60005,007320-60005 orbit motor |
||

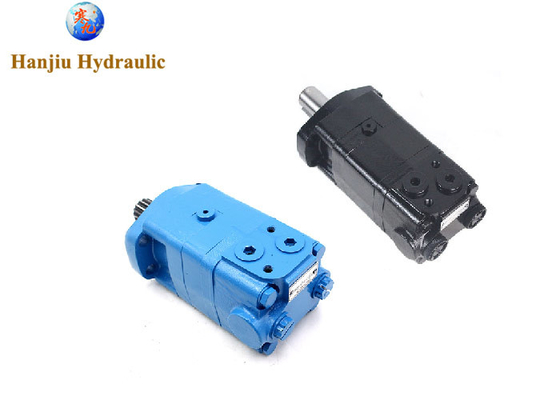

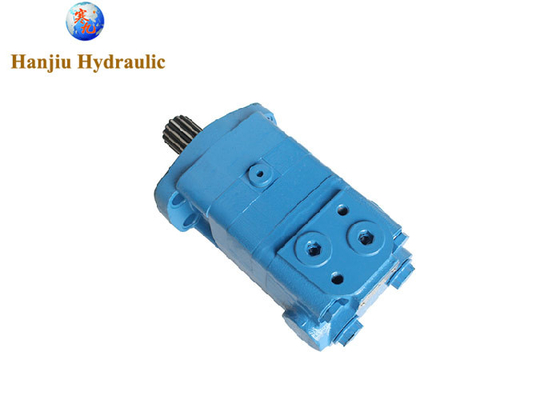

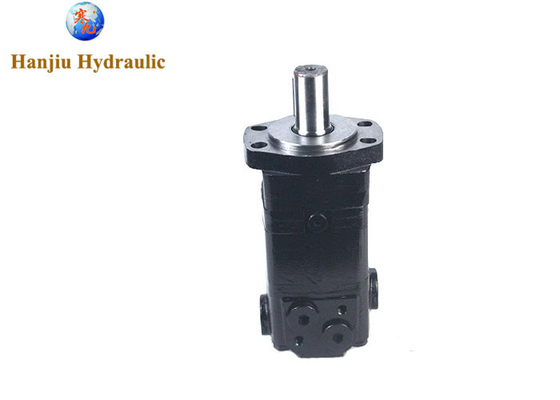

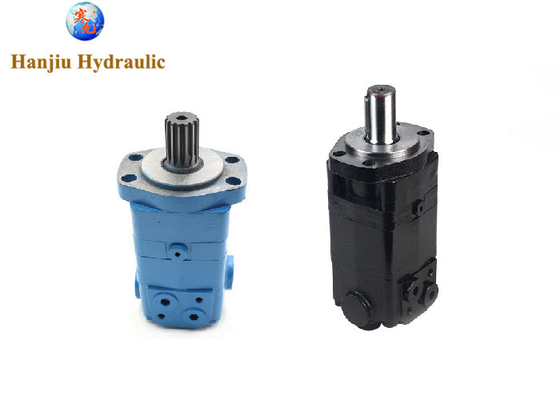

007320-60005 Hydraulic Orbit Motor for Furukawa Eaton 2-160AB6D1-E
Quick review:
Item , Hydraulic Motor
Model No.:2-160AB6D1-E
Flange , 6 hole
Shaft , 14teeth spline shaft
Ports , 7/8-14 O-ring,rear ports
Displacement , 160cc
Speed , 470-560 rpm
Torque ,316-472 Nm
Max pressure drop , 15-21 MPa
Max Flow , 75 - 90 Lpm
BMSY introduction:
This motor is a hydraulic disc motor, because it's widely used on kind of drills of Agricultural,Farm, Construction, Industrial and heavy machineries. it has numerous applications at any rolling, lifting, conveying applications. It's also called orbit hydraulic motor, or orbital motor, or Low Speed High Torque type motor, also disc valve hydraulic motors.
| Main Specifications: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
* Continuous pressure :Max. value of operating motor continuously. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HANJIU Technology supplys the hydraulic pumps, hydromotors and hydraulic valves you need from China. You can contact us for the hydraulic motor whose product original code starts with 007320-60005. Additionally, if you are looking for a product that is not on the list, you can request a product from our contact page or my Whatsapp line.
