| Product: | Low Speed High Ttoque Hydraulic Motor | Model No.: | BMER-2-750-TS-T4 |
|---|---|---|---|
| Size: | 750 Ml/r | Flange: | 4-bolt Wheel |
| Shaft: | 31.75mm | Rotation: | CCW |
| Port: | 7/8-14 O-ring | Manufacturer: | Hanjiu |
| High Light: | BMER-2 low speed hydraulic motor,750ml/R low speed hydraulic motor,4-Bolt high torque hydraulic motor |
||

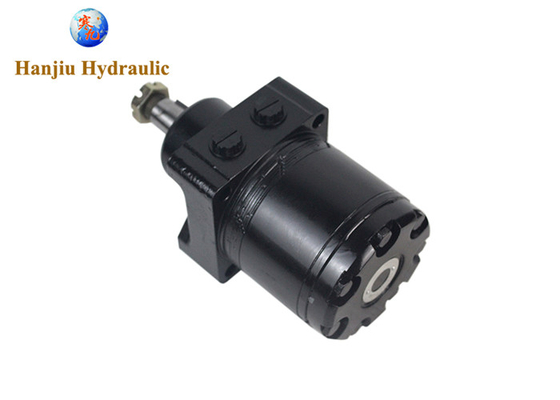

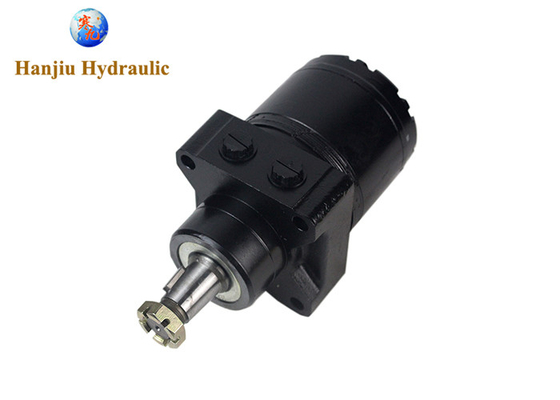

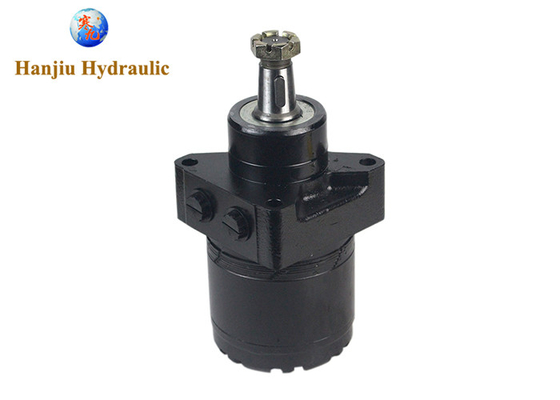

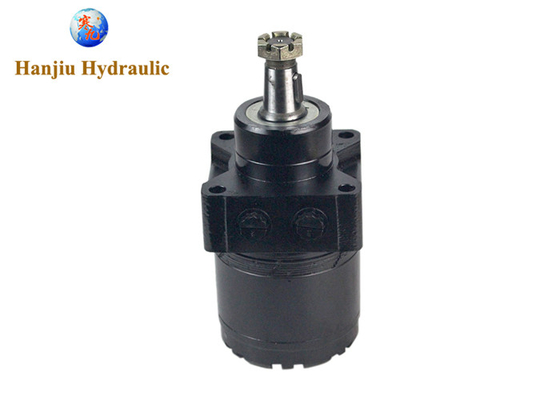

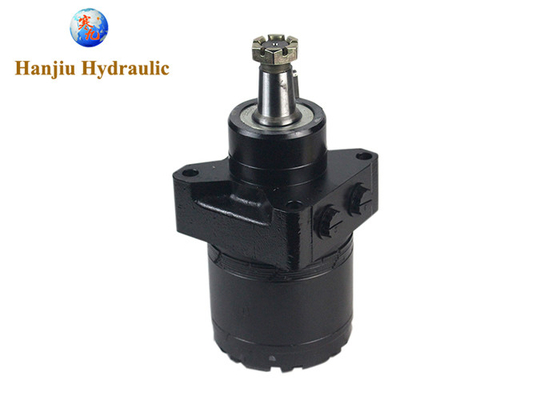

BMER-2 Hydraulic Motor, 750ml/r 4-bolt Wheel Flange 31.75mm cone shaft
Quick review:
Model no.: BMER-2-750-TS-T4
| displacement | 750 ml/r |
| flange | 4-13.5 mount |
| pilot | 82.55*5 |
| ports | 7/8-14 O-ring |
| output shaft | 31.75mm cone shaft |
| rotation | standard |
| paint | black |
BMER series motor adapt the advanced Geroler gear set designed with high speeddistribution flow and high pressure,and have good stability in low speed , and can keep highvolume efficiency. The unit can be supplied the individual variant in operating multifunction inaccordance with requirement of applications.
Characteristic features:
* Advanced manufacturing devices for the Geroler gear set,which use low pressure ofstart-up, provide smooth and reliable operation and high efficiency.
*The output shaft adapts in needle roller bearings that permit high axial and radial forces.The Caase can offers capacities of high pressure and high torque in the wide of applications.
*Advanced design in high speed distribution flow, which can automatically compensate inoperating with high volume efficiency and long life , provide smooth and reliable operation.
*Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster thanshaft speed. lt make the distribution in a high precision reduces life-cycle cost,maintain highvolume efficiencies and can run very smoothly at low speed, gear box not required.
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
More BMER series motors available:
