Product Details:
Payment & Shipping Terms:
|

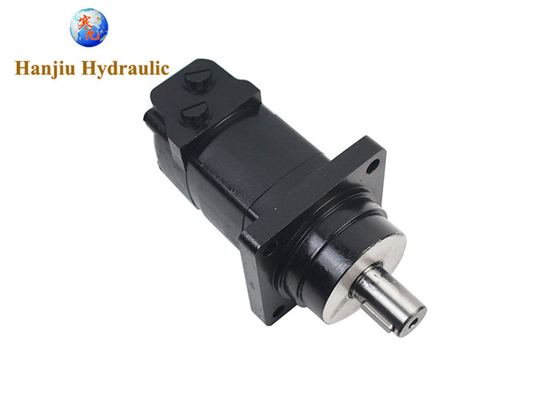

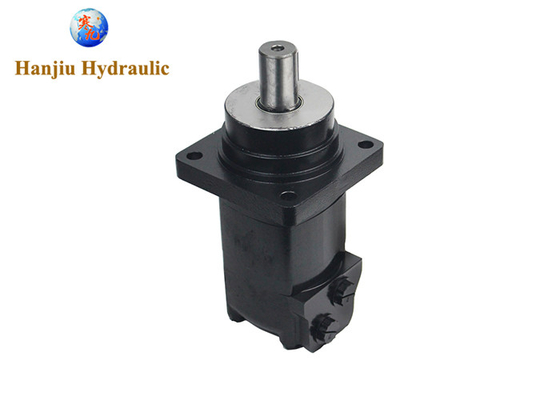

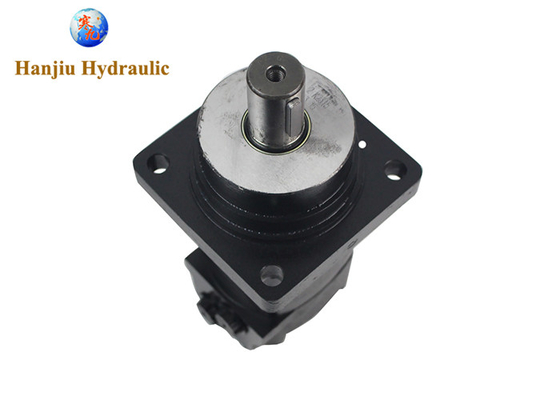

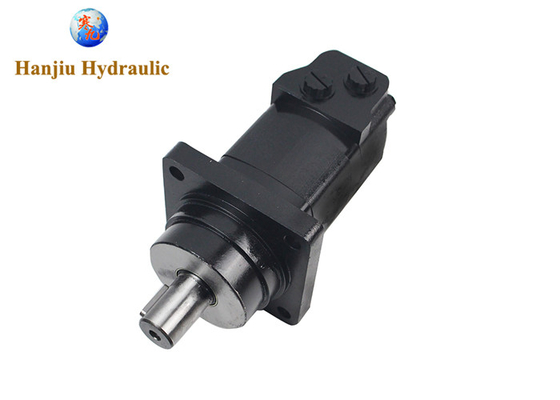

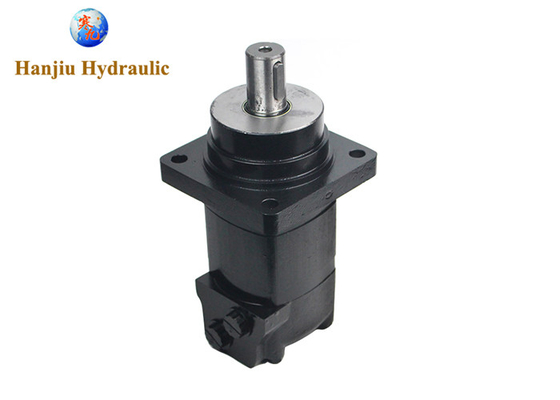

| Type: | Hydraulic Motor | Brand: | HANJIU |
|---|---|---|---|
| Model No.: | BMK2-315-WE-G-SU | Displacement: | 315ml/r |
| Flange: | Wheel Mount | Port Size: | 7/8-14UNF O-RING |
| Drain Line: | 7/16-20UNF | Shaft: | 31.75mm |
| Speed: | 246 - 365 Rpm | Torque: | 765 - 885 Nm |
| High Light: | 31.75mm Hydraulic Motor ASSY,wheel mount flange Hydraulic Motor ASSY,BMK2-315-WE-G-SU Hydraulic Motor ASSY |
||
Quick review:
Model No.: BMK2-315-WE-G-SU
| displacement | 315ml/r |
| speed | 246 - 365 rpm |
| torque | 765 - 885 nm |
| mounting | 4 boltm wheel mount |
| shaft | 31.75mm straight |
Main specifiction:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) |
65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
Measurement:
More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:
More Char-lynn version hydraulic motors available:
About Hanjiu:
From China, design, develop and manufacture hydraulic orbital motors. Shipped to all over the world, customers use Hanjiu hydraulic motors directly as compatible motors for Danfoss, M+S, Eaton, Parker, White, Dana Brevini. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with Hanjiu. If you are hydraulic motor importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.
