Product Details:
Payment & Shipping Terms:
|
| Type: | Orbital Hydraulic Motor | Brand: | Hanjiu |
|---|---|---|---|
| Model No.: | OK-050-2-A-D | Displacement: | 50 Cc/r |
| Max Speed: | 780 Rpm | Max Torque: | 100Nm Cont. |
| Max Output: | 9KW Cont. | Max Oil Flow: | 14 L/min |
| More Displacement: | 36 Cc/r - 375 Cc/r | ||
| High Light: | LSHT Hydraulic Motor,Parker Hydraulic Motor,Nichols Hydraulic Motor |
||

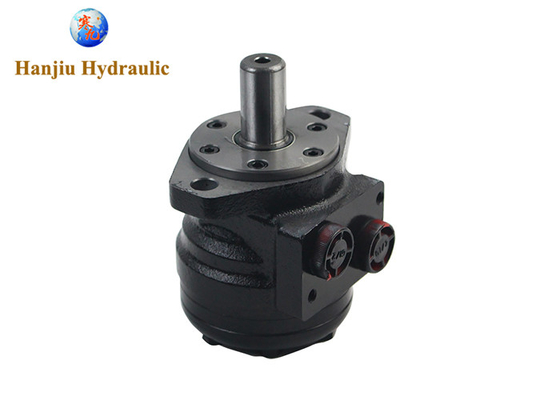

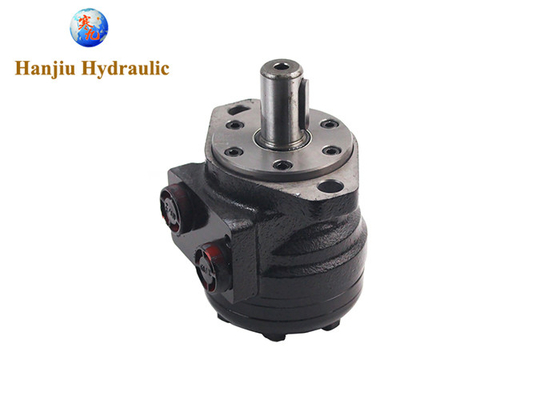

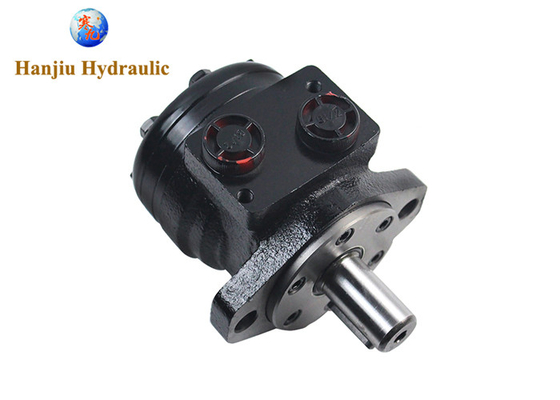

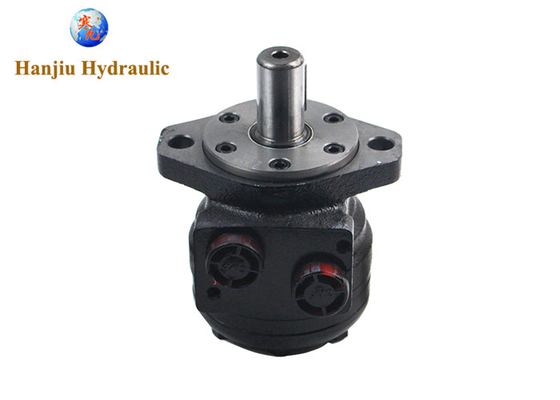

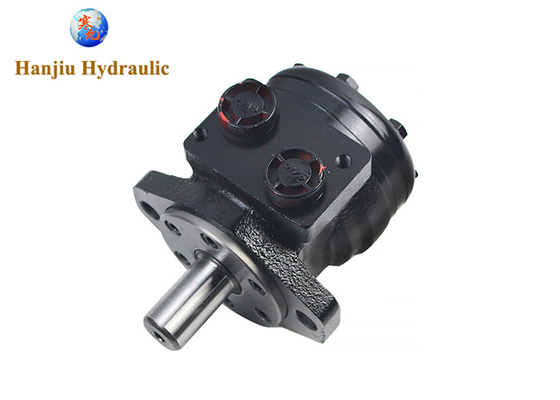

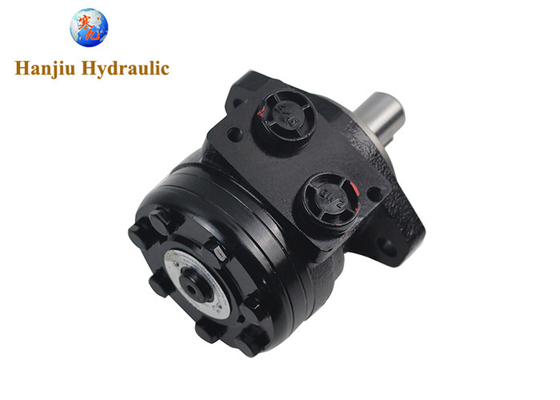

Parker 110A Hydraulic Motor 50 Ml/R 25mm Shaft Port G 1/2
Quick details:
OK-050-2-A-D
| Product | Orbital Hydraulic Motor |
| Model No. | OK-50-2-A-D |
| Flange | 2 bolt mounting |
| Shaft | straight 25mm, parllel key 8*7*32 |
| Port | Manifold G1/2, 4-M8, G1/4 |
Specification:
| Code | Displacement/ [cm/rev] |
Max.Speed/ [rpm] |
Max.Torque/[Nm] | Max.output/[kW] | Max.pressure/[MPa] | Max.Oil Flow[L/min] | |||
| cont. | cont. | int. | cont. | int. | cont. | int. | cont. | ||
| OK 36 | 36 | 1111 | 66 | 83 | 9 | 10.4 | 14 | 17.5 | 40 |
| OK 50 | 51.7 | 780 | 100 | 129 | 9 | 10.4 | 14 | 17.5 | 40 |
| OK 80 | 81.5 | 744 | 158 | 196 | 10.4 | 12.6 | 14 | 17.5 | 60 |
| OK 100 | 102 | 595 | 200 | 242 | 10.8 | 12.8 | 14 | 17.5 | 60 |
| OK 125 | 127.2 | 480 | 248 | 298 | 10.8 | 12.5 | 14 | 17.5 | 60 |
| OK 160 | 157.2 | 382 | 315 | 384 | 10.4 | 11.5 | 14 | 17.5 | 60 |
| OK 200 | 194.5 | 301 | 339 | 419 | 8.8 | 10.2 | 12.5 | 15.5 | 60 |
| OK 250 | 253.3 | 238 | 403 | 474 | 8.1 | 9.4 | 11 | 14 | 60 |
| OK 315 | 317.5 | 191 | 398 | 498 | 7.4 | 7.8 | 9 | 12.5 | 60 |
| OK 375 | 381.4 | 162 | 373 | 466 | 6.2 | 7.1 | 7.5 | 9 | 60 |
Features:
Applications:
This OK series hydraulic motors is a slow speed high torque type hydraulic motors, they are widely used on Farmland irrigation winch, Towing and mooring winches, Cable Laying winch, Oceanographic research winch, Nautical equipment and winches for fishing boats, Winch as an anchor, Capestani, Special systems for subsea pipelay, Winch Wood from deforestation, Wood processing and cutting machines, Agricultural and forestry machinery, Construction machinery and platform, Ground care and Mowing machinery, etc.
The company Hanjiu is strong at Parker replacement LSHT motors, include:
Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China we have the most completely range of them, matching Danfoss / M+S / Charlynn / White / Parker... with fast leading time, excellent price and best service. our aim is to make your hydraulic system is easy and affordable!
The orbital hydraulic motor is a type of hydraulic motor that converts hydraulic pressure into mechanical power. The motor consists of a rotor and stator, both of which are designed to rotate around a central axis. The rotor is driven by the hydraulic fluid, which is forced into the motor through an inlet port. The stator is fixed and serves as a housing for the rotor. As the rotor rotates, it produces torque that is transferred to the output shaft.
There are many different types of orbital hydraulic motors, each with its own unique features and specifications. Some of the most common types include gerotor motors, geroler motors, and radial piston motors. Gerotor motors are known for their high efficiency and low noise levels. Geroler motors are similar to gerotor motors but have a higher torque capacity. Radial piston motors are the most powerful type of orbital hydraulic motor and are used in heavy-duty applications.
Hanjiu technology not only supply the types of hydraulic motors, but also provide a range of services, including repair and maintenance, technical support, and customization. we work closely with customers to understand their specific needs and requirements and provide solutions that meet those needs.
