| Item: | Hydraulic Valve | Model: | DCV100/6 |
|---|---|---|---|
| Spool No.: | 6 Spools | Max Operation Pressure: | 315 Bar |
| Material: | Cast Iron | Spool: | 3 Position Double Acting |
| Return: | Spring Return | Flow: | 100 Liter |
| High Light: | 6 spools Hydraulic section valve,high pressure Hydraulic section valve,100lpm Manual Control Hydraulic Section Valve |
||

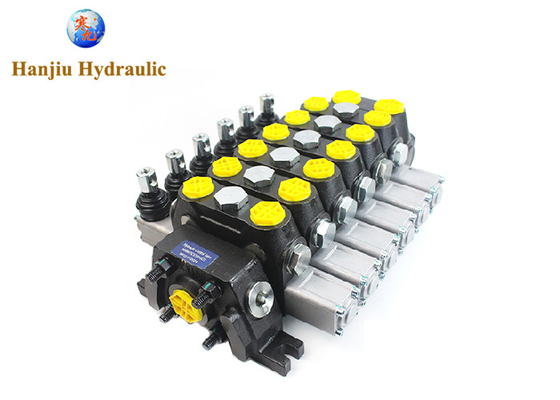

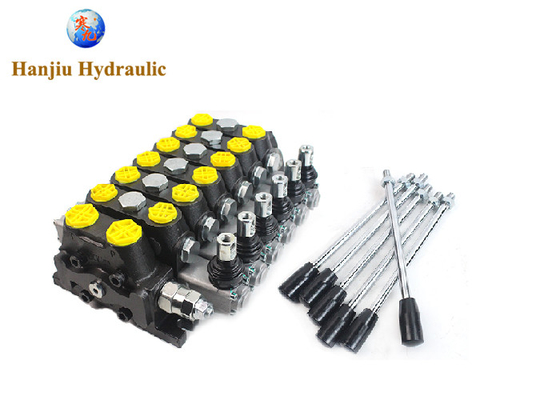

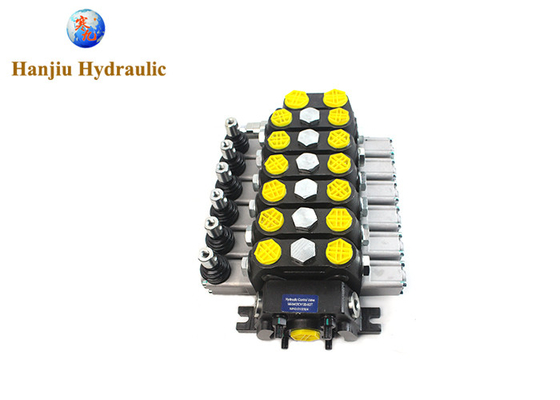

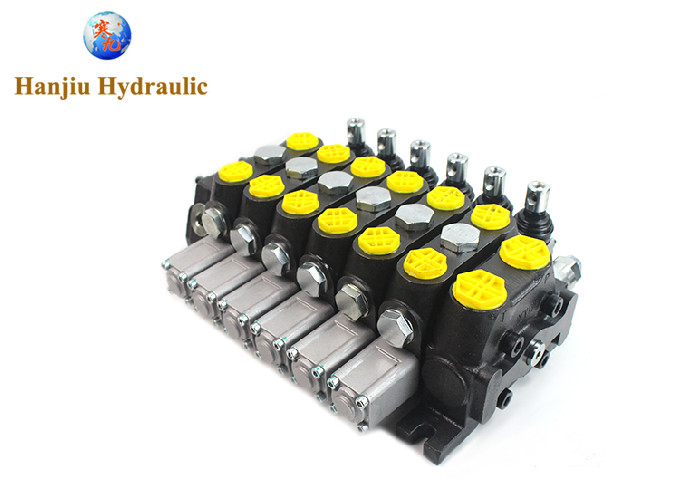

Dcv Series 100lpm Manual Control Hydraulic section valve 6 spools with high pressure
Features:
| flow rate | 100liters |
| number of spools | 6spools,6levers |
| inlet section valve | side inlet, with relief valve |
| relief valve set pressure | 100-315bar |
| inlet port size | G1 |
| spool type | 3 positon, double acting |
| handle side arrangement | standard handle |
| spool cap side arrangement | 3position, spring return |
| working section arrangement | standard type |
| work port size | G3/4 |
| outlet section type | top outlet |
| outlet port size | G1 |
More DCV series Hydraulic Valves:
| DCV20 Series | E:16Mpa F:20Mpa G:25Mpa |
20 | 1-7spools | O,A,Y,Q | Spring return Detent control |
M G UNF |
Electro-hydraulic Pneumatic Cable Manual |
| DCV40 Series | E:16Mpa F:20Mpa G:25Mpa H:31.5Mpa |
40 | 1-8spools | O,A,Y | Spring return Detent control |
M G UNF |
Electro-hydraulic Pneumatic Cable Manual |
| DCV60 Series | E:16Mpa F:20Mpa G:25Mpa H:31.5Mpa |
60 | 1-12spools | O,A,Y | Spring return Detent control |
M G UNF |
Electro-hydraulic Pneumatic Cable Manual |
| DCV100 Series | E:16Mpa F:20Mpa G:25Mpa H:31.5Mpa |
100 | 1-12spools | O,A,Y | Spring return Detent control |
M G UNF |
Electro-hydraulic Pneumatic Cable Manual |
| DCV140 Series | E:16Mpa F:20Mpa G:25Mpa H:31.5Mpa |
140 | 1-12spools | O,A,Y | Spring return Detent control |
M G UNF |
Electro-hydraulic Pneumatic Cable Manual |
| DCV200 Series | E:16Mpa F:20Mpa G:25Mpa H:31.5Mpa |
200 | 1-12spools | O,A,Y | Spring return Detent control |
M G UNF |
Manual |
