80cc Hydraulic Steering Unit with M20 Ports for Tractors and Loaders

Large Image : 80cc Hydraulic Steering Unit with M20 Ports for Tractors and Loaders

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	101S-5T-80

Payment & Shipping Terms:

Minimum Order Quantity:	50 Sets
Price:	Negotiable
Packaging Details:	Carton Packing and finally with a Tray, or Wooden Box
Delivery Time:	10-15 work days
Payment Terms:	L/C,T/T
Supply Ability:	1000000 Sets Per Year

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Unit,steering Valve	Oil Port:	M20
Quality:	Oem Quality	Material:	Cast Iron
Displacement:	80cc	Applications:	Tractors,loaders
Highlight:	80cc hydraulic steering unit , hydraulic steering unit with M20 ports , tractor hydraulic steering unit

OSPC80LS Hydraulic Steering Units with M20 Ports

Product Overview

High-performance hydrostatic steering units designed for cargo and pushback tractors, featuring OSPC80LS orbitrols with M20 ports.

Key Specifications

Product Type: Hydrostatic unit, steering valve
Oil Port: M20
Quality: OEM standard
Material: Cast iron construction
Displacement: 80cc
Applications: Tractors, loaders, and heavy equipment

Technical Parameters

Parameter	Value
Displacement	80cc
Type	101s series
Control Type	Load sensing
Max Pressure	17.5 MPa
Max Back Pressure	2.5 MPa
Port Threads	M20×1.5 O-ring
LS Ports	M12×1.5 O-ring

Performance Specifications

Function Code	1,2,4 \| 1,4
Displacement (mL/r)	50 \| 63 \| 80 \| 100 \| 125 \| 160 \| 200 \| 250 \| 280 \| 315 \| 400
Rated Flow (L/min)	5 \| 6 \| 8 \| 10 \| 12.5 \| 16 \| 20 \| 25 \| 28 \| 32 \| 40
Max Input Pressure (MPa)	17.5
Relief Valve Pressure Settings (MPa)	06,07,08,10,12,14,15,16,17.5
Shock Valve Pressure Settings (MPa)	12,13,14,16,18,20,21,22,23.5

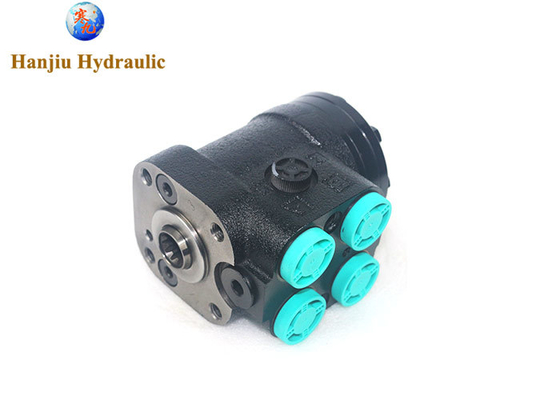

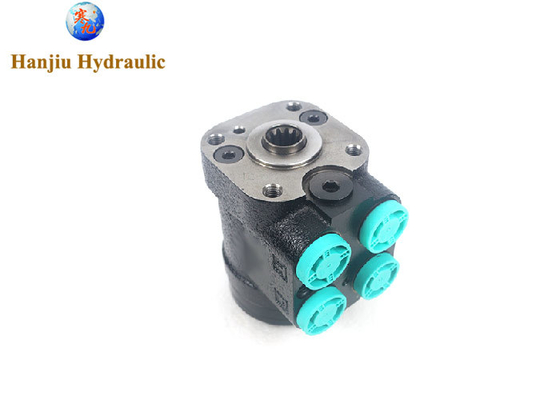

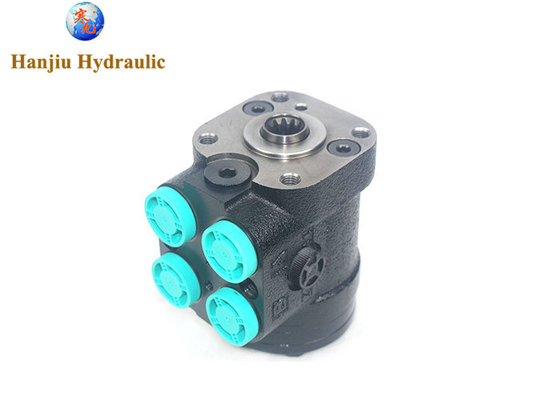

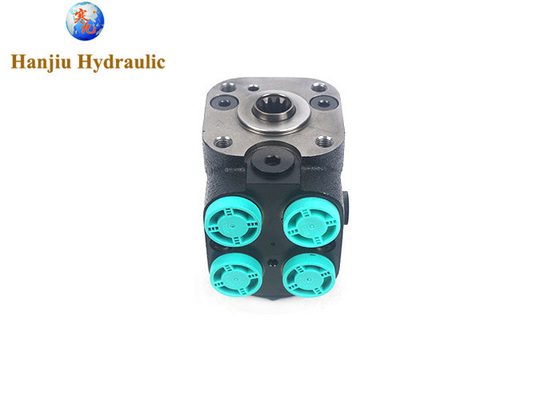

Product Images

Applications

These hydraulic steering units are compatible with various equipment including wheel loaders, backhoe loaders, pushback tractors, and forklifts. Available in multiple series including 109, 101, 101s, and 060 series.

Compatibility

Equivalent to OSPM, OSPB, OSPC, HKU, HKUS, and XCEL-45 models, ensuring broad application across industrial and agricultural machinery.
