Geroller And Gerotor Hydraulic Motor BMR 375-2ADB Replace 151-0718

Name: Geroller And Gerotor Hydraulic Motor BMR 375-2ADB Replace 151-0718
Brand: HANJIU
SKU: BMR 100
Rating: 4.6 (200 reviews)

Large Image : Geroller And Gerotor Hydraulic Motor BMR 375-2ADB Replace 151-0718

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMR 100

Payment & Shipping Terms:

Minimum Order Quantity:	50 Pieces
Price:	Negotiable
Packaging Details:	1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Delivery Time:	10 - 15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	70000 pieces per year

Contact Now

Detailed Product Description

Type:	Hydraulic Oil Motor	Brand:	HANJIU
Model No.:	BMR	Displacement:	100ml/r
More Size:	50ml/r, 80ml/r, 125ml/r, ..., 500ml/r	Feature:	151-0718 OMR
Speed:	110 RPM - 863 RPM	Flow:	40 Lpm - 68 Lpm
High Light:	slow speed high torque motor , omt hydraulic motor

Gerotor and Geroller hydraulic motor BMR 375-2ADB replace 151-0718

BMR375-2ADB is a replacement motor of OMR 151-0718

Specifications:

BMR = OMR 151-
displacement = 375cc
2= 2-Ø13.5Rhomb-flange, pilot Ø82.5×8
A = Shaft Ø25,parallel Key 8x7x32
D = G1/2 Manifold Mount, 4-M8, G1/4
B = Black

Characteristic Features:

Shijiazhuang hanjiu technology strong at replacement motor produce, type , Eaton, Char-lynn, Parker, White, Brevini, TRW, M+S can provide.

MOTOR CROSS REFERENCE TABLE

HANJIU HYDRAULIC	M+S HYDRAULIC	EATON CHAR LYNN		ROSS TRW	WHITE CROSS	PARKER	SAM BREVINI	BOSCH RECROTH
BMM	MM MLHK	J SERIES	OMM				BGM	MGX
BMP/BM1	MP HP	H SERIES	OMP DH	MF MG	WP RS	TC TE TB	BG	MGP GXP
BMR/BM2	MR HR MLHRW,RW	S,T SERIES W SERIES	OMR DS OMEW	MB	WR RE	TF	BR	MGR GMR
BMH/BM4	MH MLHH HW HWF		OMH	ME	RE	TG
BMS/BM5	MS MSY MLHS	2000 SERIES	OMS	ME	RE	TG	HPR	MGS GMS
BMT/BM6	MT MLHT MTM	6000 SERIES	OMT TMT	MJ			HT	MGT,GMT
BMV	MV MLHV	10000 SERIES	OMV					MGV GMV

Specifications:

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

Applications:

Machines for agriculture and forestry
Mining machinery
Construction plant equipment and access platforms
Grass cutting machinery
Special vehicles
Ship's equipment and winches on fishing vessels
Machine tools
Woodworking and sawmill machinery
Plastic and rubber machinery etc.

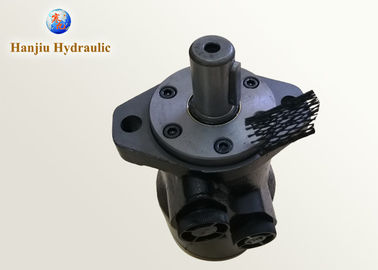

Geroller And Gerotor Hydraulic Motor BMR 375-2ADB Replace 151-0718 0

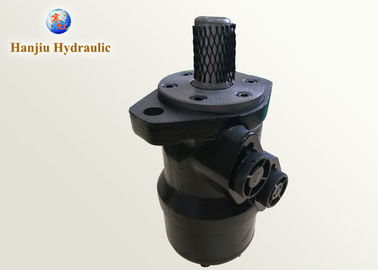

Geroller And Gerotor Hydraulic Motor BMR 375-2ADB Replace 151-0718 1

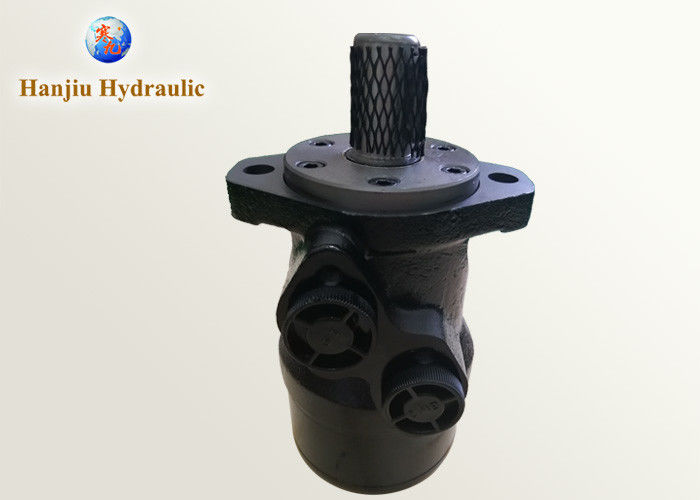

Geroller And Gerotor Hydraulic Motor BMR 375-2ADB Replace 151-0718 2

Geroller And Gerotor Hydraulic Motor BMR 375-2ADB Replace 151-0718 3

Geroller And Gerotor Hydraulic Motor BMR 375-2ADB Replace 151-0718 4
