hydraulic orbit motor MLHS250, 2 bolts flange, 1 inch straight key shaft , side ports

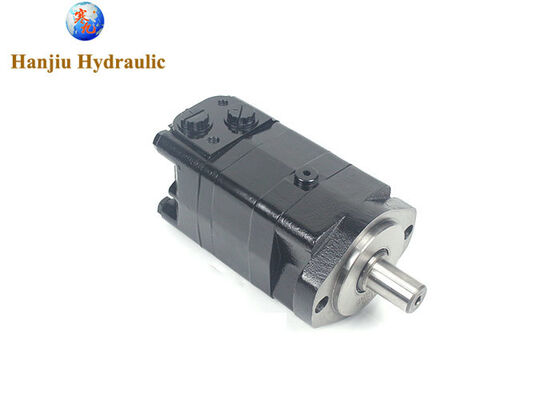

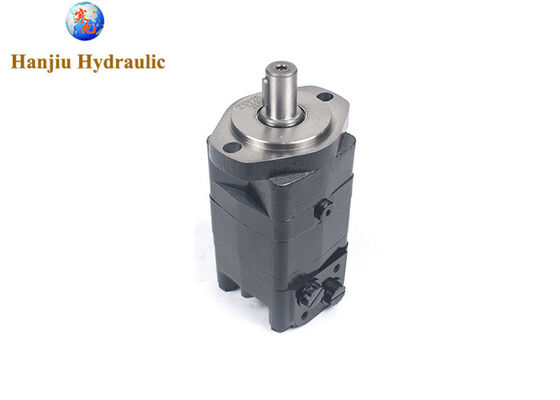

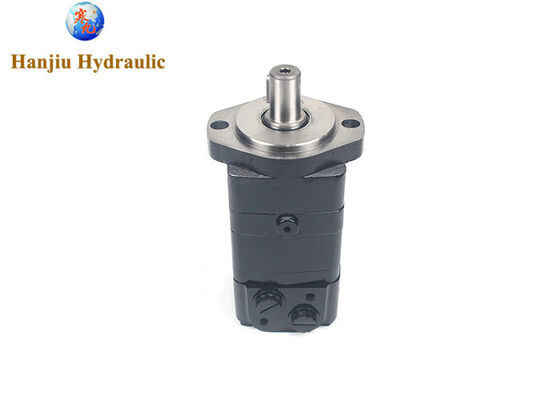

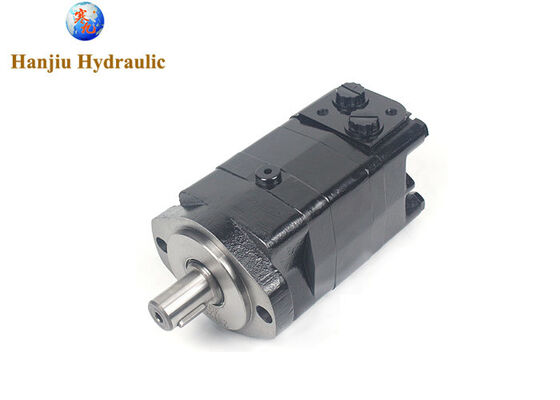

Large Image : hydraulic orbit motor MLHS250, 2 bolts flange, 1 inch straight key shaft , side ports

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-250-E2-D-S-B

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:	Low Speed High Torque Motor	Type:	BMSY Series Motor
Flange:	2 Bolts Flange	Shaft:	25.4mm Straight Key Shaft
Materia:	Cast Iron	Warranty:	1 Year
Highlight:	hydraulic orbit motor 2 bolts flange , low speed high torque hydraulic motor 1 inch shaft , hydraulic motor MLHS250 side ports

hydraulic orbit motor MLHS250, 2 bolts flange, 1 inch straight key shaft , side ports

Product details:

type code BMSY-250-E2-D-S-B

Displacement:250cc

Flange:SAE A -2 holes flange

Shaft:25.4mm key shaft

Ports: side ports

2x7/8-14 UNF, O-ring, 7/16-20 UNF

BMSY Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 400	BMSY 475
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370	475
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185	155
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225	185
Max. torque (N·m)	cont.	225	290	365	485	586	708	880	880	910
Max. torque (N·m)	int.	305	390	480	590	705	860	1000	980	990
Max. output (kW)	cont.	16	18	18	18.1	18.1	18	17	11	9
Max. output (kW)	int.	20	22	23	25	24	23.8	20.2	12	11
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	21	21	20	20	16	14
	int.	27.5	27.5	27.5	26	25	25	24	19	15
	peak	29.5	29.5	29.5	28	27	27	26	21	17.5
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	13.2	14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute

hydraulic orbit motor MLHS250, 2 bolts flange, 1 inch straight key shaft , side ports 0

hydraulic orbit motor MLHS250, 2 bolts flange, 1 inch straight key shaft , side ports 1

Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems

hydraulic orbit motor MLHS250, 2 bolts flange, 1 inch straight key shaft , side ports 2

MLHS series of
MLHS80,MLHS100,MLHS125,MLHS160,MLHS200,MLHS250,MLHS315,MLHS400,MLHS475

We are Manufacturers & Suppliers of ORBIT Hydraulic Motor
These units are most commonly found on Industrial Sweepers, Road Sweepers, Refuse
Lorries,Tractors,Agricultural and Farm Machinery, Combined Harvesters,Grass
Cutting Machines, Construction Machinery, Conveyors, Cement Mixers etc.
