high-torque, low-speed (LSHT) geroler hydraulic motor BMSY-400-E2-D-S-B

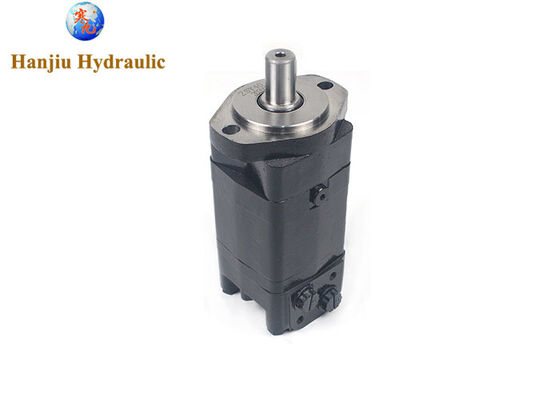

Large Image : high-torque, low-speed (LSHT) geroler hydraulic motor BMSY-400-E2-D-S-B

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-400-E2-D-S-B

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:	Low Speed High Torque Motor	Application:	Sweepers, Platforms
Flange:	2 Bolts Flange	Shaft:	25.4mm Straight Key Shaft
Materia:	Cast Iron	Warranty:	1 Year
Highlight:	LSHT geroler hydraulic motor BMSY-400 , high-torque hydraulic motor with warranty , low-speed hydraulic motor for heavy-duty

high-torque, low-speed (LSHT) geroler hydraulic motor BMSY-400-E2-D-S-B

Product details:

type code BMSY-400-E2-D-S-B

Displacement: 24.04 cubic inches (394 cm³) per revolution.
Maximum Pressure: 2,320 PSI continuous / 2,563 PSI intermittent.
Max Continuous Torque: ~7,786 in-lbs.
Speed: 185 RPM continuous / 225 RPM intermittent.
Flow Rate: 19.8 GPM continuous
Flange:SAE A -2 holes flange
Shaft:25.4mm key shaft
Ports: side ports 2x7/8-14 UNF, O-ring, 7/16-20 UNF

BMSY Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 400	BMSY 475
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370	475
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185	155
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225	185
Max. torque (N·m)	cont.	225	290	365	485	586	708	880	880	910
Max. torque (N·m)	int.	305	390	480	590	705	860	1000	980	990
Max. output (kW)	cont.	16	18	18	18.1	18.1	18	17	11	9
Max. output (kW)	int.	20	22	23	25	24	23.8	20.2	12	11
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	21	21	20	20	16	14
	int.	27.5	27.5	27.5	26	25	25	24	19	15
	peak	29.5	29.5	29.5	28	27	27	26	21	17.5
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	13.2	14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute

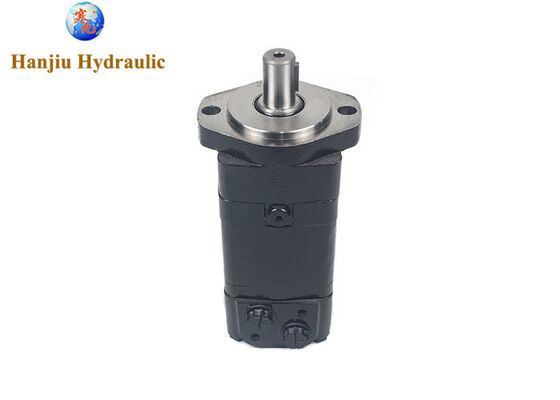

high-torque, low-speed (LSHT) geroler hydraulic motor BMSY-400-E2-D-S-B 0

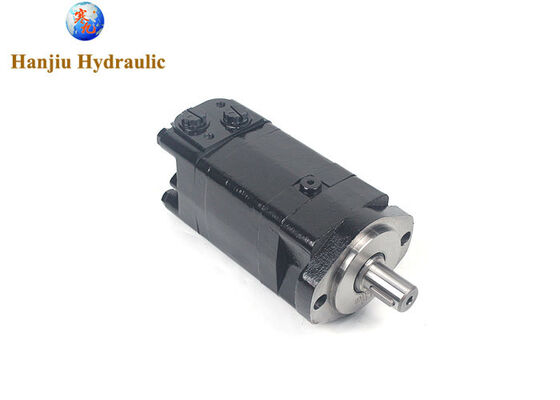

high-torque, low-speed (LSHT) geroler hydraulic motor BMSY-400-E2-D-S-B 1

Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems

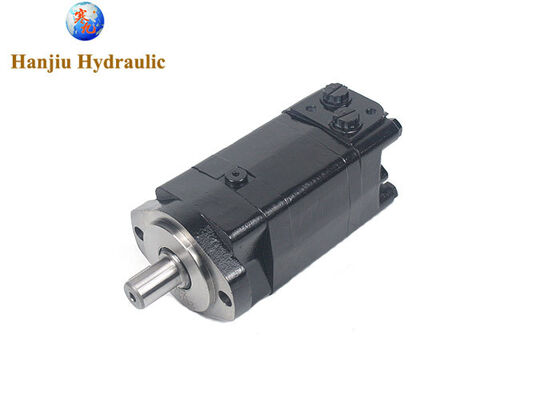

high-torque, low-speed (LSHT) geroler hydraulic motor BMSY-400-E2-D-S-B 2

HANJIU Company is an innovative hydraulic component manufacturer integrating both manufacturing and sales. The company's core products include hydraulic motor orbitals (BMP/BMR/BMS series, etc.), full hydraulic steering units, and directional control valves, with product lines possessing both depth and breadth in the hydraulic field. HANJIU Technology has an independent R&D department, is equipped with advanced manufacturing equipment, and strictly follows internationally recognized manufacturing standards, implementing refined process control on rotors and stators, seals, and flow distribution structures. The company provides 24-hour online technical support, adheres to the principles of honest operation and professional meticulous service, and its products have been exported in bulk to multiple countries and regions worldwide, earning consistent recognition from numerous cooperative clients. If you need a low-speed, smooth, reliable, and cost-effective hydraulic motor orbital, you are welcome to visit our company website to obtain detailed model parameters and professional power matching solutions.
