101-1855-009 Low Speed High Torque Hydraulic Motor Charlynn H Series Medium Motor

101-1855-009 Low Speed High Torque Hydraulic Motor Charlynn H Series Medium Motor
101-1855-009 Low Speed High Torque Hydraulic Motor Charlynn H Series Medium Motor 101-1855-009 Low Speed High Torque Hydraulic Motor Charlynn H Series Medium Motor 101-1855-009 Low Speed High Torque Hydraulic Motor Charlynn H Series Medium Motor 101-1855-009 Low Speed High Torque Hydraulic Motor Charlynn H Series Medium Motor

Large Image :  101-1855-009 Low Speed High Torque Hydraulic Motor Charlynn H Series Medium Motor

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: BMPH / Char Lynn H Series
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: Carton Box
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 80000 Pieces One Year
Detailed Product Description
Features: High Pressure Product Name: BMPH50
Displacement: 50CC Flnge: 4 Flange
Power: Hydraulic Oil Shaft Size: 25.4mm/1inch
High Light:

slow speed high torque motor

,

lsht hydraulic motor



3.5in3/r Low Speed High Torque Hydraulic Motor 101-1855-009

charlynn H series medium motor





Hanjiu Hydraulic Motor BMPH50 = Char-Lynn 101-1855-009 Motor



Product details:

type BMPH
displacement 50cc
flange: 4-3/8-16 Square-flange , pilot Ø 44.4 2.8
shaft Shaft Ø25.4, cylindrical shaft with pin holeφ10.3/0.406"
oil port 1/2-14 NPTF, 7/16-20UNF





Designed for medium duty applications, these motors use industry-proven spool valve technology combined with state-of-the-art gerotors. In addition, a wide variety of mounting flanges, shafts, Ports and valving options provide design flexibility. Direction of shaft rotation and shaft speed can be controlled easily and smoothly throughout the speed range of the motor, and equipment can be driven direct, eliminating costly mechanical components.



Specification:



Type BMPH
36
BMPH
50
BMPH
80
BMPH
100
BMPH
125
BMPH
160
BMPH
200
BMPH
250
BMPH
315
BMPH
400
BMPH
500
Geometric displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque (N·m) cont. 55 100 146 182 236 302 360 460 475 490 430
int. 76 128 186 227 290 370 440 570 555 580 560
peak 96 148 218 264 360 434 540 670 840 840 780
Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 6
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 7
Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 14 12 9.5 7
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5 14 11.5 9
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 13
Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight (kg) 5.6 6 5.7 5.9 6 6.2 6.4 7 6.9 7.4 8

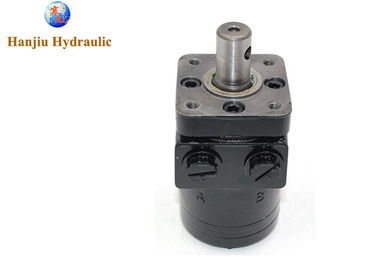

101-1855-009 Low Speed High Torque Hydraulic Motor Charlynn H Series Medium Motor 0

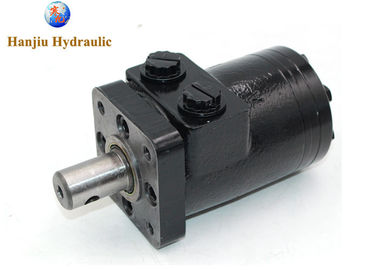

101-1855-009 Low Speed High Torque Hydraulic Motor Charlynn H Series Medium Motor 1

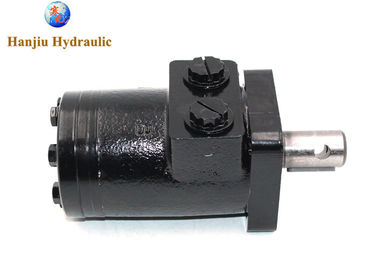

101-1855-009 Low Speed High Torque Hydraulic Motor Charlynn H Series Medium Motor 2







We are professional manufacturer produce Hydraulic Orbital Motors,our motors match and Char Lynn and M+S and Brevini motor series



Please contact me for more details.

Tracy whatsapp/wechat :+8618132660311





Shijiazhuang Hanjiu Technology Co.,Ltd



101-1855-009 Low Speed High Torque Hydraulic Motor Charlynn H Series Medium Motor 3
