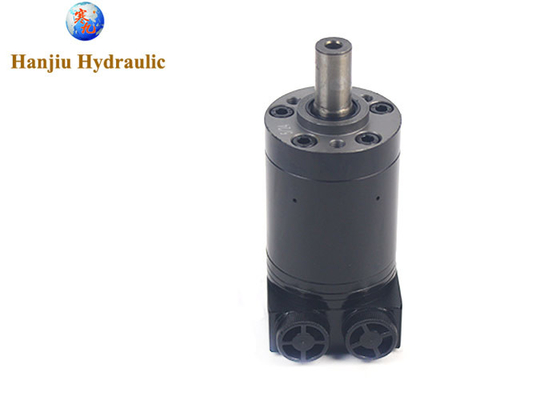

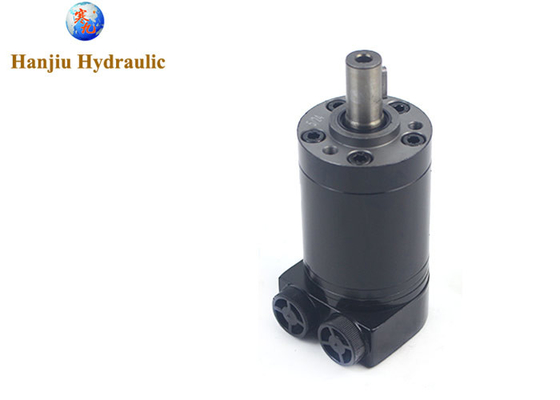

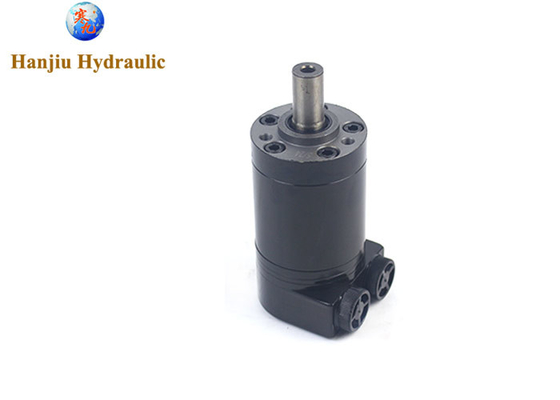

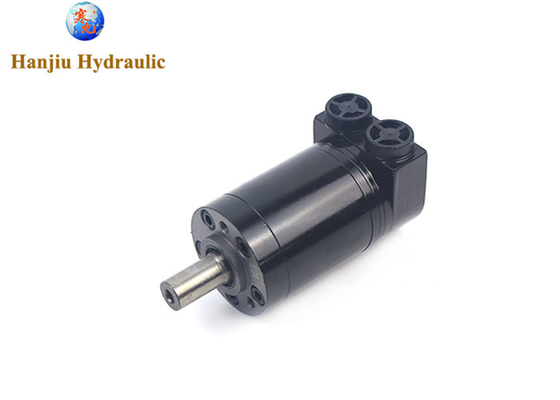

Omm-8 Eaton Orbit Motor Hydromotor Hydraulic Shaft 16mm 8.2cc Side Ports

Omm-8 Eaton Orbit Motor Hydromotor Hydraulic Shaft 16mm 8.2cc Side Ports
Omm-8 Eaton Orbit Motor Hydromotor Hydraulic Shaft 16mm 8.2cc Side Ports Omm-8 Eaton Orbit Motor Hydromotor Hydraulic Shaft 16mm 8.2cc Side Ports Omm-8 Eaton Orbit Motor Hydromotor Hydraulic Shaft 16mm 8.2cc Side Ports Omm-8 Eaton Orbit Motor Hydromotor Hydraulic Shaft 16mm 8.2cc Side Ports

Large Image :  Omm-8 Eaton Orbit Motor Hydromotor Hydraulic Shaft 16mm 8.2cc Side Ports

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: BMM
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: 1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Delivery Time: 10 - 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability: 70000 pieces per year
Detailed Product Description
Type: Hydraulic Small Motor Max Torque: Cont.11n.m/int15n.m
Max Speed: Cont1950rpm/int.2450rpm Displacement: 8,12, 20, 32, 40, 50ML/R
Max Flow: Cont.16l/min Int.20l/min Max.output: Cont.1.8kw/int.2.6kw
High Light:

omm-8 eaton orbit motor

,

shaft 16mm eaton orbit motor

,

side ports motor orbit hydraulic

OMM-8 hydromotor hydraulic motor orbital shaft 16mm 8.2cc side ports

Product details



  • Output volume (cc/rev): 8,2
  • Shaft Ø (mm): 16
  • max r.p.m.: 1950
  • Torque max. (Nm): 11
  • Power max. (kW): 1,8
  • Pressure difference (bar): 100
  • Inlet pressure (bar): 140
  • Volume flow max. (l/min): 16
  • Engine version: with non-return valves
  • Connection: G 3/8"
  • Leakage oil connection: G 1/8"
  • L (mm): 104
  • L1 (mm): 3,5





Hanjiu hydraulic supply OMM series motor are small volume, economical type, which is designed with shaft distribution flow,

which adopt the Gerotor gear set design and provide compact volume, high power and low weight

Chartacteristic fectures:
*Advanced manufacturing devices for the Gerotor gear set,

 which provide small volume, high efficiency and long life.


*Shaft seal can bear high pressure of motor of which can be used in parallel or in series.


*Advanced construction design, high power and low weight.





Main Specifications:



type BMM8 BMM12 BMM20 BMM32 BMM40 BMM50
displacement 8.2 12.9 19.9 31.6 39.8 50.3
Max speed(rpm) rated 1537 1256 814 513 452 358
Cont. 1950 1550 1000 630 500 400
int. 2450 1940 1250 800 630 500
Max Torque
(N*M)
rated 8 13 19 31 37 33
Cont. 11 16 25 40 45 46
int. 15 23 35 57 70 88
peak 21 33 51 64 82 100
Max speed
(kw)
rated 1.3 1.7 1.7 1.7 1.7 1.2
Cont. 1.8 2.4 2.4 2.4 2.2 1.8
int. 2.6 3.2 3.2 3.2 3.2 3.2
Max pressure
drop(MPa)
rated 9 9 9 9 8.5 6
Cont. 10 10 10 10 9 7
int. 14 14 14 14 14 14
peak 20 20 20 16 16 16
Max flow(L/min) rated 14 18 18 18 20 20
Cont. 18 20 20 20 20 20
int. 20 25 25 25 25 25
Weight(kg) 1.9 2 2.1 2.2 2.3 2.4



Type   Max.inlet pressure
BMM8-50 Cont. 17.5
(Mpa) Int. 22.5





HANJIU brand OMM/BMM orbit motors have the same performance with Danfoss OMM, m+s MM motor

100% interchangable for below code



151G0040

151G0041

151G0048

151G0049

151G0047

151G0046



Omm-8 Eaton Orbit Motor Hydromotor Hydraulic Shaft 16mm 8.2cc Side Ports 0





Omm-8 Eaton Orbit Motor Hydromotor Hydraulic Shaft 16mm 8.2cc Side Ports 1





Hanjiu is the largest manufacturer of orbital hydraulic motors in northern China, and its products are sold to more than 30 countries in the world. Compared with super-large companies such as Danfoss, Hanjiu is smaller in size, but they already have ten Several years of production experience. Hanjiu company specializes in designing and producing any type of motor and steering gear that customers need, from large to small, from low displacement to high displacement and so on. And can replace Danfoss, Eaton, M+S series models. Its products are widely used in construction machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishing machinery, military engineering and other fields. The most important point is that as a young technology company, their products are of very high quality, and the quality control is also very strict, which can be compared with the top-ranked big brand factories. The most important thing is that the price of Hanjiu's cycloid hydraulic motors is lower, and the price of their products is very low in the entire market, because Hanjiu always insists on the maximum Profits are ceded to distributors and customers, which are their means of opening up the market. At Hanjiu Technology, you can buy the highest quality products at the best price/performance ratio.





Omm-8 Eaton Orbit Motor Hydromotor Hydraulic Shaft 16mm 8.2cc Side Ports 2
