BMR-400-2-E-D-B BMR Series Hydraulic Motors 400cc 2 Bolt Flange G1/2 Port

Name: BMR-400-2-E-D-B BMR Series Hydraulic Motors 400cc 2 Bolt Flange G1/2 Port
Brand: HANJIU
SKU: BMR-400-2-E-D-B
Rating: 4.9 (166 reviews)

Large Image : BMR-400-2-E-D-B BMR Series Hydraulic Motors 400cc 2 Bolt Flange G1/2 Port

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMR-400-2-E-D-B

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact seller for latest offer
Packaging Details:	Carton, Box, Pallets
Delivery Time:	35 work days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	200000 pieces per year

Contact Now

Detailed Product Description

Product:

Hydraulic Motor

Model No.:

BMR-400-2-E-D-B

Manufacturer:

Hanjiu

Origion:

China

High Light:

400cc BMR series hydraulic motors

400cc bmr hydraulic motor

G1/2 Port bmr hydraulic motor

BMR-400-2-E-D-B BMR series hydraulic motors 400cc 2 bolt flange G1/2 port

Quick review:

Model number: BMR-400-2-E-D-B
Displacement: 400 ml/r
Shaft, Spline shaft
Rotation, CW
Features, replace Eaton Char-lynn 103-

Speed, torque, flow, pressure, weight informations:

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 40	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 400
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

BMR series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.
Characteristic features:
*Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
*Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
*Special design in the driver-linker and prolong operating life
*Special design for distribution system can meet the requirement of low noise of unit.
*Compact volume and easy installation

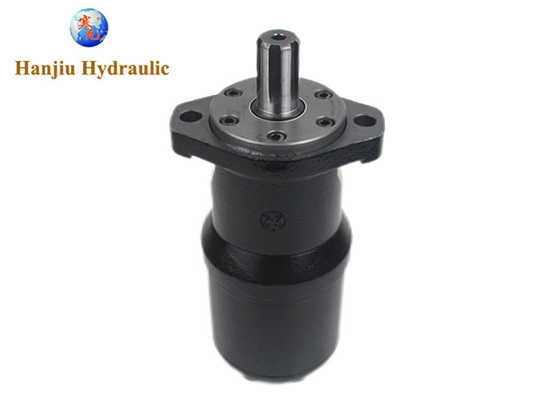

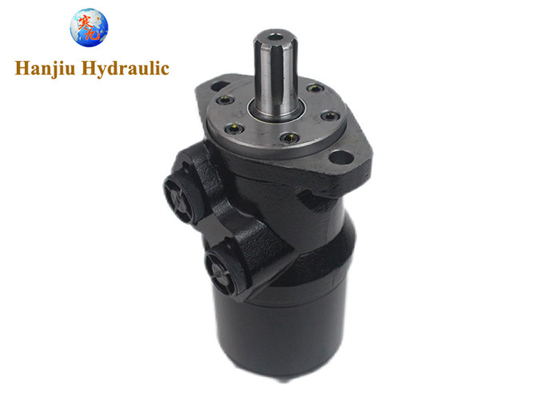

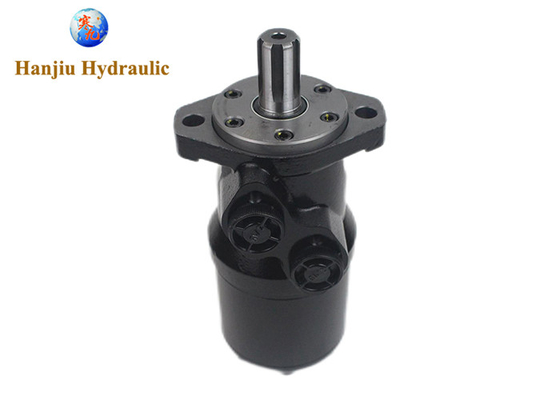

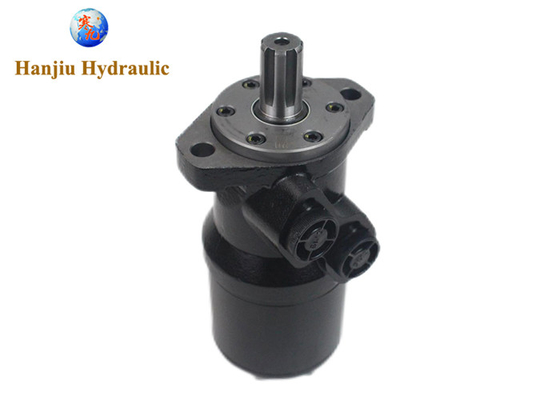

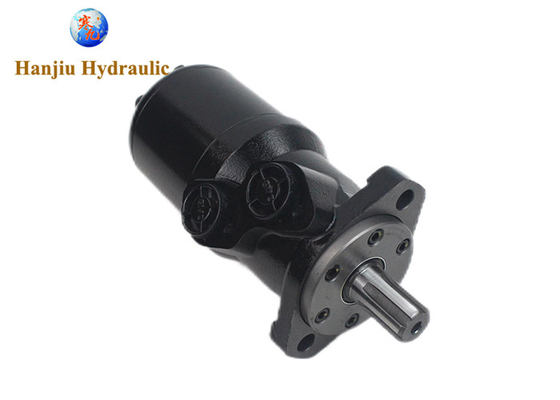

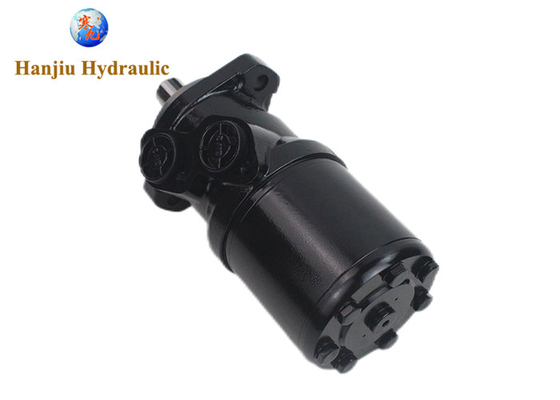

Photo:

BMR-400-2-E-D-B BMR Series Hydraulic Motors 400cc 2 Bolt Flange G1/2 Port 0

BMR-400-2-E-D-B BMR Series Hydraulic Motors 400cc 2 Bolt Flange G1/2 Port 1

Benefits:

• High efficiency

• Powerful compact

package

• Design flexibility

• Extended leak-free

performance

Applications:

• Agricultural augers,

harvesters, seeders

• Car wash brushes

• Food processing

• Railroad maintenance

equipment

• Machine tools

• Conveyors

• Industrial sweepers and

floor polishers

• Saw mill works

• Turf equipment

• Concrete and asphalt

equipment

• Skid steer attachments

More BMR series hydraulic motor we have:
