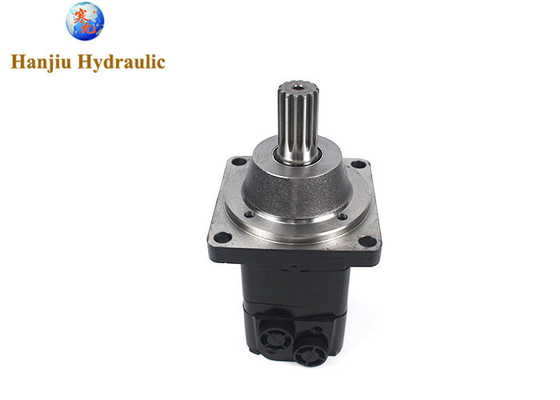

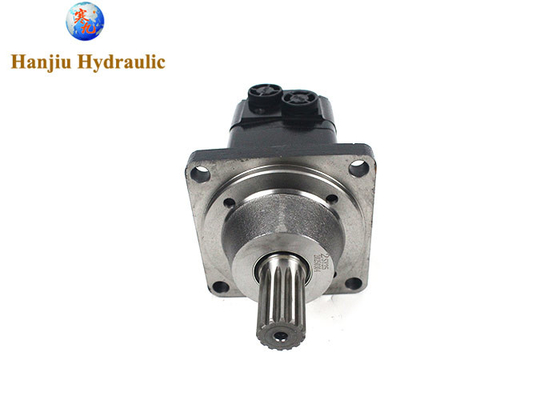

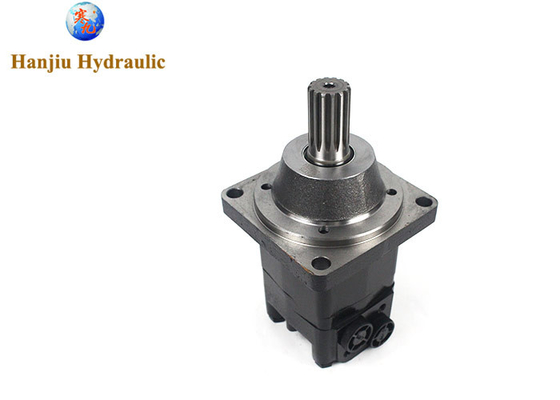

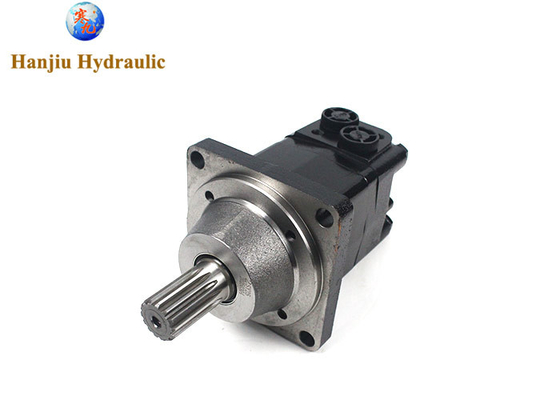

BMSY-250-W-FD-D Hydraulic motor LSHT 15.40 cubic inch displacement Geroler motor
Product details:
Order code:BMSY-250-W-FD-D
Displacement:250cc
Flange:4-Ø13.5 Wheel-flange Ø160,pilot Ø125×8
Shaft:Long Shaft Ø31.75 ,splined key 14-DP12/24
Ports:G1/2 Manifold Mount,2-M10 , G1/4
BMSY introduction:
This motor is a hydraulic disc motor, because it's widely used on kind of drills of Agricultural,Farm, Construction, Industrial and heavy machineries. it has numerous applications at any rolling, lifting, conveying applications. It's also called orbit hydraulic motor, or orbital motor, or Low Speed High Torque type motor, also disc valve hydraulic motors.
Main Specifications:
| Type |
BMSY
80 |
BMSY
100 |
BMSY
125 |
BMSY
160 |
BMSY
200 |
BMSY
250 |
BMSY
315 |
BMSY
375 |
Geometric displacement
(cm3 /rev.) |
80.6 |
100.8 |
125 |
157.2 |
200 |
252 |
314.5 |
370 |
| Max. speed (rpm) |
cont. |
800 |
748 |
600 |
470 |
375 |
300 |
240 |
200 |
| int. |
988 |
900 |
720 |
560 |
450 |
360 |
280 |
240 |
| Max. torque (N·m) |
cont. |
190 |
240 |
310 |
316 |
400 |
450 |
560 |
536 |
| int. |
240 |
300 |
370 |
430 |
466 |
540 |
658 |
645 |
| peak |
260 |
320 |
400 |
472 |
650 |
690 |
740 |
751 |
| Max. output (kW) |
cont. |
15.9 |
18.8 |
19.5 |
15.6 |
15.7 |
14.1 |
14.1 |
11.8 |
| int. |
20.1 |
23.5 |
23.2 |
21.2 |
18.3 |
17 |
18.9 |
17 |
| Max. pressure drop (MPa) |
cont. |
17.5 |
17.5 |
17.5 |
15 |
14 |
12.5 |
12 |
10 |
| int. |
21 |
21 |
21 |
21 |
16 |
16 |
14 |
12 |
| peak |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
20 |
18.5 |
14 |
| Max. flow (L/min) |
cont. |
65 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
| int. |
80 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
| Max. inlet pressure (MPa) |
cont. |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
| int. |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
| Weight (kg) |
9.8 |
10 |
10.3 |
10.7 |
11.1 |
11.6 |
12.3 |
12.6 |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute
In the field of hydraulic transmission, Orbital motor has become the “power heart” of many industrial equipments with its high efficiency and stable performance. As a professional Orbital motor supplier, Hanjiu has gained the favor of customers with its profound technical background and excellent product quality. The following is an analysis of the core advantages of Hanjiu from four dimensions:
1.Deep technical precipitation, innovation-driven development
HANJIU has been focusing on the R&D and production of hydraulic motors for more than 20 years, and its technical team is led by senior experts in the industry. HANJIU adopts advanced cycloid meshing technology, and optimizes the design of rotor and stator teeth, which enhances the efficiency of the motors by more than 15%; in addition, HANJIU's laboratory is equipped with international leading test equipment, which ensures that each product has been tested under extreme working conditions before leaving the factory, and its reliability is much higher than that of the industry standard.
2.Perfect intellectual manufacturing system, quality excellence
The company introduces German precision machining production line, the key parts are molded by CNC machine, with heat treatment vacuum quenching process, to ensure that the hardness of the core parts reaches HRC62±2. The rotor is made of aerospace-grade nitrided steel, with nano-grade coating, which enhances the abrasion resistance by 3 times. Strict quality control system, from raw material procurement to finished product assembly, set up a number of quality control barriers to ensure product qualification rate of 99.9%.
3. Rich product matrix, covering multiple scenarios
Hanjiu hydraulic motors have a wide range of products and strong production capacity. Whether it is construction machinery or agricultural machinery, different production areas can quickly find quality products to meet their needs here, in addition, Hanjiu can also be customized according to customer needs for their products, we strive to meet customer needs, sincere customer service.
4. Sound service network, empowering industrial upgrading
The company set up a technical service center, equipped with a number of senior engineers, to provide 7 × 24 hours response service. The after-sales service system is perfect, actively responding to customers' demands and helping customers to solve problems encountered in the process of use.
From precision processing to attentive service, Hanjiu has become a high-quality Orbital motor supplier in the hydraulic industry with the double-wheel drive of “craftsmanship + innovation”, with customers in more than a dozen countries around the world, and its products are widely acclaimed. In the future, Hanjiu will continue to plough into the field of industrial transmission and inject strong power into the global equipment manufacturing industry with better products and services.
