Hydraulic Motor, BM2-125/160/200/250/315/400, Fast Start, High Torque, Gerotor Motor, key shaft

China Shijiazhuang Hanjiu Technology Co.,Ltd certification
China Shijiazhuang Hanjiu Technology Co.,Ltd certification
Hello, Hanhan, my dear friend! Keep in touch with you by whatsapp.

—— Ricky Naidoo

Hello, Dear Alysa, you looks like a tall and lovely girl. Thank you for your catalogues, I will reply you soon.

—— Bhavin Gandhi

Dear Emily, you are a sweet girl. Keep in touch.

—— Roy Quemada

Dear Shirley, thank you for your patient. I will be back soon.

—— Sam

Dear Simon, sample is received. I will detect it asap.

—— JACK LORSHBOUGH

Dear Albert, good job, we can be good partner.

—— larry timmons

I'm Online Chat Now

Hydraulic Motor, BM2-125/160/200/250/315/400, Fast Start, High Torque, Gerotor Motor, key shaft

Hydraulic Motor, BM2-125/160/200/250/315/400, Fast Start, High Torque, Gerotor Motor, key shaft
Hydraulic Motor, BM2-125/160/200/250/315/400, Fast Start, High Torque, Gerotor Motor, key shaft Hydraulic Motor, BM2-125/160/200/250/315/400, Fast Start, High Torque, Gerotor Motor, key shaft Hydraulic Motor, BM2-125/160/200/250/315/400, Fast Start, High Torque, Gerotor Motor, key shaft Hydraulic Motor, BM2-125/160/200/250/315/400, Fast Start, High Torque, Gerotor Motor, key shaft

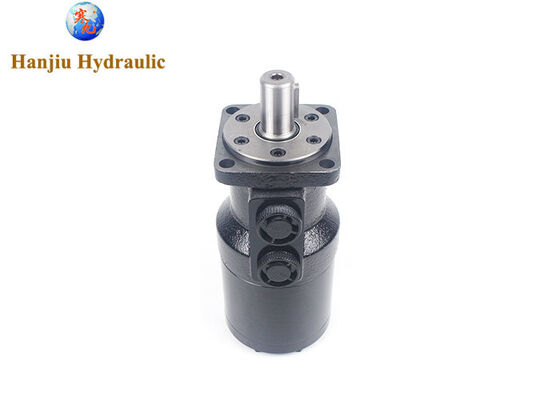

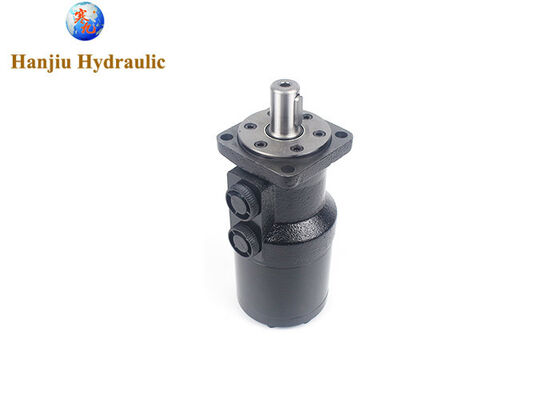

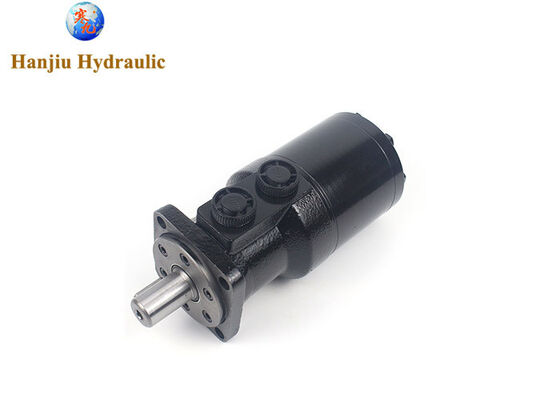

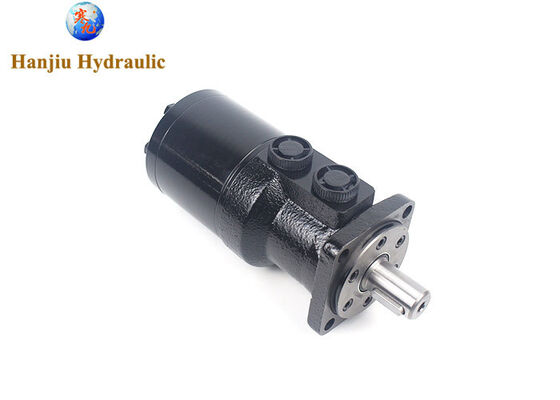

Large Image :  Hydraulic Motor, BM2-125/160/200/250/315/400, Fast Start, High Torque, Gerotor Motor, key shaft

Product Details:
Place of Origin: China
Brand Name: Hanjiu
Certification: CE
Model Number: BM2-400
Payment & Shipping Terms:
Minimum Order Quantity: 50 units
Price: Negotiable
Packaging Details: Carton packing , with a tray or wooden box if needed .
Delivery Time: 10-15 working days
Payment Terms: T/T,Western Union,Paypal .
Supply Ability: 100,000 units / Year
Detailed Product Description
Product Name: Orbit Motors Displacement: 400CC
Applications: Harvesters, Winch, Conveyors Warranty: 1 Year
Material: Cast Iron Performance: High Quality
Highlight:

BM2 hydraulic motor high torque

,

gerotor hydraulic motor key shaft

,

low speed hydraulic motor fast start

Hydraulic Motor, BM2-125/160/200/250/315/400, Fast Start, High Torque, Gerotor Motor with Key Shaft

Type Code: BM2-400-G-0-B-1-B-A
Displacement Options: 400CC
Flange: square mount, four holes
Port Threads:  M22X1.5 PORTS VERTICAL PORTS


Type BM2
36
BM2
50
BM2
80
BM2
100
BM2
125
BM2
160
BM2
200
BM2
250
BM2
315
BM2
400
BM2
500
Geometric displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque (N·m) cont. 55 100 146 182 236 302 360 380 375 360 385
int. 76 128 186 227 290 370 440 460 555 525 560
peak 96 148 218 264 360 434 540 550 650 680 680
Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 5
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 6
Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 11 9 7 6
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 16 14 12
Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight (kg) 5.6 5.6 5.7 5.9 6 6.2 6.4 7 6.9 7.4 8


Hydraulic Motor, BM2-125/160/200/250/315/400, Fast Start, High Torque, Gerotor Motor, key shaft 0
Hydraulic Motor, BM2-125/160/200/250/315/400, Fast Start, High Torque, Gerotor Motor, key shaft 1

other types
Hydraulic Motor, BM2-125/160/200/250/315/400, Fast Start, High Torque, Gerotor Motor, key shaft 2

When a motor orbital omp/BM2 exhibits abnormal noises, oil leakage, or insufficient power, users often face a dilemma: invest in repairs or replace it outright? Drawing on 20 years of hydraulic expertise, HANJIU provides three key criteria for assessment alongside professional after-sales repair services to help you make an economically sound decision.


The primary criterion for determining whether to repair or replace a faulty motor orbital omp is repair cost—the factor users prioritize most. Generally, if a single repair exceeds 50% of the new motor's price and the post-repair lifespan falls below 60% of a new unit's lifespan, replacement is recommended. Conversely, if repair costs are below 30% of a new motor's price and only wear-prone components are damaged, repair offers better value. HANJIU offers precise fault detection services for motor orbital OMPs/BM2, enabling rapid calculation of repair costs and projected service life. This provides users with scientifically grounded decision-making references, preventing unnecessary expenditures.


The second criterion is the condition of core components, which directly determines post-repair stability and service life. Core components of the motor orbital omp include the stator, rotor, and distributor plate. If these core components exhibit severe wear, cracks, or deformation, they are prone to recurring failures after repair, and repair precision is difficult to guarantee. Direct replacement is recommended. If only external accessories or wear parts are damaged while core components remain in good condition, professional repair can restore normal operation. HANJIU possesses a professional fault detection team and advanced testing equipment, enabling precise assessment of core component condition. We also provide genuine core spare parts to ensure stable motor performance post-repair.


The third criterion is spare parts availability and repair cycle, which impacts equipment downtime and operational efficiency. If the motor model is outdated, spare parts are difficult to procure, or the repair cycle is excessively long, it will severely disrupt normal equipment operation. In such cases, replacing the motor is recommended. If spare parts are readily available, repair cycles are short, and costs are manageable, repair should be prioritized. With years of industry expertise, HANJIU maintains ample stock of genuine Motor Orbital OMP/BM2 spare parts and operates a professional after-sales repair team. This enables rapid response to repair requests, minimizes downtime, and reduces user losses to the greatest extent possible.


For maintenance and replacement needs of motor orbital omp units, HANJIU provides comprehensive after-sales support services that demonstrate the company's strength. HANJIU not only offers scientific repair decision guidance but also deploys professional technicians who use genuine parts and standardized repair procedures to ensure quality. For customers requiring replacements, HANJIU motor orbital omp units ensure seamless compatibility and easy installation, accompanied by complimentary installation guidance. Furthermore, HANJIU has established a comprehensive after-sales tracking system. Following repairs or replacements, usage conditions are regularly monitored to promptly address any subsequent issues.


Selecting a motor orbital omp that combines high quality with comprehensive after-sales support is key to reducing operational costs and ensuring work efficiency. As a professional hydraulic equipment manufacturer, HANJIU delivers expert and efficient services—whether in repair decision guidance, fault repair, or new motor replacement—helping users scientifically control costs and minimize downtime losses.
