Hydraulic motor low speed high torque 32.94 cubic inch displacement BMER-2-540-FD-AW

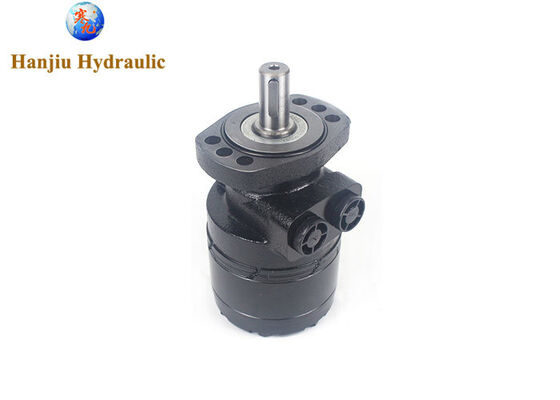

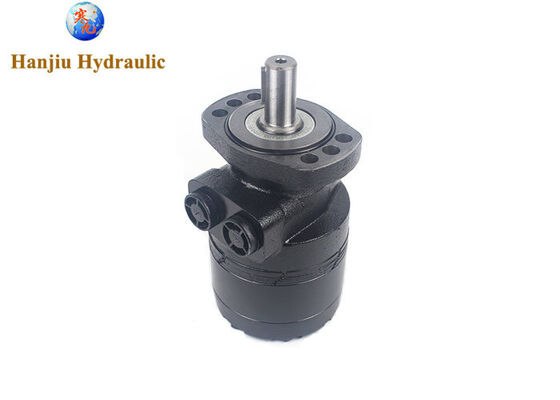

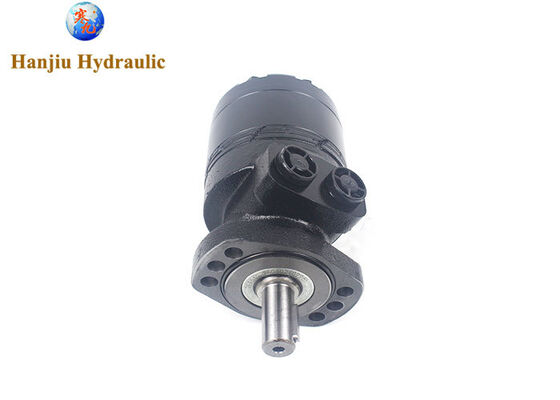

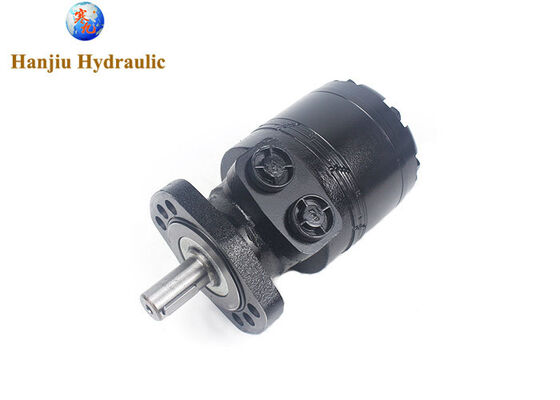

Large Image : Hydraulic motor low speed high torque 32.94 cubic inch displacement BMER-2-540-FD-AW

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMER-2-540-FD-AW

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	160 usd/pc
Packaging Details:	box, pallet
Delivery Time:	35 - 45 work days
Payment Terms:	T/T,Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Product:	Low Speed High Torque Hydraulic Motor	Model No.:	BMER-2-540-FD-AW
Size:	540ml/r	Flange:	Magneto Mount 6-Hole
Shaft:	25MM Key Shaft	Rotation:	CCW
Port:	Offsite Ports	Material:	Cast Iron
Highlight:	low speed high torque hydraulic motor , 32.94 cubic inch hydraulic motor , BMER-2-540-FD-AW hydraulic motor

Hydraulic motor low speed high torque 32.94 cubic inch displacement BMER-2-540-FD-AW

Product details

Product	Low Speed High Torque Hydraulic Motor
Model No.	BMER-2-540-FD-AW
Displacement	540ml/r
Flange	Magneto Mount 6-Hole
Shaft	Cylindrical shaft Ø25 Parallel key 8X7X32
Rotation	CCW
Port	7/8-14UNF

Technical Specifications

Type	BMER 125	BMER 160	BMER 200	BMER 230	BMER 250	BMER 300	BMER 350	BMER 375	BMER 475	BMER 540	BMER 750
Geometric displacement (cm3/rev.)	118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm) cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm) int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m) cont.	325	eca450	530	625	700	810	905	990	1085	980	1050
Max. torque (N•m) int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
Max. torque (N•m) peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW) cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW) int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	10.0
Max. pressure drop (MPa) cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
Max. pressure drop (MPa) int.	24	24	24	24	24	24	24	24	19	17.5	12
Max. pressure drop (MPa) peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min) cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min) int.	60	75	85	85	90	95	95	90	90	90	90

Benefits:
Optimal performance in industrial settings
Durable and long-lasting design
Ensures smooth operation of machinery
Enhances overall efficiency
Whether you need a motor for your manufacturing plant or industrial equipment, the HANJIU TECHNOLOGY BMER-2-540-FD-AW Motor is the perfect choice. Invest in quality and reliability for your operations
