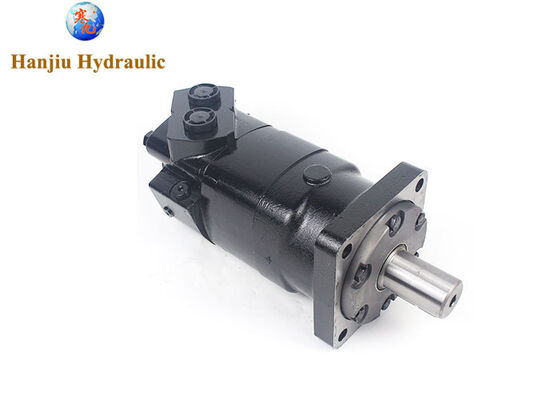

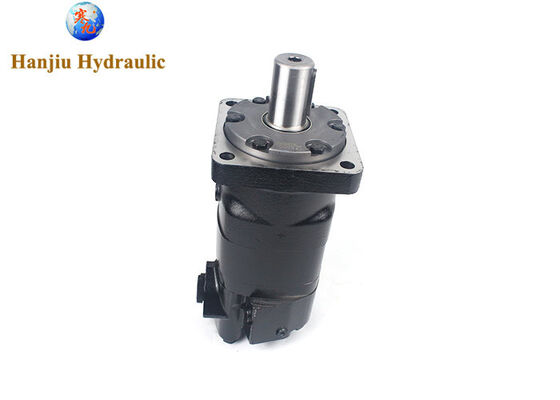

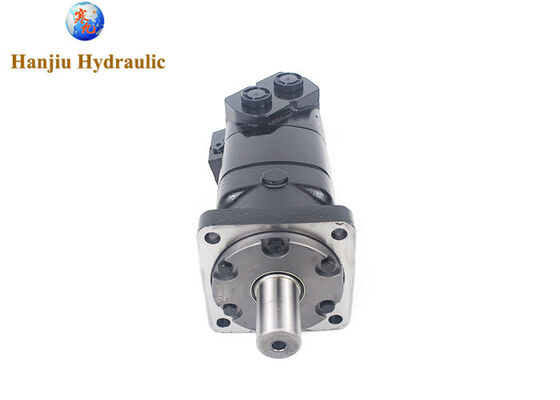

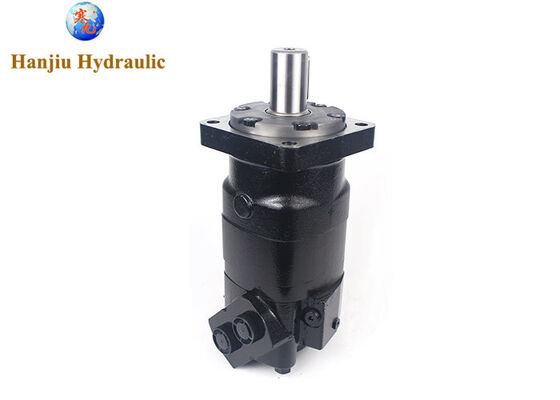

Eaton J6K-490, 620-0035 a low-speed, high-torque hydraulic motor

Large Image : Eaton J6K-490, 620-0035 a low-speed, high-torque hydraulic motor

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	ISO
Model Number:	BMK6

Payment & Shipping Terms:

Minimum Order Quantity:	20 Pieces
Price:	Negotiable
Packaging Details:	1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Delivery Time:	10 - 15 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Payple
Supply Ability:	300000 pieces per year

Contact Now

Detailed Product Description

Type:	Hydraulic Heavy Motor	Model No.:	BMK6-500
Max.torque(N.m):	Cont.1445N.m/int.1880N.m	Max.speed(rpm):	Cont.304rpm/int.455rpm
Max Pressure Drop:	Cont.20Mpa/int.27.5Mpa	Warranty:	1 Year
Highlight:	Eaton J6K-490 hydraulic motor , low-speed high-torque hydraulic motor , 620-0035 hydraulic motor with warranty

Eaton J6K-490, 620-0035 a low-speed, high-torque hydraulic motor

Model number: 620-0035
Replace Char-lynn motor 6000 Series,J6K motor
Displacement: 500CC
Flange: 4-Φ14.2Square-flangeΦ161.9, pilotΦ125×12.5

Shaft: φ40MM

Port:G3/4
Drain port: G1/4
Paint: BLACK

Main Specification

Type		BMK6 200	BMK6 250	BMK6 315	BMK6 400	BMK6 500	BMK6 630	BMK6 800	BMK6 1000
Geometric displacement (cm3 /rev.)		195.6	246.1	311.6	391.3	490.8	623	802.4	981.6
Main speed(rpm)	cont.	765	610	480	382	304	240	186	152
	int.	865	830	690	570	455	360	280	230
Max torque N.M	cont.	565	710	920	1160	1445	1480	1580	1675
	int.	840	1080	1325	1625	1880	1890	1880	1860
Max pressure drop (Mpa)	cont.	20	20	20	20	20	17.5	14	14
	int.	30	30	30	30	27.5	22.5	15.5	14
Weight (kg)		26.3	26.8	27.3	28	28.8	29.6	30.5	32

Eaton J6K-490, 620-0035 a low-speed, high-torque hydraulic motor 0

Eaton J6K-490, 620-0035 a low-speed, high-torque hydraulic motor 1

Eaton J6K-490, 620-0035 a low-speed, high-torque hydraulic motor 2

Key Features and Applications

Performance: Features end flow distribution for high efficiency and low-speed operation.

Durability: Cast iron construction suitable for high-pressure systems, often serving as replacements for White or M+S hydraulic motors.

Common Use Cases: Skid steer loaders, concrete mixers, and general industrial machinery.

Common Models: J6K-490, J6K-625, J6K-800, J6K-985.
