Hydraulic disc valve motor 104-1819-006 low speed high torque gerotor motor

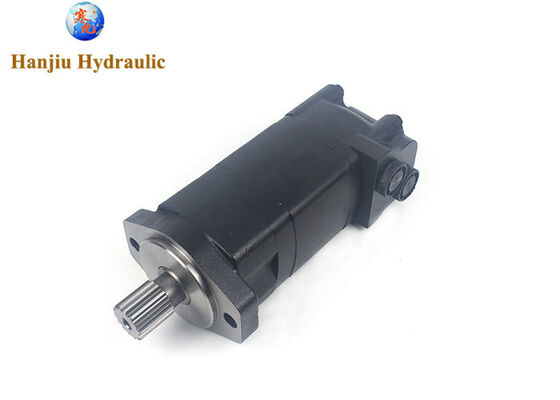

Large Image : Hydraulic disc valve motor 104-1819-006 low speed high torque gerotor motor

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMK2-400

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	90 USD
Packaging Details:	1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Delivery Time:	35 - 45 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Payple
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Type:	Hydraulic Motor	Material:	Cast Iron
Displacement:	400ml/r	Flange:	2 Bolts Standard Type
Fetures:	Flange Rotated 90 Degrees	Warranty:	12 Months
Highlight:	low speed hydraulic disc valve motor , high torque gerotor hydraulic motor , orbit hydraulic motor with warranty

Hydraulic disc valve motor 104-1819-006 low speed high torque gerotor motor

The BMK2-400 is a high-torque, low-speed (HTLS) orbital hydraulic motor, equivalent to the Eaton Char-Lynn 2000 Series--

104-1819-006, typically used in agricultural, construction, and conveyor systems. It features a 400cc displacement, 2-bolts standard flange (E2), and spine shaft

Key Specifications (BMK2-400)/104-1819-006---M02240AC04AA01000100000AAAAAAF

Displacement: 390.8cc
Max Speed (Continuous): Approx. 191rpm
Max Torque (Continuous): Approx. 775Nm
Max Pressure Drop (Continuous): 15.5Mpa
Mounting: 4-Bolt Rhomb Flange (E2).
Shaft: 31.75mm key shaft
Ports: 7/8-14 UNF O-Ring.
Rotation: Reversible.
special Features:Flange rotated 90 degrees

Common Applications:

Agricultural machinery
Material handling equipment.
Sweepers and turf equipment.

Main specifiction:

Main Specifications:
Type		BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2
		65	80	100	125	160	200	250	315	400	475
		65	80	100	125	160	200	250	315	400	475
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Max. speed (rpm)	cont.	835	800	742	576	477	385	308	246	191	153
Max. speed (rpm)	int.	990	980	924	720	713	577	462	365	287	230
Max. torque (N·m)	cont.	185	235	295	385	455	540	660	765	775	845
Max. torque (N·m)	int.	245	345	445	560	570	665	820	885	925	930
Max. pressure drop (MPa)	cont.	20.5	21	21	21	20.5	20.5	20.5	21	15.5	12
	int.	27.5	31	31	31	26	26	26	24	17	14
	peak	31	31	31	31	31	31	31	31	20.5	17
Max. flow (L/min)	cont.	55	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	65	80	95	95	115	115	115	115	115	115
Weight (kg)		9.2	9.4	9.7	10	10.2	10.5	11	11.5	12	12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

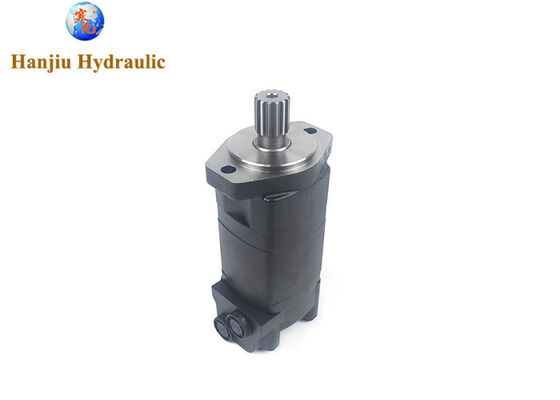

Hydraulic disc valve motor 104-1819-006 low speed high torque gerotor motor 0

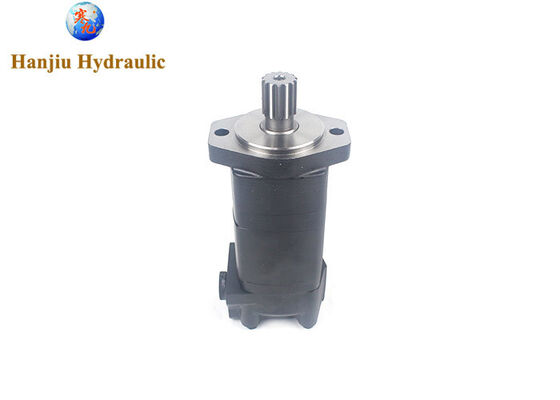

Hydraulic disc valve motor 104-1819-006 low speed high torque gerotor motor 1

More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:

Application:

Swing motor, Brush Cutters & mowers, Harvesting equipment

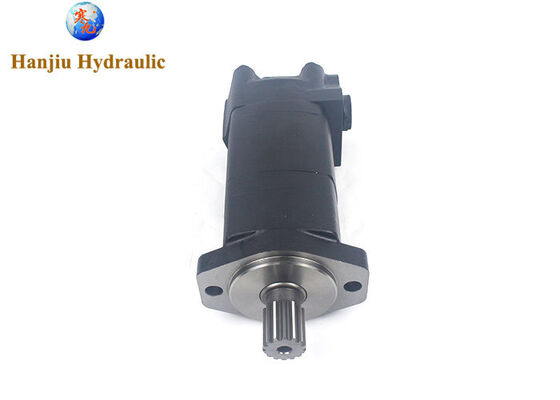

Hydraulic disc valve motor 104-1819-006 low speed high torque gerotor motor 2

orbital motor applications

orbital motor specifications

orbital motor spec sheet

orbital motor suppliers

orbital hydraulic motors

orbital motor timing

orbital motors for sale
