2000 Series Low Speed High Torque Geroler Disc Motor 104-1228-006

Large Image : 2000 Series Low Speed High Torque Geroler Disc Motor 104-1228-006

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMK2-400-E2-G-SU

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	90 USD
Packaging Details:	1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Delivery Time:	35 - 45 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Payple
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Type:	Hydraulic Motor	Material:	Cast Iron
Displacement:	400ml/r	Flange:	2 Bolts Standard Type
Shaft Size:	31.75mm	Warranty:	12 Months
Highlight:	Orbit hydraulic motor high torque , Geroler disc motor low speed , Hydraulic motor 2000 series warranty

2000 Series Low Speed High Torque Geroler Disc Motor 104-1228-006

Brand Name	HANJIU
Matching brand	Eaton Char-Lynn
type code	104-1228-006
Hanjiu code	BMK2-400-E2-G-SU
Displacement	24.03 cu-Inch-rev
Pressure Rating	2250 psi
Speed	191 Rpm
Output Torque	6840 Inch-lb
Flow Rate	20 gpm
Port Type	Staggered
Port Size	No 10-SAE
Mounting Type	2-Bolt, SAE-A
Oil Viscosity	100 - 200 SUS
Oil Temperature	180 deg F
Shaft Size	1-1-4 Inch Dia
Shaft Type	Keyed

Main specifiction:

Main Specifications:
Type		BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2
		65	80	100	125	160	200	250	315	400	475
		65	80	100	125	160	200	250	315	400	475
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Max. speed (rpm)	cont.	835	800	742	576	477	385	308	246	191	153
Max. speed (rpm)	int.	990	980	924	720	713	577	462	365	287	230
Max. torque (N·m)	cont.	185	235	295	385	455	540	660	765	775	845
Max. torque (N·m)	int.	245	345	445	560	570	665	820	885	925	930
Max. pressure drop (MPa)	cont.	20.5	21	21	21	20.5	20.5	20.5	21	15.5	12
	int.	27.5	31	31	31	26	26	26	24	17	14
	peak	31	31	31	31	31	31	31	31	20.5	17
Max. flow (L/min)	cont.	55	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	65	80	95	95	115	115	115	115	115	115
Weight (kg)		9.2	9.4	9.7	10	10.2	10.5	11	11.5	12	12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

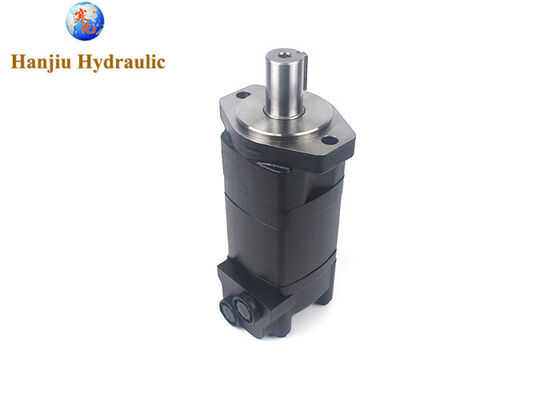

2000 Series Low Speed High Torque Geroler Disc Motor 104-1228-006 0

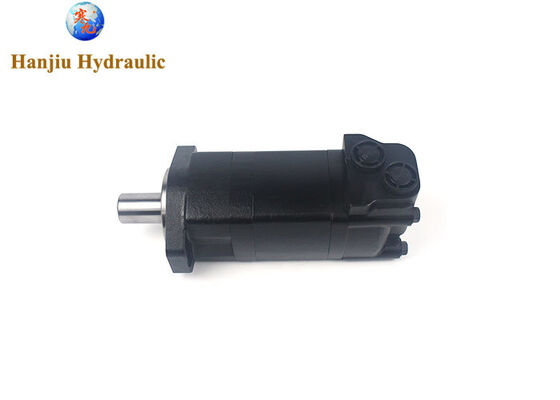

2000 Series Low Speed High Torque Geroler Disc Motor 104-1228-006 1

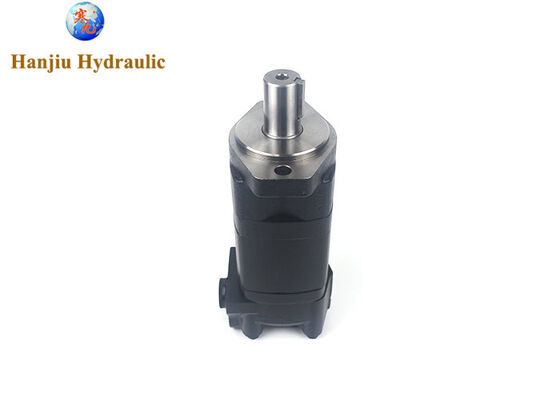

2000 Series Low Speed High Torque Geroler Disc Motor 104-1228-006 2

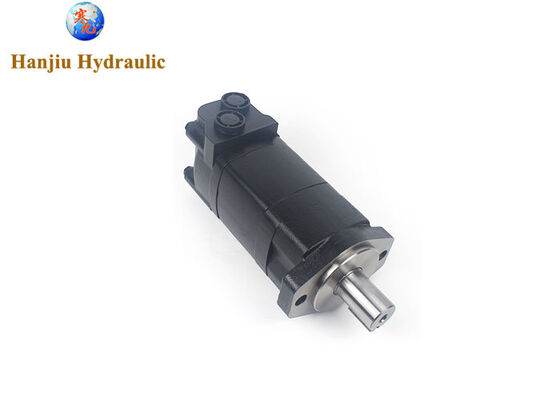

2000 Series Low Speed High Torque Geroler Disc Motor 104-1228-006 3

More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:

104-1022

104-1023

104-1024

104-1025

104-1026

104-1027

104-1028

104-1228

104-1420

Application:

Swing motor, Brush Cutters & mowers, Harvesting equipment

2000 Series Low Speed High Torque Geroler Disc Motor 104-1228-006 4
