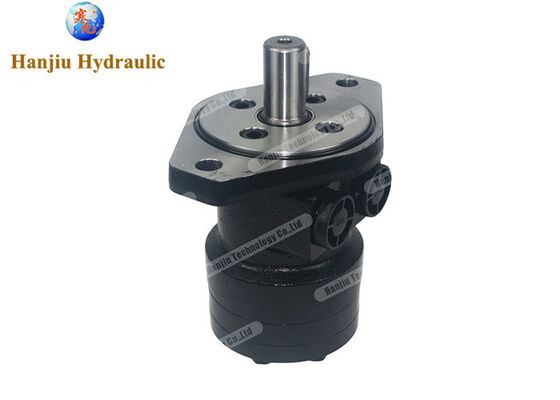

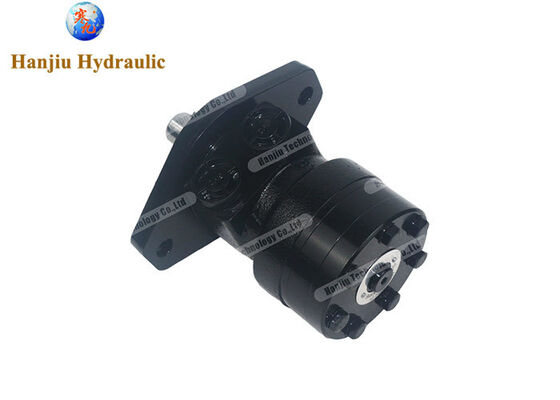

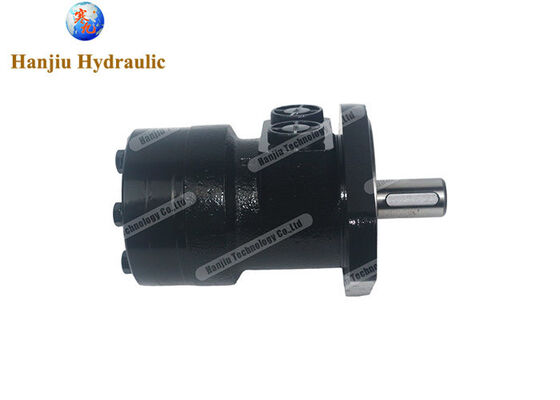

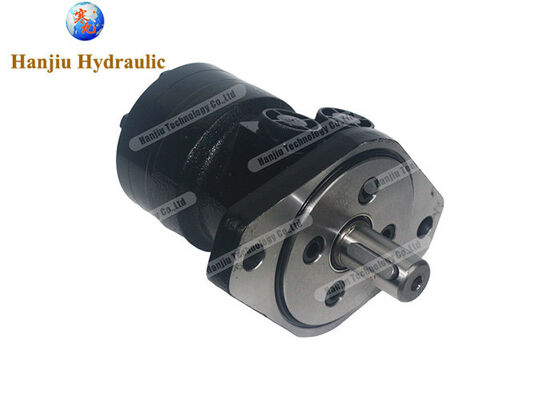

Hydraulic Spool valve Motor BMRS-80-H7-A-G 80cc SAE B 101.6mm Mounting Flange With 25mm Key Shaft

Large Image : Hydraulic Spool valve Motor BMRS-80-H7-A-G 80cc SAE B 101.6mm Mounting Flange With 25mm Key Shaft

Product Details:

Place of Origin:	China
Brand Name:	Hanjiu
Certification:	CE,ISO9001
Model Number:	BMRS-80-H7-A-G

Payment & Shipping Terms:

Minimum Order Quantity:	50 units
Price:	Negotiable
Packaging Details:	Carton packing , with a tray or wooden box if needed .
Delivery Time:	10-15 working days
Payment Terms:	T/T,Western Union,Paypal .
Supply Ability:	100,000 units / Year

Contact Now

Detailed Product Description

Product Name:	Hydraulic Orbital Motors	Displacement:	80CC
Applications:	Agricultural Machine, Lifting Equipment, Wood Splitters	Material:	Cast Iron
Oil Temperature:	Normal-35℃-80℃	Shaft:	Straight Key Shaft 25mm
Highlight:	Hydraulic spool valve motor 80cc , Low speed high torque hydraulic motor , SAE B hydraulic motor 25mm key shaft

Hydraulic Spool valve Motor BMRS-80-H7-A-G 80cc SAE B 101.6mm Mounting Flange With 25mm Key Shaft

Features:

Shaft: 25mm straight Key shaft
Flange: SAE "B" 2-Bolt Standard Mounting,101.6mm
Ports: G1/2
Drain: G1/4
Corrosion-resistant Black Paint

Technical Specifications for BMRS-80-H7-A-G:

Displacement: 4.6 in³/rev (76 cm³/rev)
Max Speed: 750 rpm (cont) / 940 rpm (int)
Max Torque: 195 N.M (cont) / 220 N.M (int)
Max Differential: 17.5MPA (cont) / 20MPA (int)
Max Flow: 60l/min (cont) / 75l/min (int)

Drop-In Replacement for:

Char-Lynn 103- SERIES

Main Specifications:

Technical data for BMRS with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Hydraulic Spool valve Motor BMRS-80-H7-A-G 80cc SAE B 101.6mm Mounting Flange With 25mm Key Shaft 0

Hydraulic Spool valve Motor BMRS-80-H7-A-G 80cc SAE B 101.6mm Mounting Flange With 25mm Key Shaft 1

Hydraulic Spool valve Motor BMRS-80-H7-A-G 80cc SAE B 101.6mm Mounting Flange With 25mm Key Shaft 2

Hydraulic Spool valve Motor BMRS-80-H7-A-G 80cc SAE B 101.6mm Mounting Flange With 25mm Key Shaft 3

HANJIU Technology supply the wide range of hydraulic motors, from OMM, OMP , OMR, OMH ,OMS, OMT, OMV to H Series, S Series, 2K,4K,6K,10K series low speed high torque motors, also TE, TF,TG torquemotors. at the same time, we can also customised hydraulic orbit motors as per customers drawings

if you have inquiry for hydraulic motors, any inquiry for choosing correct motors for your equipments, pls check with Hanjiu technology !

Hydraulic Spool valve Motor BMRS-80-H7-A-G 80cc SAE B 101.6mm Mounting Flange With 25mm Key Shaft 4
