Hydraulic geroler motor BMPH160-H6-K-S, oval mount,1 inch woodruff key shaft with 7/8-14 o-ring ports

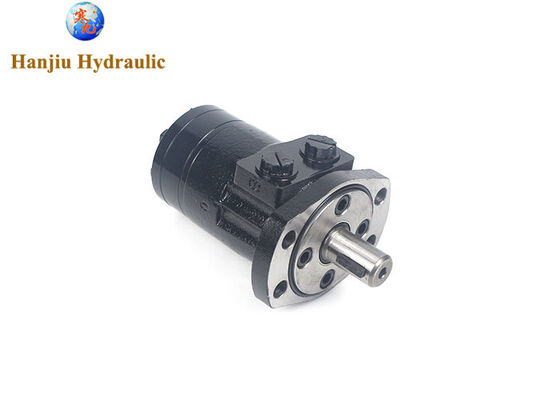

Large Image : Hydraulic geroler motor BMPH160-H6-K-S, oval mount,1 inch woodruff key shaft with 7/8-14 o-ring ports

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMPH-160-H6-K-S

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	Negotiable
Packaging Details:	Carton Box
Supply Ability:	90000 Pieces One Year

Contact Now

Detailed Product Description

Features:	Low Speed High Torque	Product Name:	Hydraulic Geroler Motor
Material:	Cast Iron	Model Number:	BMPH-160-H6-K-S
Displacement:	160CC	Shaft:	25.4 Woodruff Key
Highlight:	Hydraulic geroler motor BMPH160 oval mount , Orbit hydraulic motor woodruff key shaft , Hydraulic motor 7/8-14 o-ring ports

Hydraulic geroler motor BMPH160-H6-K-S, oval mount,1 inch woodruff key shaft with 7/8-14 o-ring ports

► Product details

model type:BMPH160-H6-K-S

displacement:160cc

flange:4-Ø13.5 Rhomb-flange , pilot Ø82.5×2.8

shaft: Shaft Ø25.4, woodruff key Ø25.4×6.35

port threads:7/8-14 O-ring ,7/16-20UNF

► Specification

Type		BMPH 36	BMPH 50	BMPH 80	BMPH 100	BMPH 125	BMPH 160	BMPH 200	BMPH 250	BMPH 315	BMPH 400	BMPH 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

Hydraulic geroler motor BMPH160-H6-K-S, oval mount,1 inch woodruff key shaft with 7/8-14 o-ring ports 0

Hydraulic geroler motor BMPH160-H6-K-S, oval mount,1 inch woodruff key shaft with 7/8-14 o-ring ports 1

OTHER TYPES, YOU CAN CHOOSE FROM THE ORDER CODE

Hydraulic geroler motor BMPH160-H6-K-S, oval mount,1 inch woodruff key shaft with 7/8-14 o-ring ports 2

Compatibility with Other Major Brands

HANJIU BMP series orbital motors also serve as direct replacements for the following internationally recognized brands:

● M+S Hydraulic (Bulgaria) MP and HP series orbital motors

● Eaton Char-Lynn H series low speed high torque motors

● Parker / White Drive TC, TE, and TB series motors

● SAM BG series orbital motors

● Ross TRW MF and MG series hydraulic motors

● Rexroth MGP and GXP series gerotor motors

This broad cross-brand compatibility positions HANJIU as a universal solution provider for orbital motor replacement, reducing inventory complexity for distributors and maintenance facilities while ensuring rapid fulfillment regardless of the original equipment manufacturer.
