MOTOR EATON for HARVESTER DRIVE MOTOR AXE21049 HYDRAULIC ORBIT MOTOR WITH SPEED SENSOR

Large Image : MOTOR EATON for HARVESTER DRIVE MOTOR AXE21049 HYDRAULIC ORBIT MOTOR WITH SPEED SENSOR

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMPH-100

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	Negotiable
Packaging Details:	Carton Box
Supply Ability:	90000 Pieces One Year

Contact Now

Detailed Product Description

Features:	Low Speed High Torque	Product Name:	Hydraulic Geroler Motor
Material:	Cast Iron	Model Number:	BMPH-100
Displacement:	100CC	Shaft:	Straight Key Shaft
Highlight:	Eaton harvester drive hydraulic motor , Orbit motor with speed sensor , Hydraulic orbit motor AXE21049

MOTOR EATON for HARVESTER DRIVE MOTOR AXE21049 HYDRAULIC ORBIT MOTOR WITH SPEED SENSOR

► Product details

model type:AXE21049

displacement:100cc

flange:4-Ø13.5 square-flange , pilot Ø82.5×2.8

shaft: key shaft

port threads:7/8-14 O-ring ,7/16-20UNF

► Specification

Type		BMPH 36	BMPH 50	BMPH 80	BMPH 100	BMPH 125	BMPH 160	BMPH 200	BMPH 250	BMPH 315	BMPH 400	BMPH 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

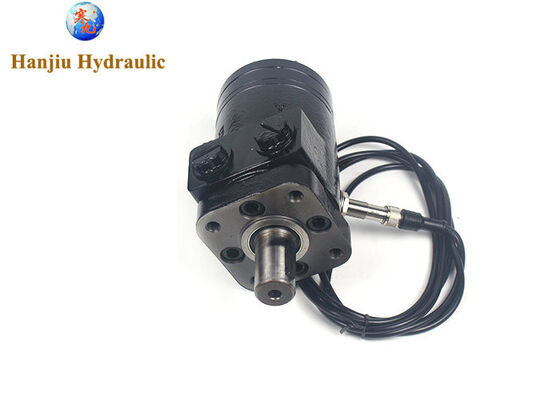

MOTOR EATON for HARVESTER DRIVE MOTOR AXE21049 HYDRAULIC ORBIT MOTOR WITH SPEED SENSOR 0

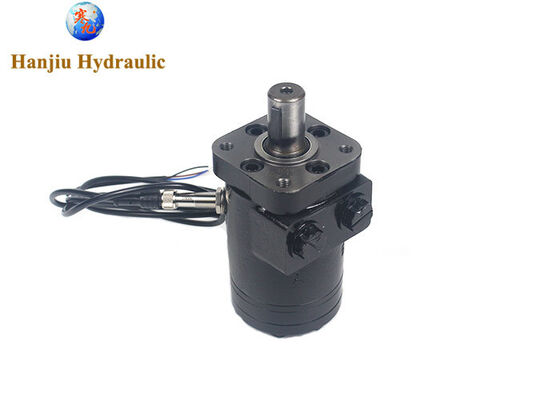

MOTOR EATON for HARVESTER DRIVE MOTOR AXE21049 HYDRAULIC ORBIT MOTOR WITH SPEED SENSOR 1

Other types with speed sensor

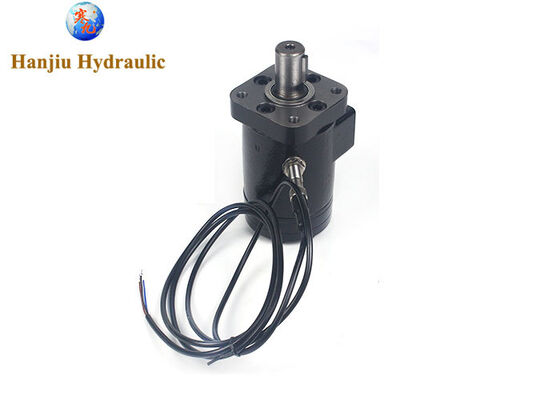

MOTOR EATON for HARVESTER DRIVE MOTOR AXE21049 HYDRAULIC ORBIT MOTOR WITH SPEED SENSOR 2

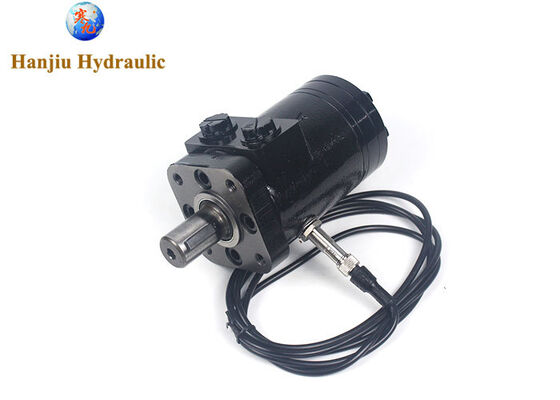

MOTOR EATON for HARVESTER DRIVE MOTOR AXE21049 HYDRAULIC ORBIT MOTOR WITH SPEED SENSOR 3

Agricultural Machinery
Modern agricultural equipment relies extensively on orbital motors for functions including combine harvester reel and auger drives, tractor-mounted implement power such as mowers, tillers, and balers, center-pivot irrigation system propulsion, vineyard and orchard sprayer fan drives, and livestock feed mixer wagon drives. The BMP 80/BMPH80, BMP 100/BMPH100, and BMP 160/BMPH160 models are particularly well-suited to agricultural applications where resistance to contamination, temperature variation, and intermittent heavy loading are essential.
